XikeStor SKS3200M-4GPY2XF Management

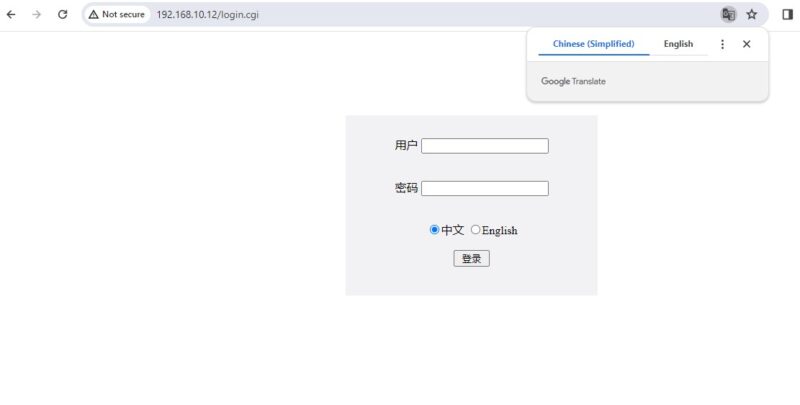

Logging into the switch, the first thing one notices is that the management IP is 192.168.10.12. Once going there, the default is Chinese, but then one can select English to change the language.
![XikeStor SKS3200M 4GPY2XF Login Chinese Simplified](https://www.servethehome.com/wp-content/uploads/2024/05/XikeStor-SKS3200M-4GPY2XF-Login-Chinese-Simplified-800x405.jpg)

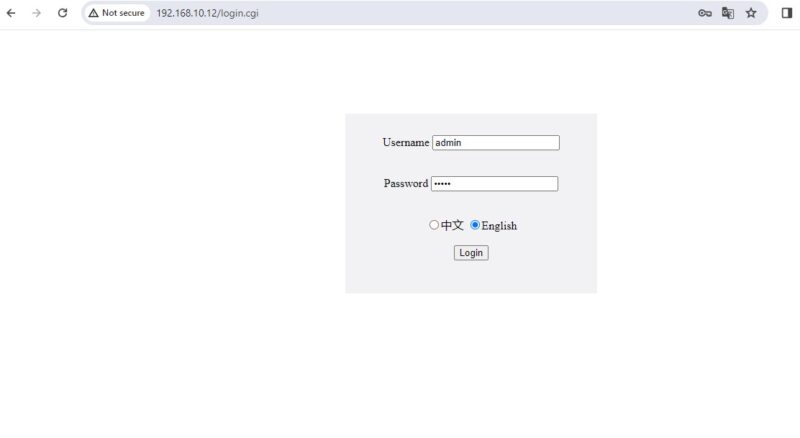

Here, one can use the admin / admin default username and password.
![XikeStor SKS3200M 4GPY2XF Login English Admin Admin](https://www.servethehome.com/wp-content/uploads/2024/05/XikeStor-SKS3200M-4GPY2XF-Login-English-admin-admin-800x438.jpg)

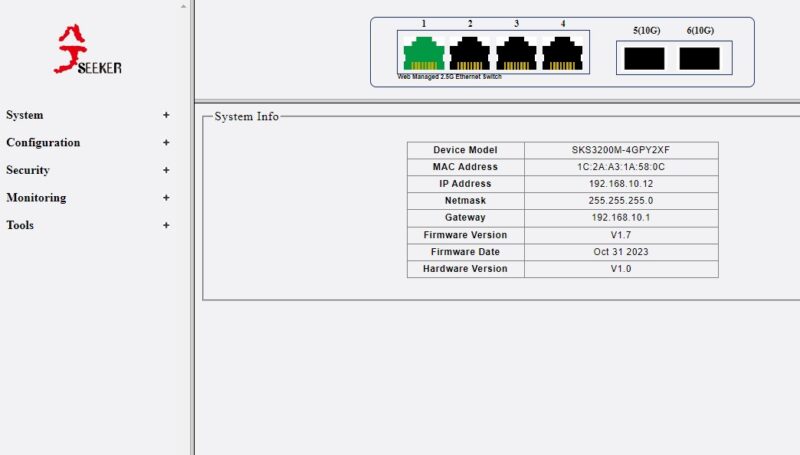

Once in there, we get a web interface similar to what we have seen other times, but with a “Seeker” logo.
![XikeStor SKS3200M 4GPY2XF Admin Dashboard](https://www.servethehome.com/wp-content/uploads/2024/05/XikeStor-SKS3200M-4GPY2XF-admin-dashboard-800x455.jpg)

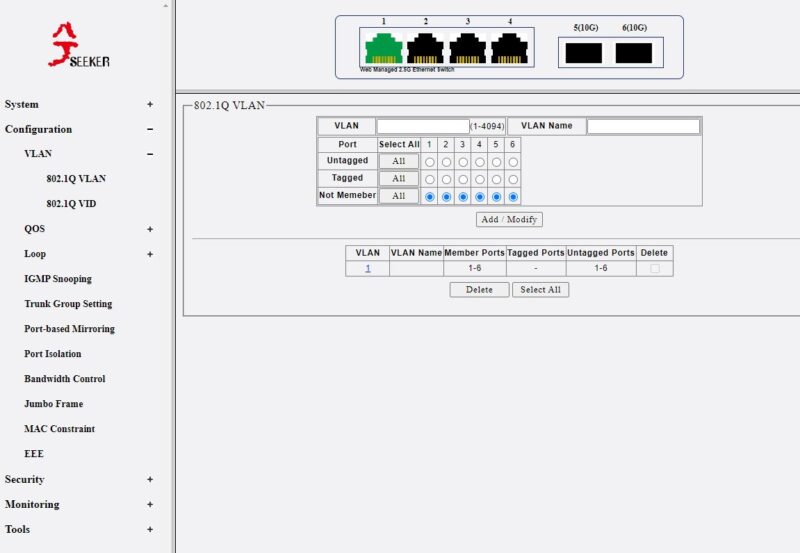

There we can do things like set VLANs.
![XikeStor SKS3200M 4GPY2XF VLAN Config](https://www.servethehome.com/wp-content/uploads/2024/05/XikeStor-SKS3200M-4GPY2XF-VLAN-Config-800x553.jpg)

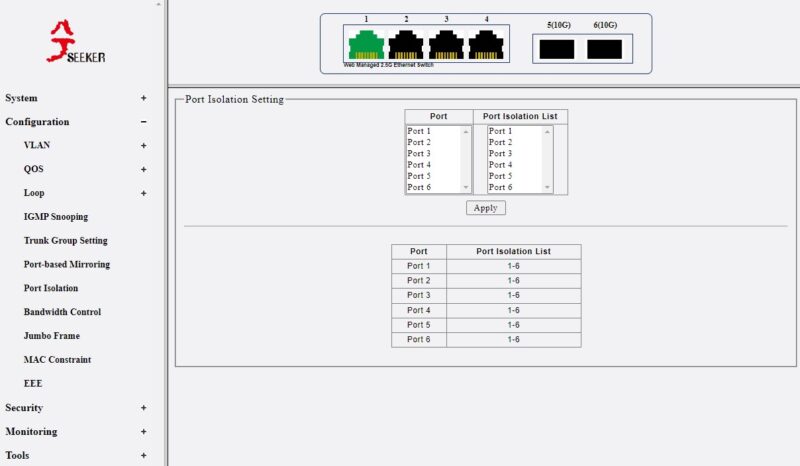

There are basic port isolation features, QoS features, and so forth.
![XikeStor SKS3200M 4GPY2XF Port Isolation](https://www.servethehome.com/wp-content/uploads/2024/05/XikeStor-SKS3200M-4GPY2XF-Port-Isolation-800x466.jpg)

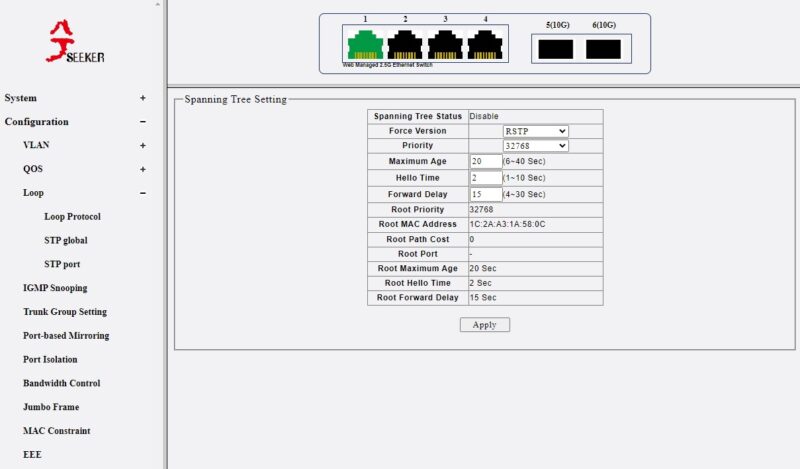

This switch has RSTP as well.
![XikeStor SKS3200M 4GPY2XF RSTP](https://www.servethehome.com/wp-content/uploads/2024/05/XikeStor-SKS3200M-4GPY2XF-RSTP-800x469.jpg)
We did not see strange traffic when we put this on our test network, but this management interface does not feel overly secure.
XikeStor SKS3200M-4GPY2XF Performance

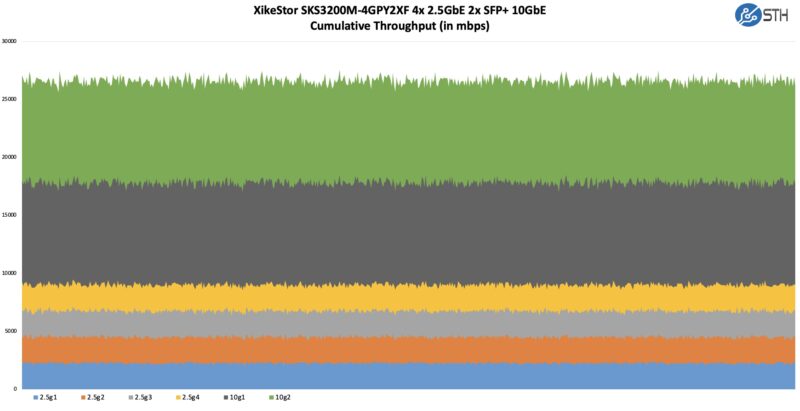

In terms of performance, this seems to be a decent but not top-tier performer.
![XikeStor SKS3200M 4GPY2XF Performance](https://www.servethehome.com/wp-content/uploads/2024/05/XikeStor-SKS3200M-4GPY2XF-Performance-800x411.jpg)
This is very similar to the other Realtek-based 4-port 2.5GbE and 2-port SFP+ switches we have seen.
XikeStor SKS3200M-4GPY2XF Power Consumption

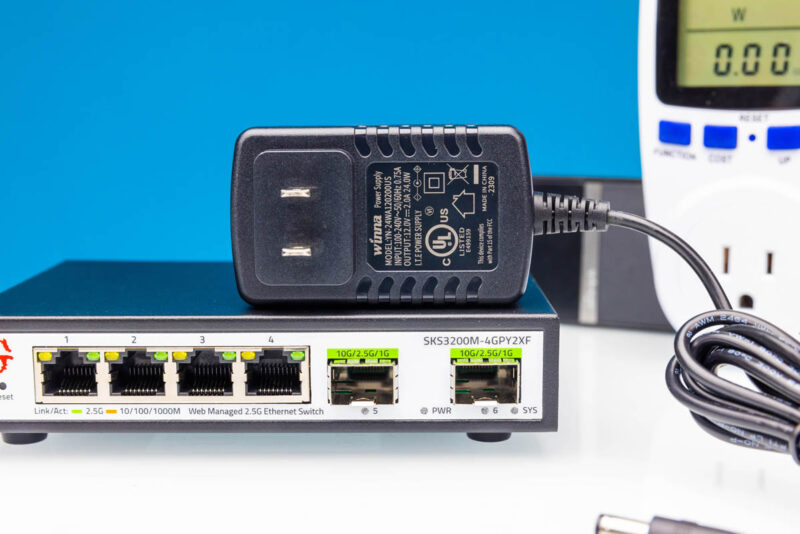

The power adapter feels a bit better than many of the others we have seen. It is a 12V 2A unit so 24W and is made by a company that appears to be “Winna.”
![XikeStor SKS3200M 4GPY2XF 12V 2A Winna Power Supply](https://www.servethehome.com/wp-content/uploads/2024/05/XikeStor-SKS3200M-4GPY2XF-12V-2A-Winna-Power-Supply-800x534.jpg)

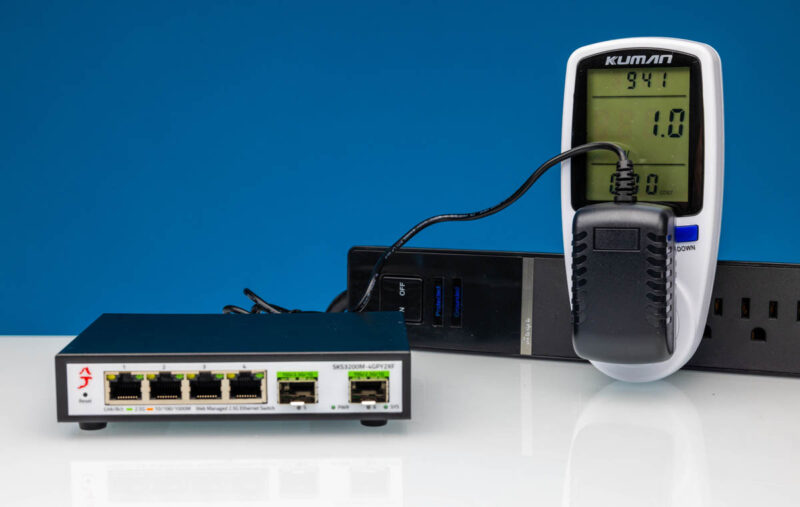

At idle, we got around 1W, which is really good for these switches.
![XikeStor SKS3200M 4GPY2XF Power 1.0W Idle](https://www.servethehome.com/wp-content/uploads/2024/05/XikeStor-SKS3200M-4GPY2XF-Power-1.0W-Idle-800x507.jpg)

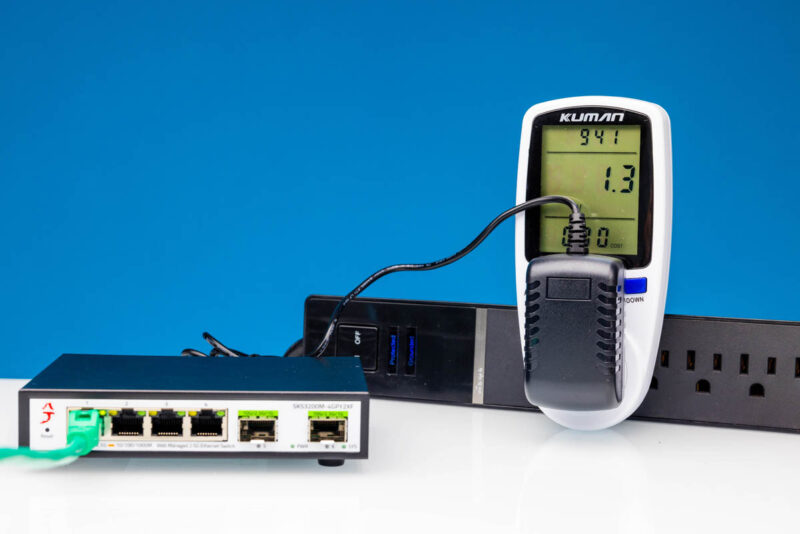

With a single 2.5GbE port plugged in, we added 0.3W for a total of 1.3W. That is a smaller delta than we have seen on some of these switches.
![XikeStor SKS3200M 4GPY2XF Power 1.3W With 2.5GbE](https://www.servethehome.com/wp-content/uploads/2024/05/XikeStor-SKS3200M-4GPY2XF-Power-1.3W-with-2.5GbE-800x534.jpg)

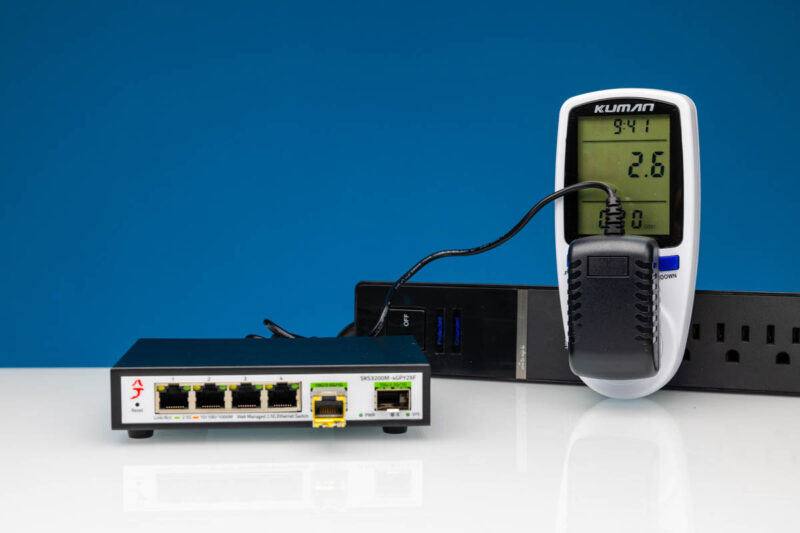

We used a 10Gbase-T SFP+ pluggable to add a good amount of power consumption in a SFP+ port and we got 2.6W for 1.6W over our baseline which is about what we usually see with the adapter.
![XikeStor SKS3200M 4GPY2XF Power 2.6W 10Gbase T Adapter](https://www.servethehome.com/wp-content/uploads/2024/05/XikeStor-SKS3200M-4GPY2XF-Power-2.6W-10Gbase-T-Adapter-800x533.jpg)
Overall, this is a very low-power switch. Adding management does not seem to have increased power consumption
Final Words
Cutting to the big question, this is a bit of a premium over the cheapest 4-port 2.5GbE and 2-port SFP+ switches that we have reviewed as part of our series. At $59 when we purchased the switch, it was a bit more expensive, but there are sometimes coupons and promotions.
![XikeStor SKS3200M 4GPY2XF Internal Ports 1](https://www.servethehome.com/wp-content/uploads/2024/05/XikeStor-SKS3200M-4GPY2XF-Internal-Ports-1-800x507.jpg)
While it is more expensive, getting a slightly better power supply that seems to be lowering the total power consumption while also adding management functions is good. The management interface is not beautiful and defaults to Chinese instead of English on a switch sold on Amazon, so it does not inspire confidence. Still, we did not find anything strange during testing, so we have nothing to back up that feeling. It was strange because, from a hardware side, it was better than we probably expected, but the management just felt like a few changes from being a non-issue.
![XikeStor SKS3200M 4GPY2XF Front](https://www.servethehome.com/wp-content/uploads/2024/05/XikeStor-SKS3200M-4GPY2XF-Front-800x460.jpg)
This switch worked well, was inexpensive, and sipped power. That is what a lot of folks are looking for in a device like this.
Where to Buy
We purchased our unit on Amazon. Here is the affiliate link for this model.
Ultimate Fanless 2.5GbE Switch Buyer’s Guide 2024
You may have seen that we published the Ultimate Cheap Fanless 2.5GbE Switch Buyer’s Guide now with around 60 switches. We also recently published our Mega Round-up 2024 edition, in which we tested 21 new switches, including this one.
We decided to do the round-up first and will be filling in with reviews that we had not published at that point, including this one. We are trying to keep everything in a single resource for folks there.
You can check the forum for how to use one of the hidden factory menus to disable Chinese language support, making it default to English instead.
