TRENDnet TL2-F7120 Management
To access the management interface the IP is 192.168.10.200 and the default password is admin/ admin.
![TRENDnet TL F7120 Web Management First Logon](https://www.servethehome.com/wp-content/uploads/2024/07/TRENDnet-TL-F7120-Web-Management-First-Logon-1-800x402.jpg)

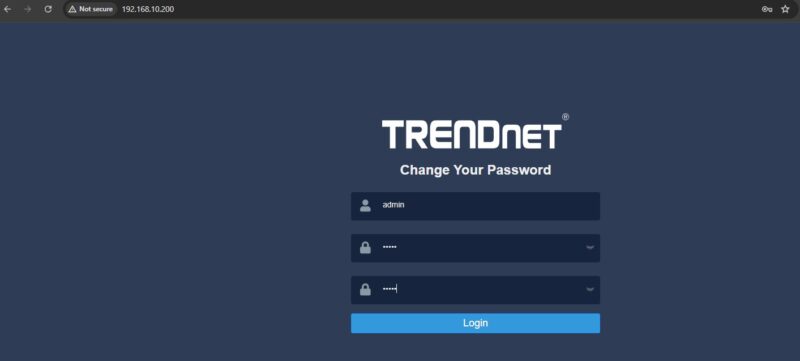

Upon first logging-in, there is a prompt to change your password.
![TRENDnet TL F7120 Web Management New Password](https://www.servethehome.com/wp-content/uploads/2024/07/TRENDnet-TL-F7120-Web-Management-New-Password-800x361.jpg)

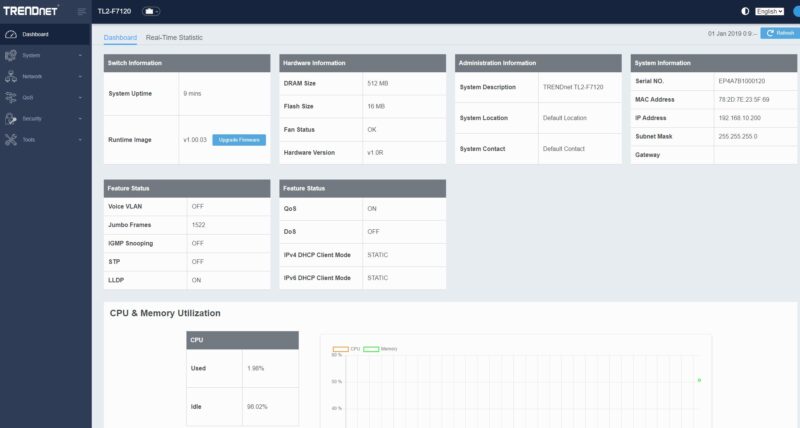

Once you are in, there is a management dashboard which is reasonably responsive.
![TRENDnet TL F7120 Web Management Dashboard](https://www.servethehome.com/wp-content/uploads/2024/07/TRENDnet-TL-F7120-Web-Management-Dashboard-800x428.jpg)

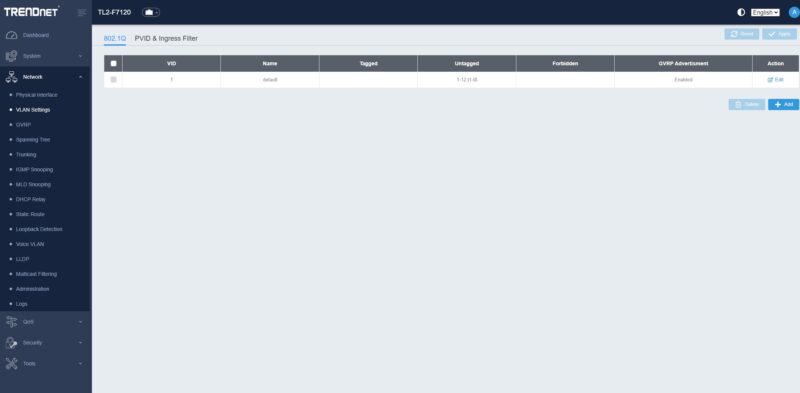

In the management interfaces one can set VLANs.
![TRENDnet TL F7120 Web Management VLAN](https://www.servethehome.com/wp-content/uploads/2024/07/TRENDnet-TL-F7120-Web-Management-VLAN-800x393.jpg)
There are SNMP options.
![TRENDnet TL F7120 Web Management SNMP](https://www.servethehome.com/wp-content/uploads/2024/07/TRENDnet-TL-F7120-Web-Management-SNMP-800x362.jpg)

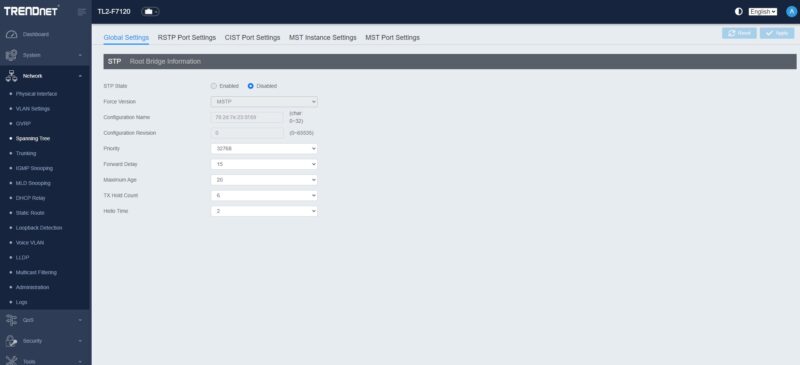

Spanning tree is covered.
![TRENDnet TL F7120 Web Management STP](https://www.servethehome.com/wp-content/uploads/2024/07/TRENDnet-TL-F7120-Web-Management-STP-800x365.jpg)

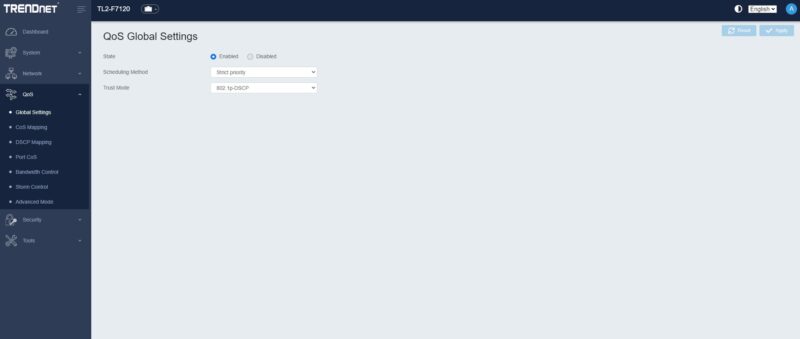

There are some basic QoS settings.
![TRENDnet TL F7120 Web Management QoS](https://www.servethehome.com/wp-content/uploads/2024/07/TRENDnet-TL-F7120-Web-Management-QoS-800x339.jpg)

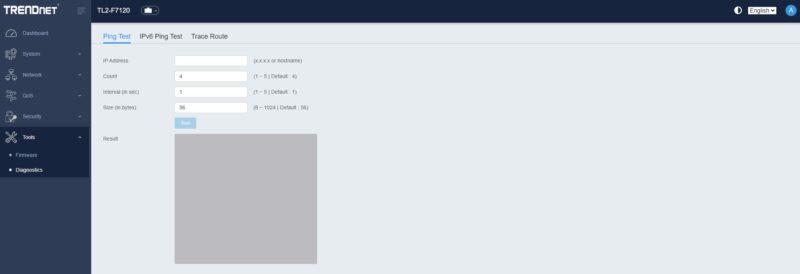

A nice feature is that there is also a ping test (IPv4 and IPv6) and a trace route tool.
![TRENDnet TL F7120 Web Management Diagnostics](https://www.servethehome.com/wp-content/uploads/2024/07/TRENDnet-TL-F7120-Web-Management-Diagnostics-800x274.jpg)

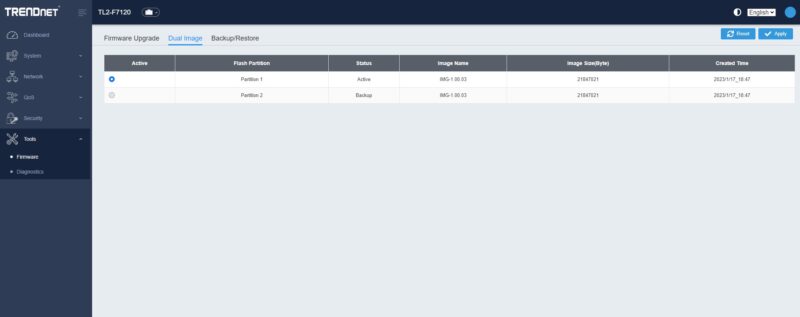

The switch also has dual firmware images like higher-end switches. TRENDnet also updates firmware on its website. A firmware update was released in July 2024 just after we finished testing this switch.
![TRENDnet TL F7120 Web Management Dual Firmware Image](https://www.servethehome.com/wp-content/uploads/2024/07/TRENDnet-TL-F7120-Web-Management-Dual-Firmware-Image-800x317.jpg)
Next, let us get to the performance.
TRENDnet TL2-F7120 Performance

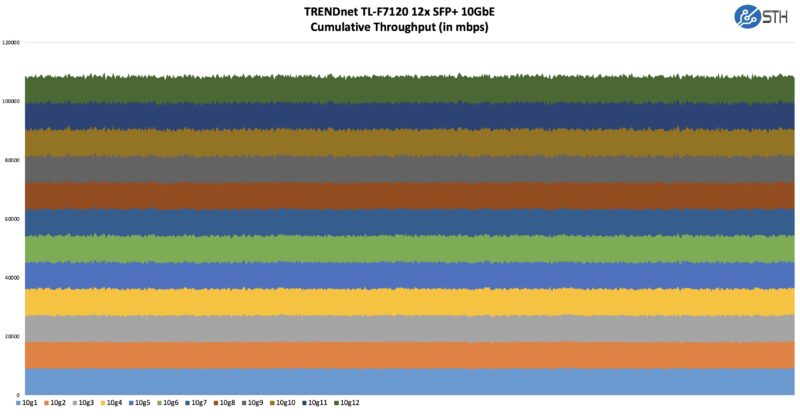

Here is the throughput chart for the switch.
![TRENDnet TL F7120 Performance](https://www.servethehome.com/wp-content/uploads/2024/07/TRENDnet-TL-F7120-Performance-800x418.jpg)
Overall, we got fairly good throughput and decent consistency even when hammering the switch.
TRENDnet TL2-F7120 Power Consumption
We would expect this switch to sip power just because it is a lower port count SFP+ switch.
![TRENDnet TL F7120 Internal Power Supply](https://www.servethehome.com/wp-content/uploads/2024/07/TRENDnet-TL-F7120-Internal-Power-Supply-800x534.jpg)
At idle, we saw 9.0W which is higher than many of the lower-end 2.5GbE/ 10GbE switches we test but also lower than many of the MikroTik switches. Adding a SFP+ to 10Gbase-T adapter, one of the more power-hungry pluggables added 2W for 11W.
Final Words
Reviewing this switch it certainly felt like a step below the MikroTik switches that we have reviewed previously (and have two reviews in progress right now.) At the same time, compared to the ultra-low-cost switches we have found on AliExpress and Amazon, this feels like a notable jump in quality along with the jump in price.

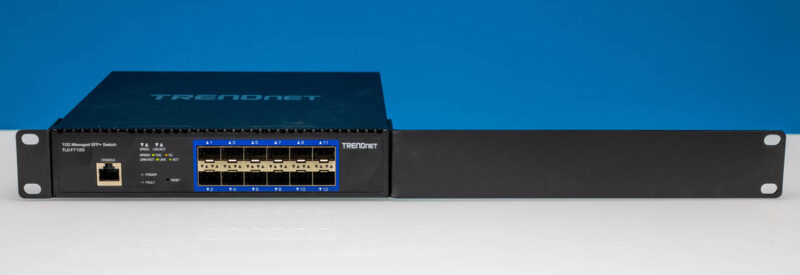

![TRENDnet TL F7120 With Rack Ears](https://www.servethehome.com/wp-content/uploads/2024/07/TRENDnet-TL-F7120-With-Rack-Ears-800x275.jpg)
Still, for a half-width switch that is relatively inexpensive, especially when on sale, it is hard not to appreciate the TRENDnet TL2-FL120.
