TRENDnet TEG-3102WS Management

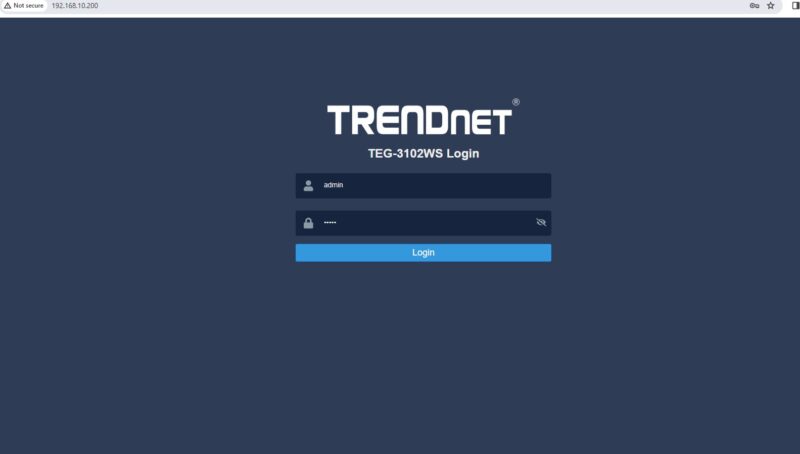

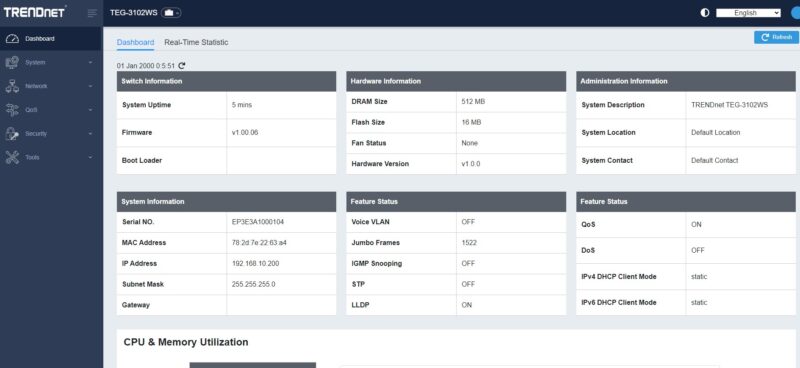

This is a Web Managed switch so we found the management IP address at 192.168.10.200.
Once inside, the interface was reasonably responsive. It was much better than some other 2.5GbE switches in our series.
In the management interface you can see ports.
You can add VLANs and more.

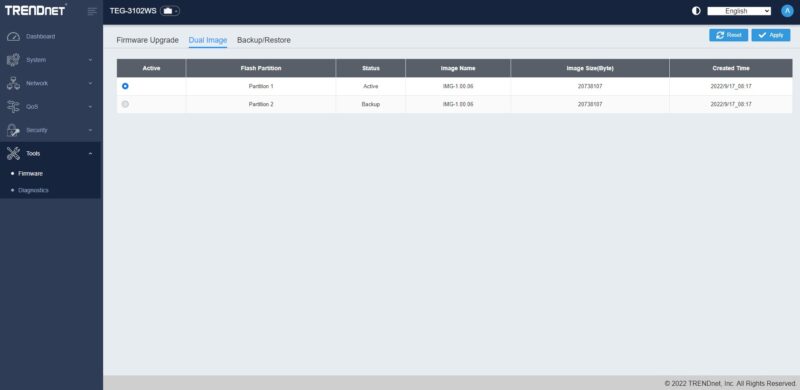

One feature we saw was that there are dual firmware images. Useful if you have an issue.

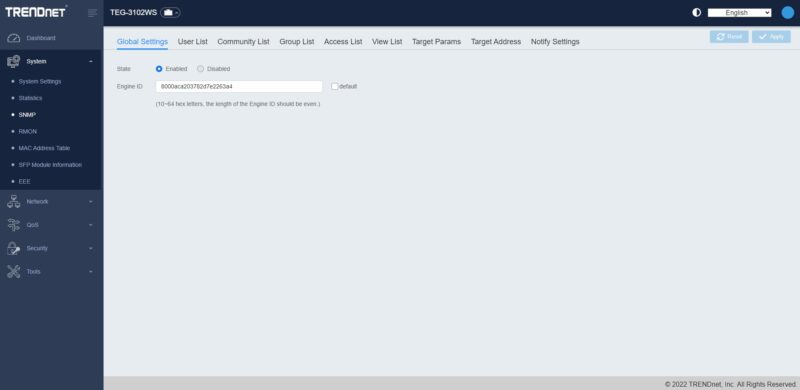

There is also SNMP functionality.
While it is hard to say this is the same level of management interface you would get on a higher-end switch, it is also a decent step up from many of the ultra-low-cost Realtek switches.
TRENDnet TEG-3102WS Performance

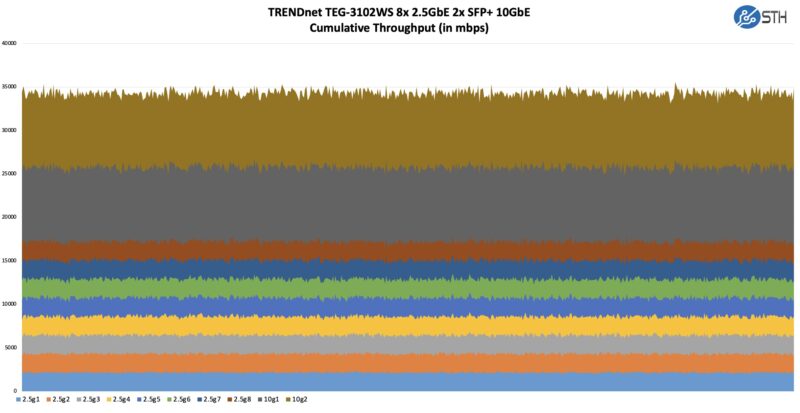

In terms of performance, it seems to be about what we would expect.
We are finding most switches these days to get pretty close to their line rates using iperf3 traffic.
TRENDnet TEG-3102WS Power Consumption

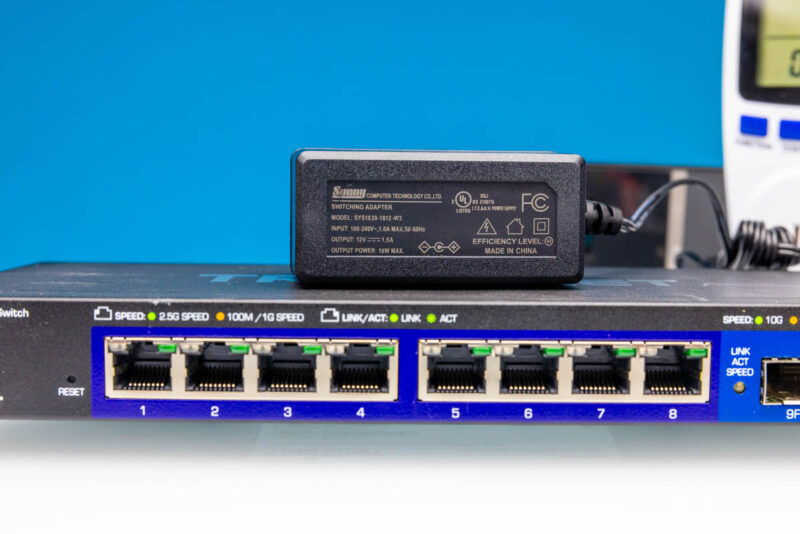

Despite having three chips inside, the switch still comes with just a 12V 1.5A power adapter.

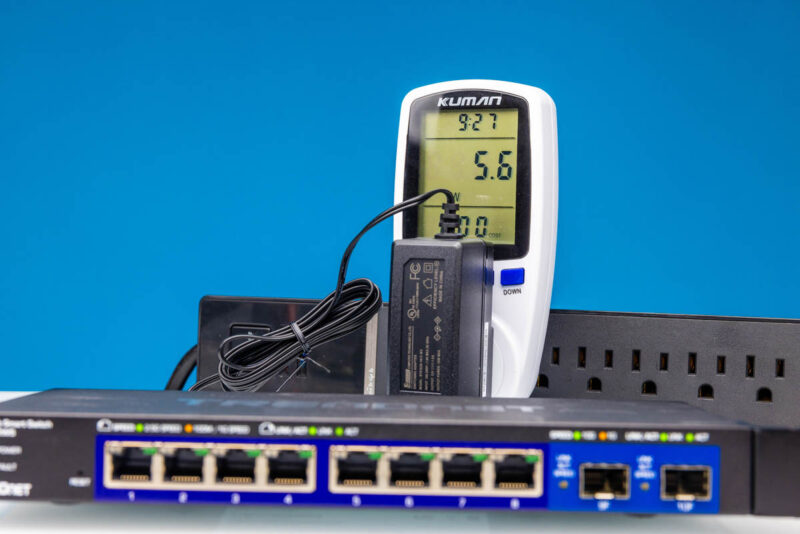

At idle, we got around 5.6W, which is 3.6W higher than the Gigaplus GP-S25-0802.

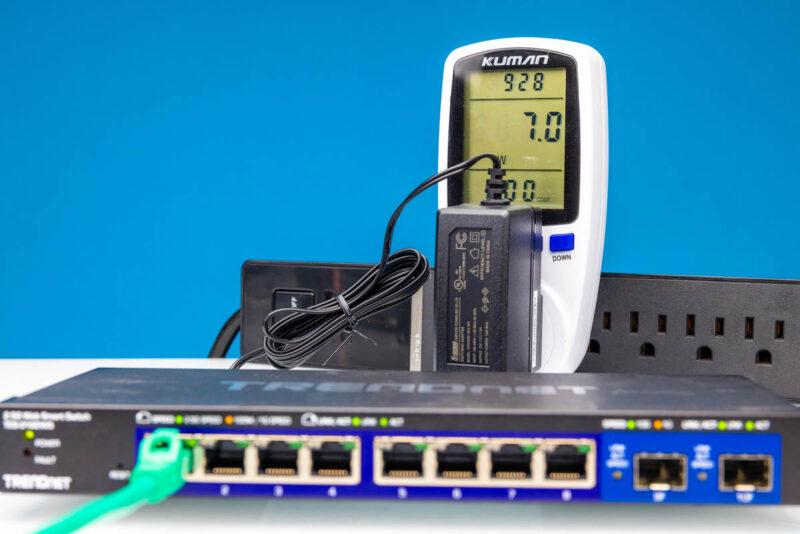

With a single 2.5GbE port plugged in, that jumps to 7W or 1.4W higher than idle. That is certainly at the higher end of what we have seen.

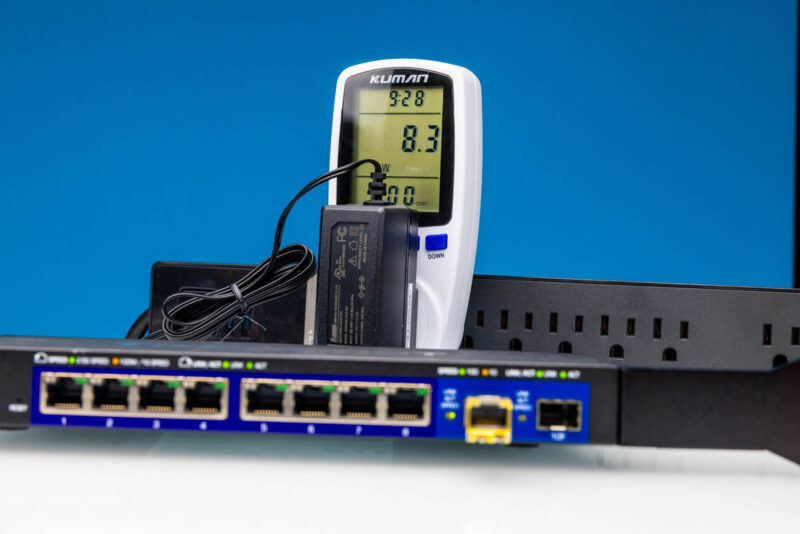

We used a 10Gbase-T SFP+ pluggable to add a good amount of power consumption in a SFP+ port and we got 2.7W over our baseline. Again, this is a bit higher than some of the other switches we have seen.
Overall, this is certainly a higher-power option than other switches we have seen, and the management function seems to add quite a bit over the unmanaged option out there.
Final Words
We love the extra flexibility of the 8-port 2.5GbE and 2-port 10GbE model. Having that extra SFP+ port adds another high-speed path versus the 8+1 switches, and it has more ports than the common 4+2 switches.
The MaxLinear switch chips are different, and the management CPU is certainly offering something beyond the absolute barebones management we have seen elsewhere. The closest competitors are the low-cost Gigaplus GP-S25-0802 and the MikroTik CRS310-8G+2S+IN. TRENDnet has a higher-end switch than the Gigaplus but one that uses more power. MikroTik’s CRS310 is a higher-end switch that often costs the same or less but uses a few watts more power. There are fewer 8+2 offerings on the market, making this perhaps more interesting.
Again, it is great to have options. The TRENDnet TEG-3102WS is a surprisingly better option than we would have expected. It is also fun to see switches that are different when we open them up, and this is certainly different than many we have seen before.
Where to Buy
We purchased our unit on Amazon. Here is the affiliate link for this model.
