TP-Link TL-SH1832 Internal Overview

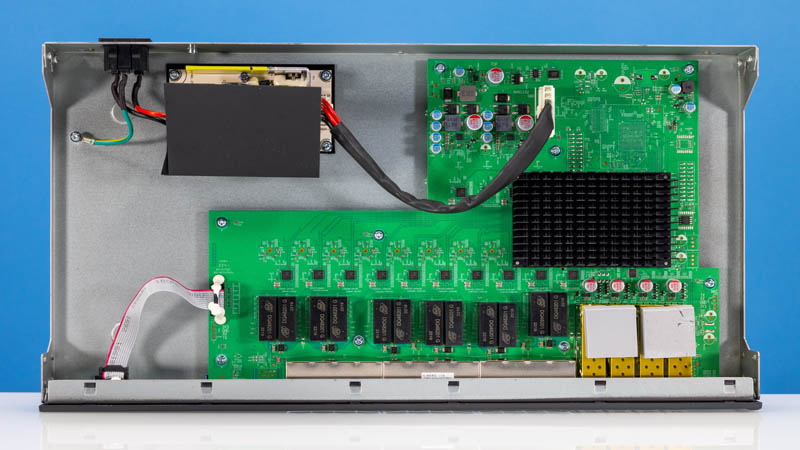

Inside the switch, there is a power supply as well as a switch PCB. One will immediately notice that there are no fans inside the switch.
The power supply is a single internal unit. This is a step down from MikroTik switches in this price range, like the MikroTik CRS504-4XQ-IN.

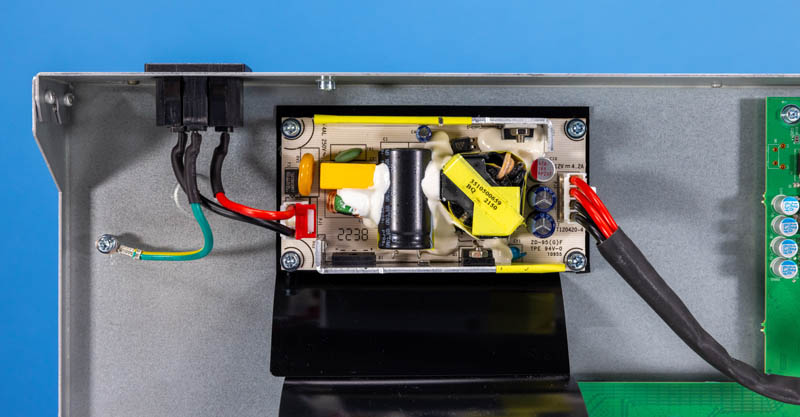

Here is a view of the PSU side of the switch.

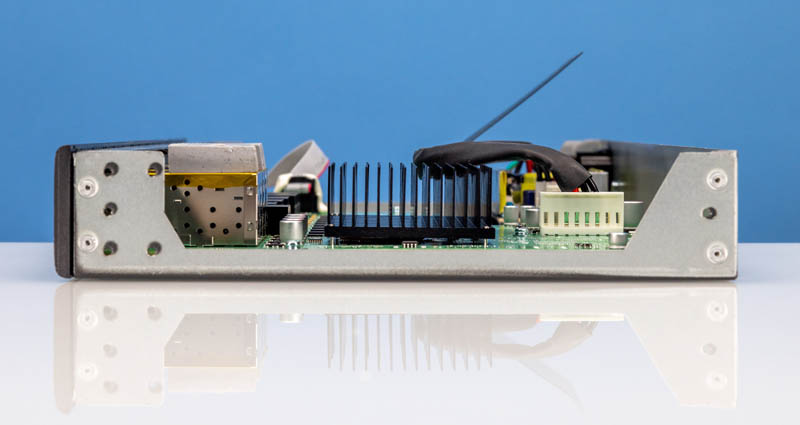

Here is a look at the switch chip and SFP+ cage side of the switch.

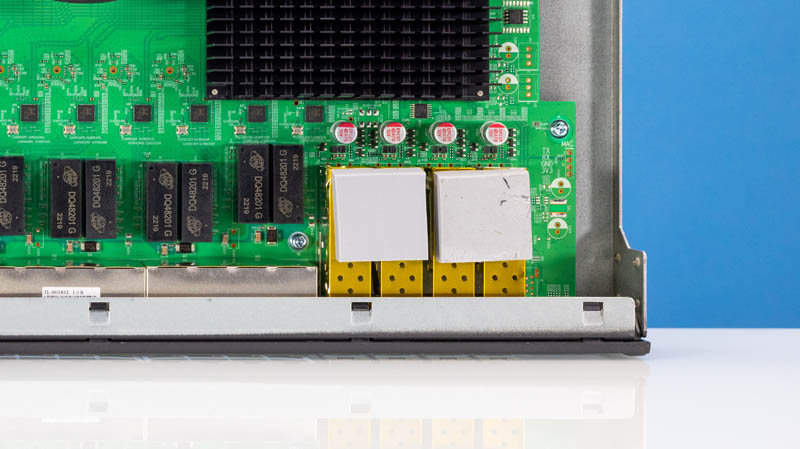

Something that immediately sticks out is the massive thermal pads from the SFP+ cages to the top of the chassis. We have not seen a lot of these on SFP+/ SFP28 cages in the switches we have reviewed.
Next, let us get to the performance.
TP-Link TL-SH1832 Performance

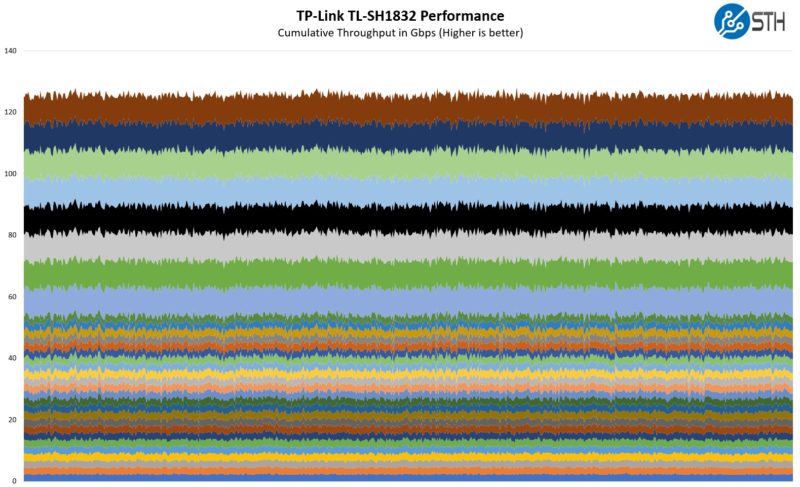

Since this is an unmanaged switch, it is a plug-and-go experience. We hooked several of the 2.5GbE fanless units and other systems we had to the ports and were expecting terrible performance. Here is what we saw:
That is actually not too bad from a performance perspective. We were expecting something abysmal, like 60Gbps on this switch, from some blocking design. Instead, this appears to be a non-blocking switch.
Next, let us get to the power consumption and noise.
