Qotom Q20332G9-S10 Internal Hardware Overview

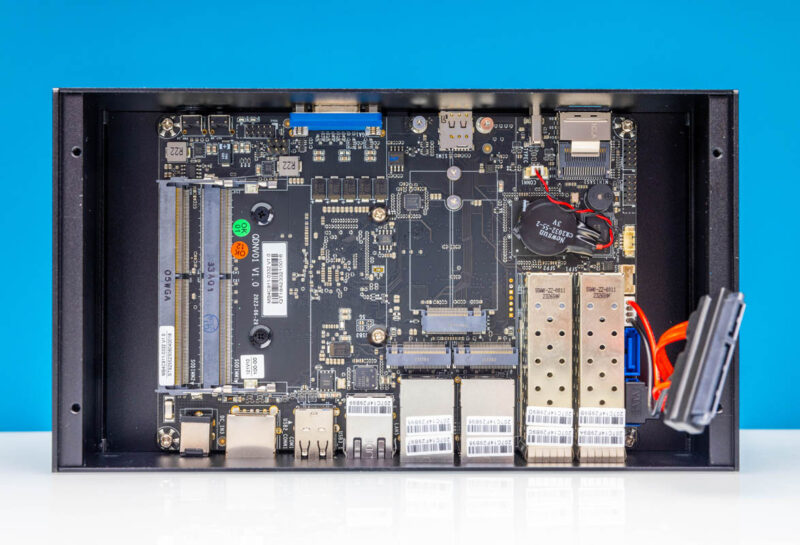

This is how our first C3758 system arrived. One can see a fairly standard layout. One other item we wanted to point out is how big the SFP+ cages are. Many ask why more motherboards do not come with SFP+ networking, and this is a big reason. The cages are much larger.
We expected our system to come with off-brand memory. Instead, we got a 16GB Kingston DDR4 SODIMM. This was not an ECC SODIMM, but technically the C3758 even supports ECC RDIMMs so we were hoping to see an ECC SODIMM here.

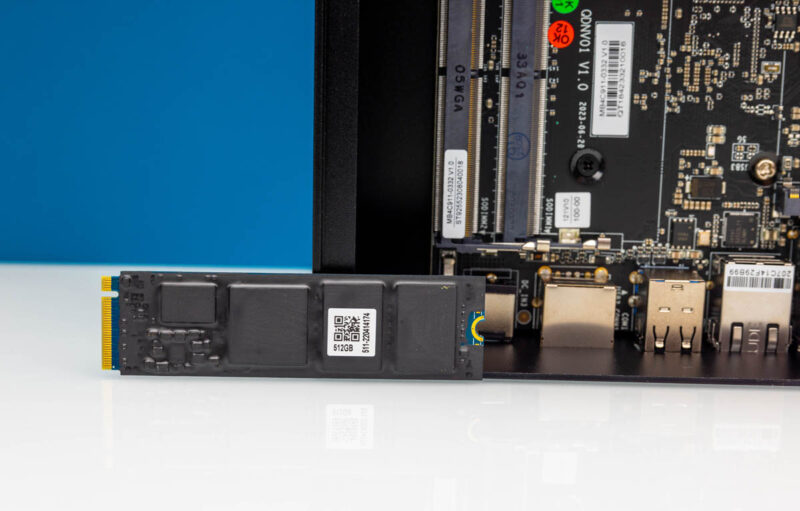

The SSD was also really interesting. This is a Phison 512GB NVMe SSD.
The really interesting part is that it is coated. This type of coating is done in the embedded space to protect SSDs from both accidental damage, as well as from prying NAND chips off. Usually, in these systems, we get a simple off-brand SSD. Here, we get something that looks a lot more like what we would expect if we bought this as a firewall appliance from a vendor.

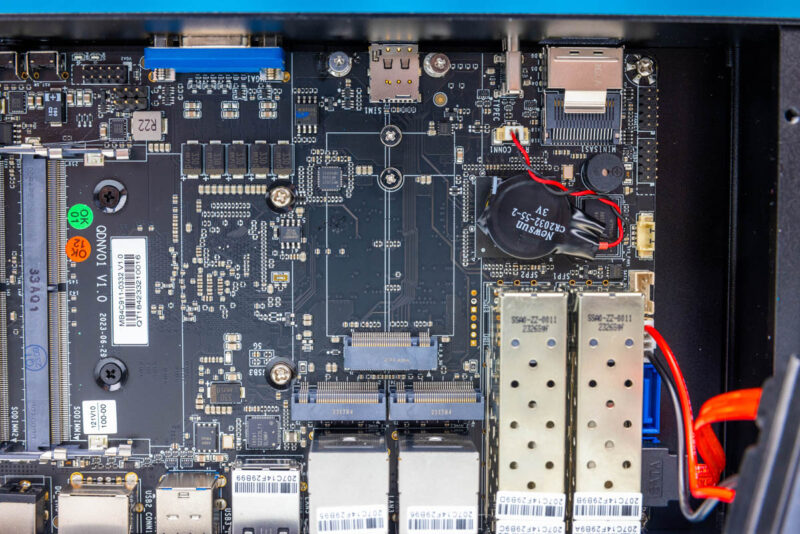

Once we have the components out, we can then see that the motherboard has a lot going on.

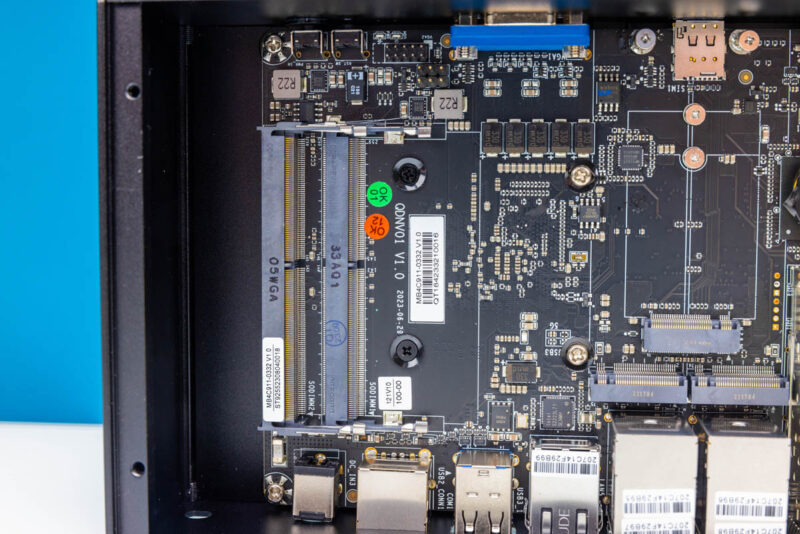

First, we get two DDR4 SODIMM slots.

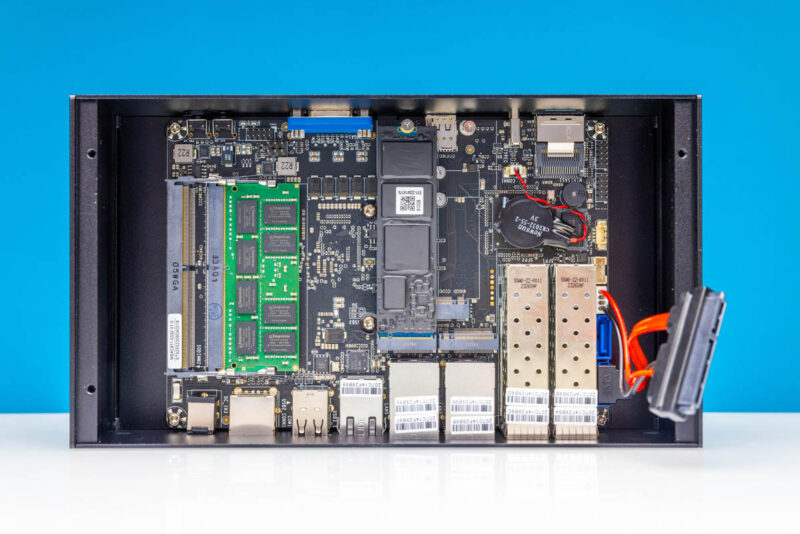

We added 64GB of memory as one can see in this screenshot. We took screenshots in Windows since we figured that that would be the one we were least confident in. Still, at this point, the hardware is very well supported.
In the middle area, there are three expansion slots. Two are 2280 M.2 NVMe SSD slots. As we will show in the performance section, these are PCIe Gen3 x2 only. The last slot is for WiFi or cellular connectivity. This is used in conjunction with the nanoSIM slot on the front and a M.2 for 4G/5G (B key 3042/3052) modem.

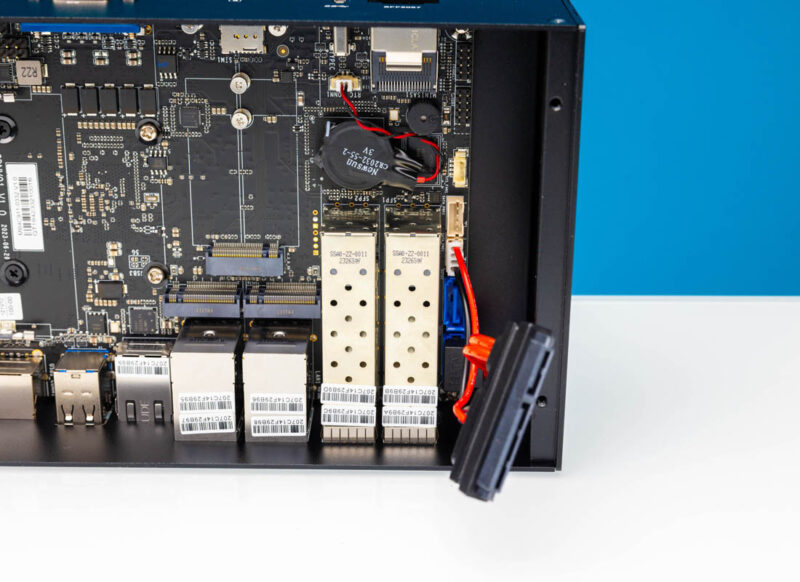

Next, there are two SATA ports. Our system came with one SATA data and power cable that we used to connect a SSD mounted to the bottom cover.
The bottom cover 2.5″ SSD mounts we generally see are just holes, but not on the Qotom. Instead, there are actually rubber pads, possibly for hard drive mounting.

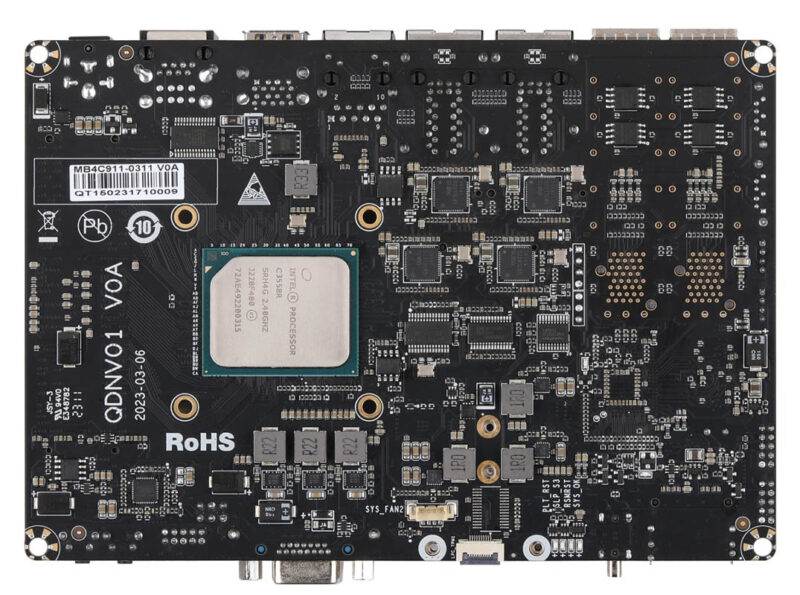

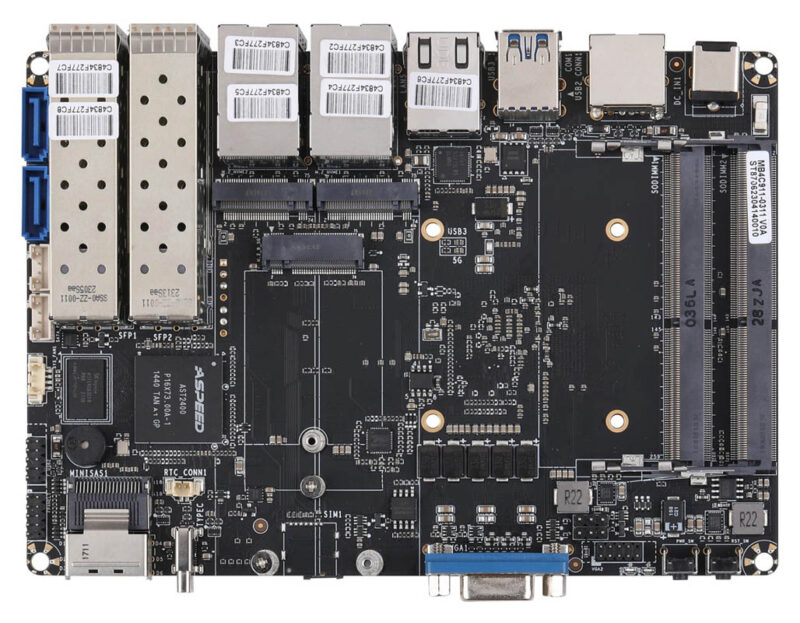

We found motherboard pictures and something we realized that was covered in ours is the ASPEED AST2400 BMC. We did not find iKVM IPMI functionality active on our systems. Also we do not have the AMI MegaRAC sticker or anything like that, the same kind of stickers that we found had incorrect company names in Dude this should NOT be in a Dell Switch or HPE Supercomputer. Still, that AST2400 is able to provide key features like the VGA output as well as introduce a watchdog feature.
There are a number of CPU options, and we purchased the 8-core C3758 and C3758R versions. Qotom also has a lower-cost C3558R version that you can see here.
These are now a generation old as we covered the Parker Ridge generation for 25GbE-era embedded systems in pieces such as our Supermicro A3SPI-4C-LN6PF review with the Intel Atom C5315. Still, Denverton or the Atom C3000(R) series will be in the market for some time.
