Today, we are looking at the Supermicro SYS-112C-TN, a 1U single-socket Intel Xeon 6 server. This is an elegant design since it has the direct capability to replace previous-generation dual-socket servers while offering more I/O connectivity. What is more, we are going to take a look at a version of this with the new Intel Xeon 6700P performance core series CPU.
Supermicro SYS-112C-TN External Hardware Overview
The server is a 1U 29.4″ or 747mm deep design.

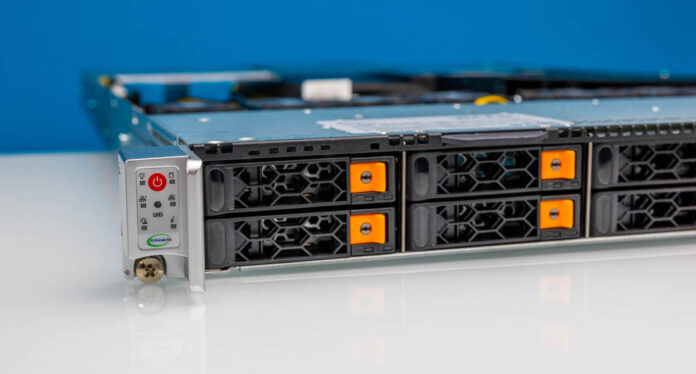

On the left side, we get the power button and status LEDs.
There are eight 2.5″ U.2 NVMe drive bays in our system.
These utilize tool-less drive trays.
On the right side, there are two of the six columns of drives that are instead reserved for airflow. In another option of the chassis, these can be additional drive bays for 12 total.
On the right rack ear we get a USB port and a mDP for front service.
On the rear, we have a fairly standard set of I/O.
First, we have a full-height riser with the DC-MHS card underneath.
The riser is a PCIe Gen5 x16 riser.
The center block has another riser and an AIOM/ OCP NIC 3.0 slot.
In the riser we have a NVIDIA ConnectX-7 card in the PCIe Gen5 x16 slot.
The rear DC-MHS and AIOM slots are notable since these are OCP inspired. Having the DC-MHS module allows an easy path for having different management interfaces such as Supermicro’s stack or OpenBMC.
We also have two power supplies in the rear for redundant power.
Next, let us get inside the system to see how it works.
