QNAP TBS-h574TX Power Consumption and Noise

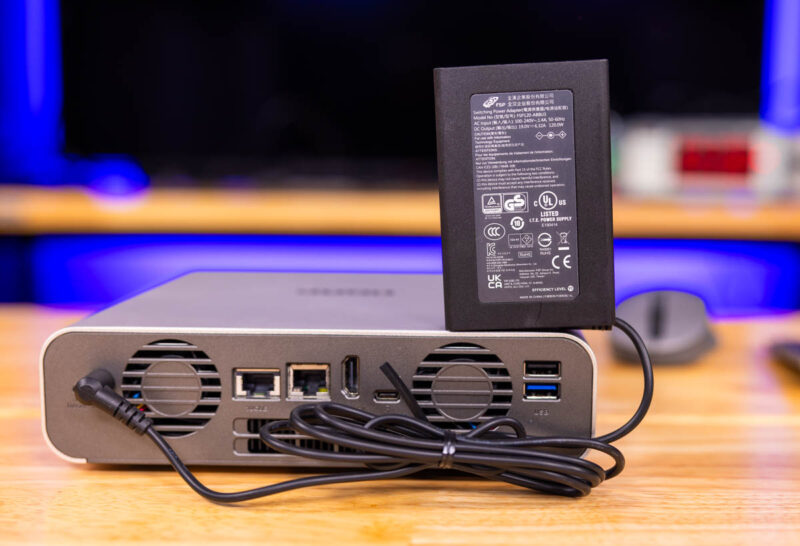

The NAS itself comes with a nice FSP 120W 19V power adapter.
In terms of power consumption, the base power consumption with drives was generally in the 34-39W range depending on the SSDs that we installed. There, of course, is room to go up from there with different drives. We could easily hit 50-70W under load. Also, we attached a M1 Macbook Pro to the NAS with the Thunderbolt cable and we saw power consumption increase to 50-75W and the Macbook Pro showed that it was getting power via the Thunderbolt cable.
Noise was not superior. The system sat at 38-40dba idle in our 34.5dba noise floor studio. It was not extremely loud, nor was the noise a high-pitched server fan noise. Still, if you are in a quiet environment with a 1m Thunderbolt cable and your Mac, you are going to easily notice that this system is there, even at idle. We could get the fans to ramp a few times into the 43-45dba range, and there is likely room to go up from there. It is far from silent.
Key Lessons Learned and NAS Comparison
To us, the two main M.2 SSD NAS units on the market right now are this QNAP as well as the Asustor Flashstor 12 Pro FS6712X. Indeed, many are going to decide between those two so that feels like the best comparison point. Both can take M.2 drives and have 10Gbase-T for 10GbE.
The FS6712X is way less expensive at only $799 versus this Core i3 model at $1199. Even upgrading the memory in the FS6712X to 16GB is not an expensive task. The Core i3 in the QNAP TBS-h574TX is a far superior processor. QNAP QuTS hero is a better NAS OS and we like using ZFS. The QNAP also allows the use of E1.S SSDs.
One big feature that would push one to the QNAP over the Asustor is the Thunderbolt 4 connectivity. There are a large number of folks who edit videos on Apple Mac platforms. Being able to quickly use a $35 cable and get high-speed connectivity is going to be attractive for many. Asustor does not have this.
The other side, however, is that the Asustor FS6712X can attach 12 drives. If you are using 4TB drives in both, that means that QNAP tops out at 20TB raw capacity while the Asustor is at 48TB. If you are simply putting the NAS in a closet with 10Gbase-T networking then the Asustor is extremely competitive. Of course, the ecosystem with expanding the NAS via external USB enclosures is better with QNAP as we showed with the QNAP TR-004 USB RAID enclosure.
Overall, we wish that either we had user-upgradeable memory, or that this came with at least 16GB if not 32GB at this price. It is a nice unit, but the reason it was so divisive was the limited capacity. Even using 8TB-class drives it is limited to around 40TB raw which is less capacity than a single U.2 SSD these days. It almost felt like if this was a U.2 NAS it would be unstoppable with 5-6 drives.
Final Words
While it was fun to hear our team debate the merits of this NAS, it was clear that this is the best NAS for someone who is looking at an all-flash or all-SSD Thunderbolt NAS. Many of those falling into that category will have Apple systems and whether it is a Mac Studio, Mac Mini, Macbook, or other system, the QNAP will look good next to the system, be easy to connect, and perform well.
Being able to use high-quality E1.S SSDs or lower-cost M.2 SSDs is great, we just wish that there were options for higher-capacity drives. Perhaps that will happen over time.
Still, if you have a Mac or two, and just want a fast NAS, it is hard to argue that this little all-flash NAS is awesome.
Where to Buy
Here are a few Amazon Affiliate links for what we used in this review:
Note: We participate in various affiliate programs so if you purchase through these links we may earn a small commission.
