Pegatron MS303-2A1G 4-Way H200 Server

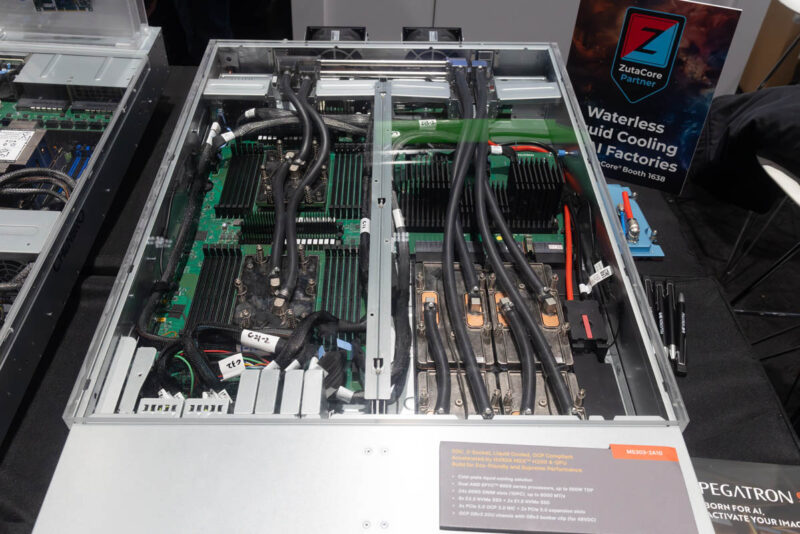

The Pegatron MS303-2A1G is a liquid cooled NVIDIA H200 server in an OCP rack form factor.

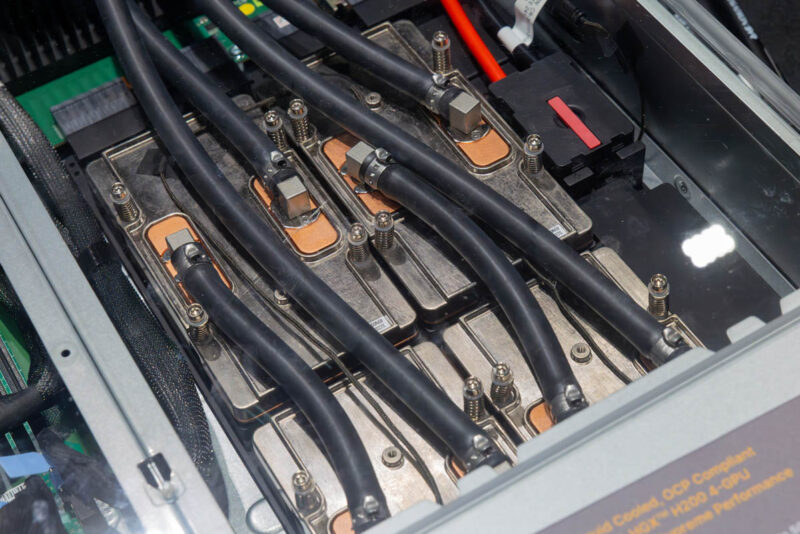

There are four NVIDIA H200 GPUs that are liquid-cooled. These are SXM modules.

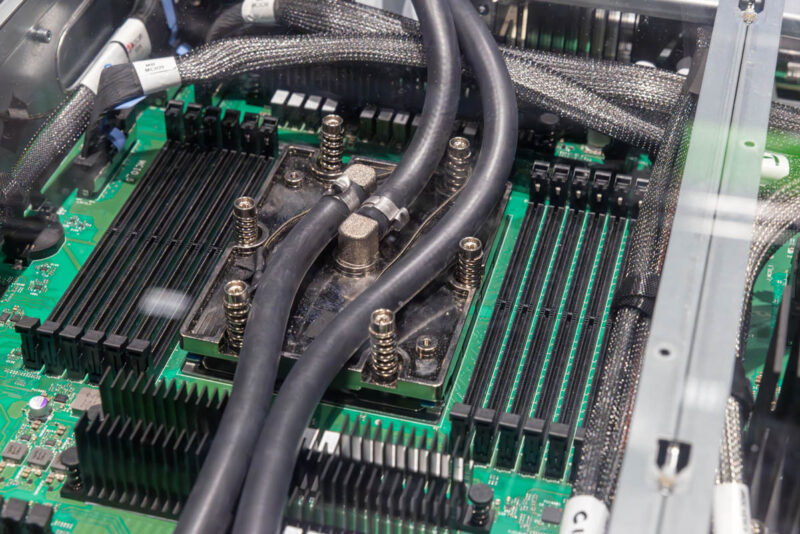

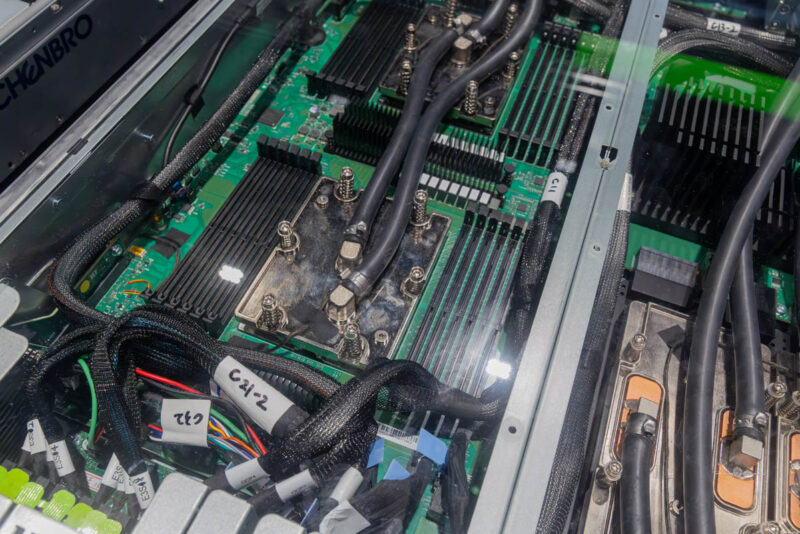

The CPUs are AMD EPYC 9005 “Turin” processors with twelve DDR5 DIMM slots per CPU (24 total.)
With liquid cooling, the AMD EPYC CPUs can go up to a full 500W TDP per socket.
This was just a neat system since we do not see as many of the 4-way NVIDIA H200 servers out there like this.
Pegatron AS400-2A1 and AS205-2T1

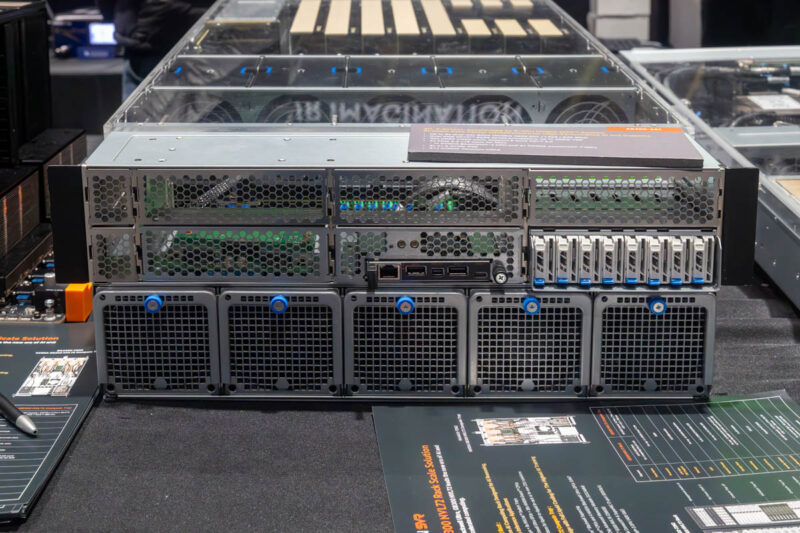

For PCIe accelerators, we saw the Pegatron AS400-2A1 GPU server.

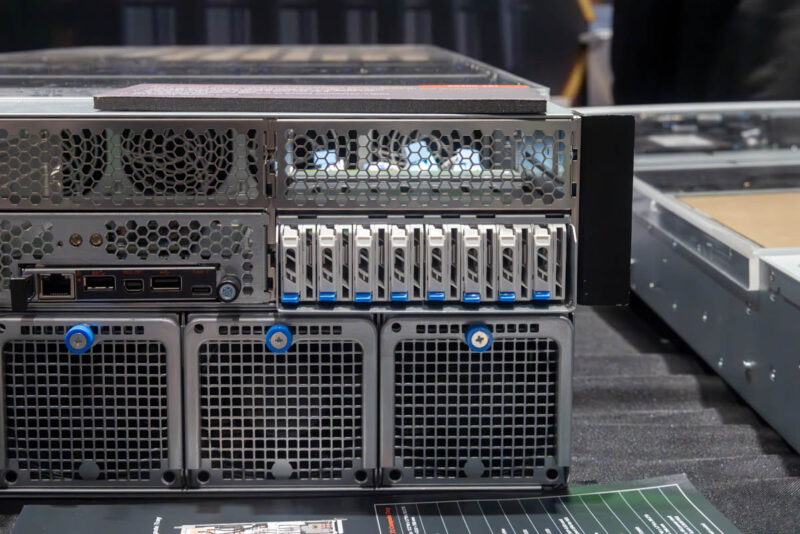

In addition to the front fans and airflow vents, we have an OCP NIC 3.0 slot on the front as well as eight E1.S EDSFF storage bays.

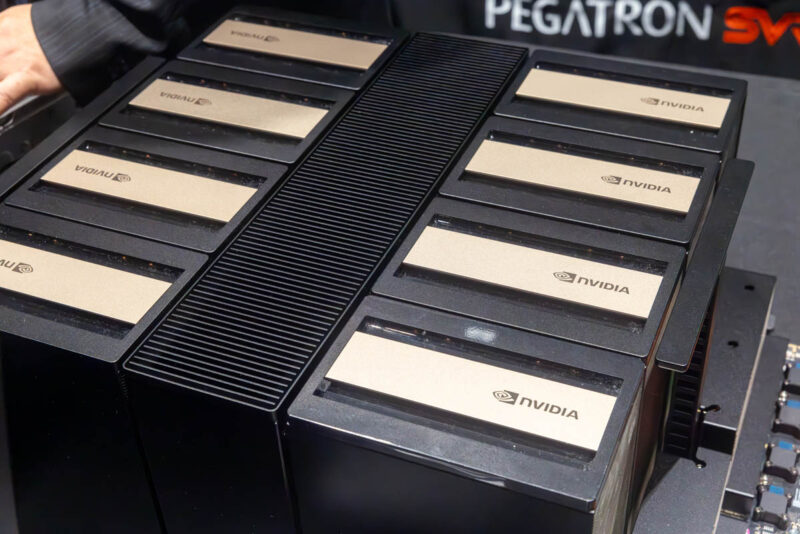

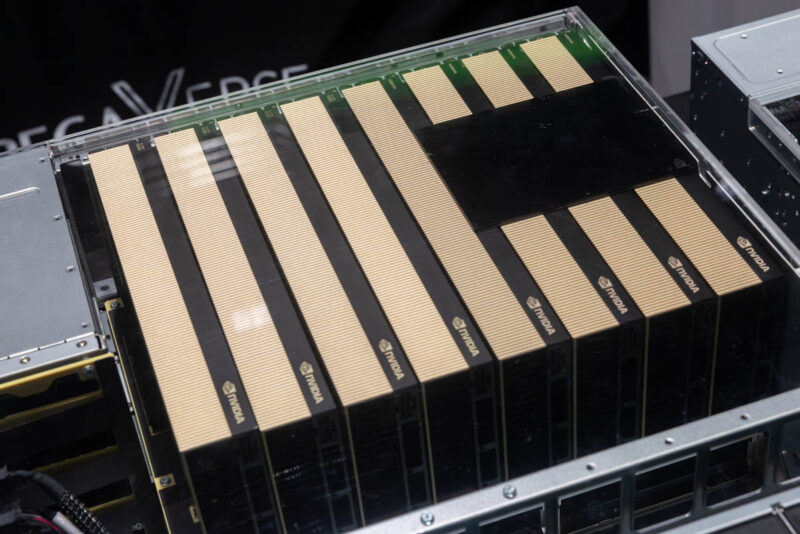

There are spaces for eight double-width PCIe slots. There are options like the NVIDIA RTX Pro 6000 or even NVIDIA H200 NVL setups with NVLink bridges.

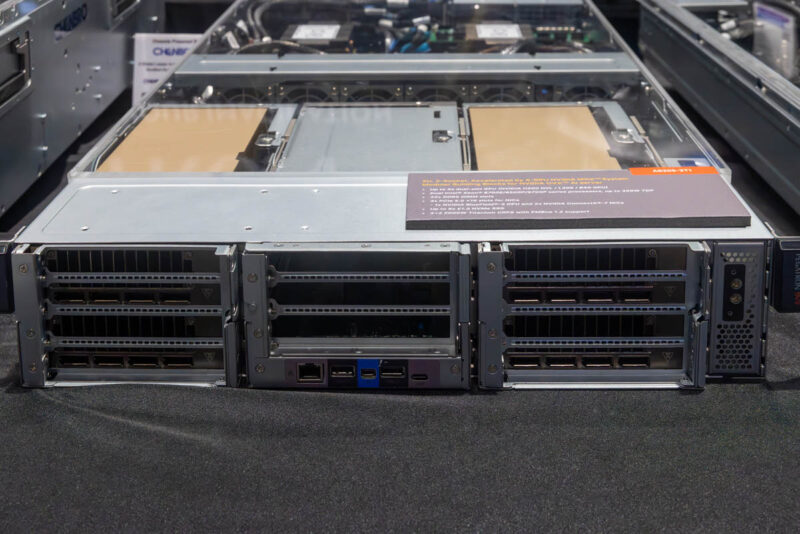

When there is not enough rack height for an 8-GPU MGX platform, there is the Pegatron AS205-2T1. This is a 2U server that places the GPUs on the front of the system along with the networking and front I/O.
This is powered by two Intel Xeon 6700P processors.
Based on the NVIDIA OVX platform, this is designed for NVIDIA H100/ H200 and L40S GPUs.
Final Words
Overall, there were a ton of cool GPU servers at the Pegatron SVR booth at NVIDIA GTC 2025.
While the NVIDIA GB300 NVL72 rack is the top-of-the-line right now, not every organization can support 130-140kW racks. As a result, there are a number of lower-density options that we saw at the show.
