NVIDIA GeForce RTX 3090 Review A Compute Powerhouse

NVIDIA GeForce RTX 3090 Deep Learning Benchmarks

Before we begin, we wanted to note that it took a bit of time after the RTX 3090 launched to be able to run our test cases. That simply causes a bit of a delay as part of our process.

ResNet-50 Inferencing in TensorRT using Tensor Cores

ImageNet is an image classification database launched in 2007 designed for use in visual object recognition research. Organized by the WordNet hierarchy, hundreds of image examples represent each node (or category of specific nouns).

In our benchmarks for Inferencing, a ResNet50 Model trained in Caffe will be run using the command line as follows.

nvidia-docker run --shm-size=1g --ipc=host --ulimit memlock=-1 --ulimit stack=67108864 --rm -v ~/Downloads/models/:/models -w /opt/tensorrt/bin nvcr.io/nvidia/tensorrt:20.11-py3 trtexec --deploy=/models/ResNet-50-deploy.prototxt --model=/models/ResNet-50-model.caffemodel --output=prob --batch=16 --iterations=500 --fp16

Options are:
–deploy: Path to the Caffe deploy (.prototxt) file used for training the model
–model: Path to the model (.caffemodel)
–output: Output blob name
–batch: Batch size to use for inferencing
–iterations: The number of iterations to run
–int8: Use INT8 precision
–fp16: Use FP16 precision (for Volta or Turing GPUs), no specification will equal FP32

We can change the batch size to 16, 32, 64, 128 and precision to INT8, FP16, and FP32.

The results are Inference Latency (in sec).
If we take the batch size / Latency, that will equal the Throughput (images/sec) which we plot on our charts.

We also found that this benchmark does not use two GPUs; it only runs on a single GPU.

You can, however, run different instances on each GPU using commands like.
“`NV_GPUS=0 nvidia-docker run … &
NV_GPUS=1 nvidia-docker run … &“`
With these commands, a user can scale workloads across many GPUs.

Also one can use the —device=0,1,2,3,4,… a command to select which GPU to run on, more on this later.

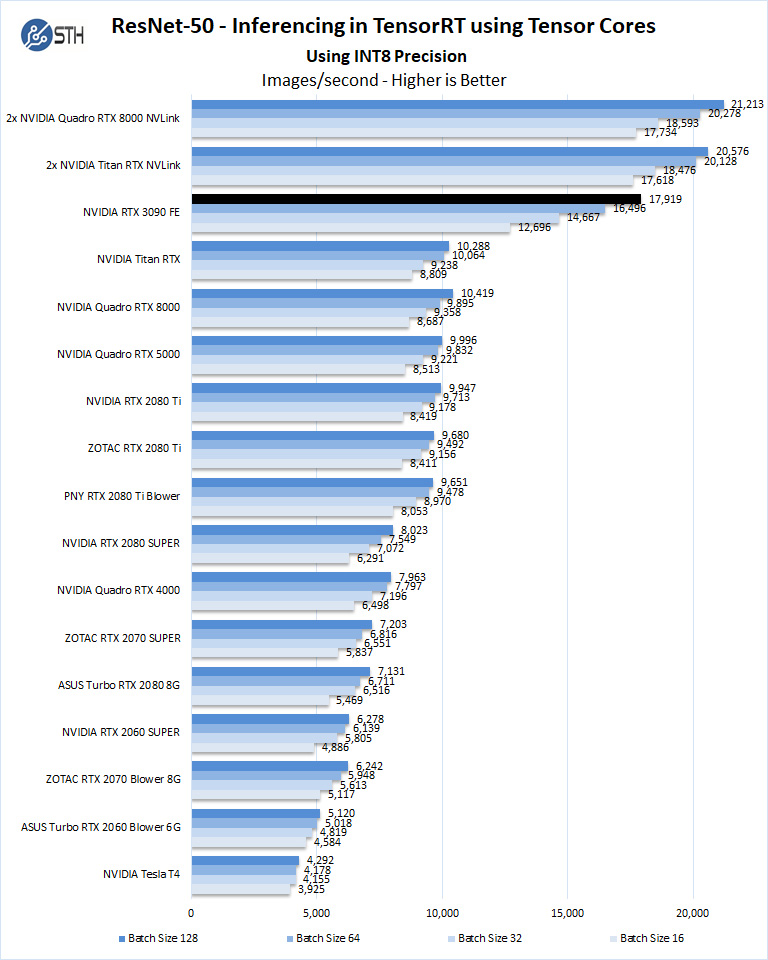

We start with Ampere INT8 mode.

Using the precision of INT8 is by far the fastest inferencing method if at all possible, converting code to INT8 will yield faster runs. Installed memory has one of the most significant impacts on these benchmarks. Inferencing on NVIDIA RTX graphics cards does not tax the GPU’s to a great deal. However, additional memory allows for larger batch sizes.

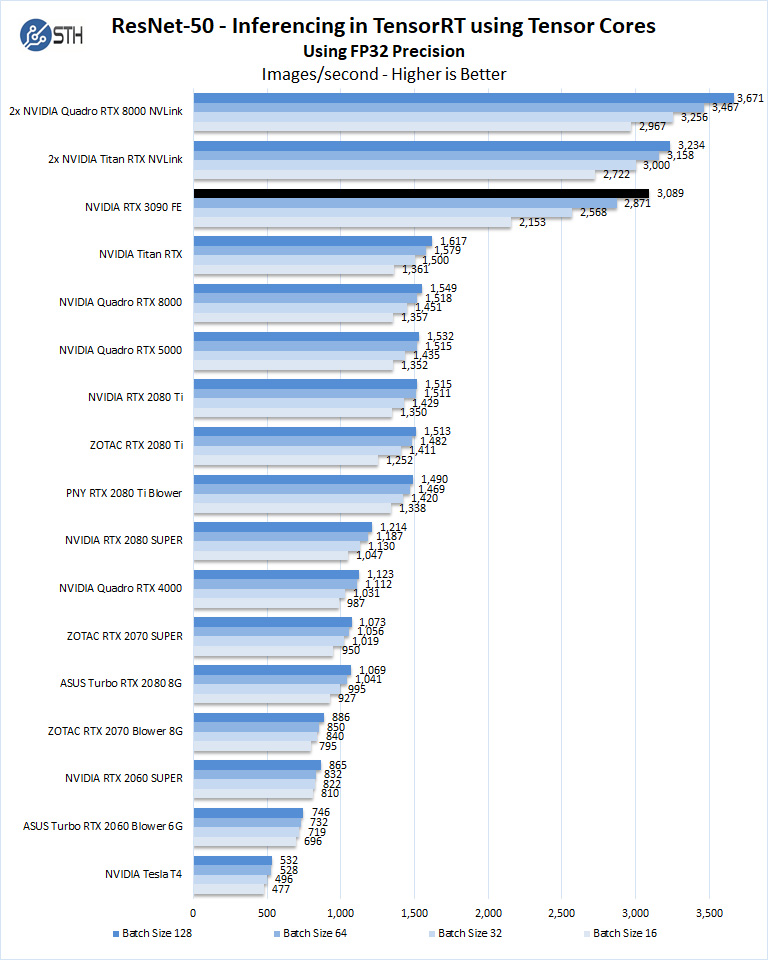

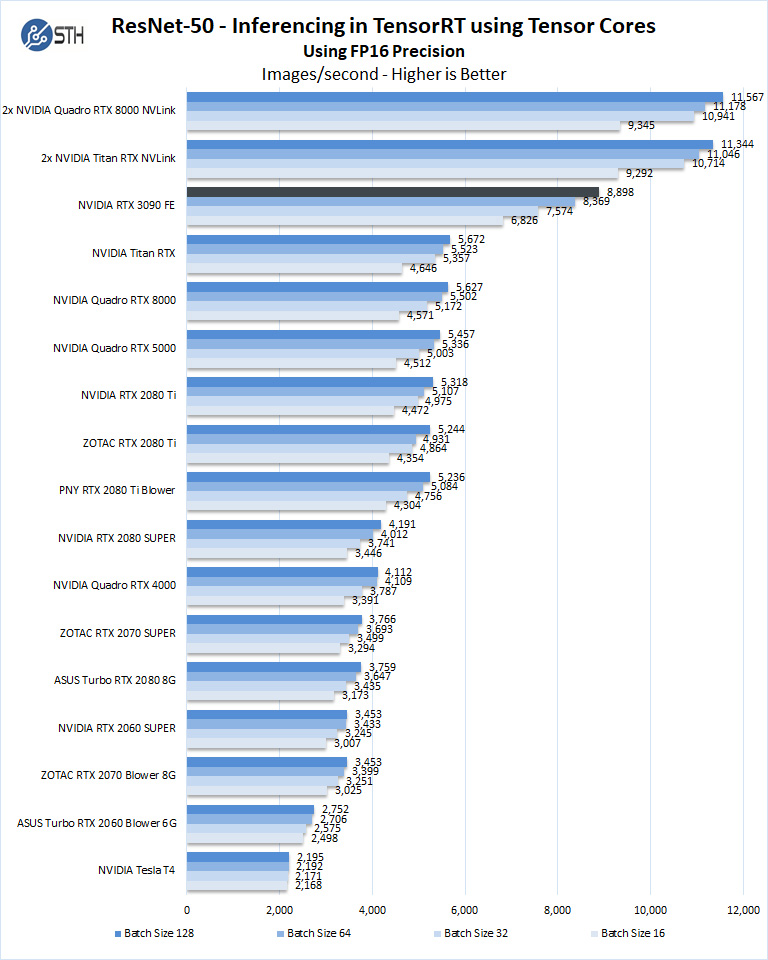

Let us look at FP16 and FP32 results.

Here we are getting excellent performance with the new RTX 3090 setup. Not only are we somewhere closer to two Titan RTX’s, but we are also several times faster than the NVIDIA T4. For anyone building inferencing applications, a NVIDIA T4 is still a more deployable card in a low-profile single-slot package with much lower power requirements. For someone developing an application for inferencing, this is a great example of where using a GeForce card for development in a workstation can be a game-changer.

ResNet-50 Training, using Tensor Cores

We also wanted to train the venerable ResNet-50 using Tensorflow. During training, the neural network is learning features of images, (e.g., objects, animals, etc.) and determining what features are important. Periodically (every 1000 iterations), the neural network will test itself against the test set to determine training loss, which affects the accuracy of training the network. Accuracy can be increased through repetition (or running a higher number of epochs.)

The command line we will use is.

nvidia-docker run --shm-size=1g --ipc=host --ulimit memlock=-1 --ulimit stack=67108864 -v ~/Downloads/imagenet12tf:/imagenet --rm -w /workspace/nvidia-examples/cnn/ nvcr.io/nvidia/tensorflow:20.11-tf2-py3 python resnet.py --data_dir=/imagenet --batch_size=128 --iter_unit=batch --num_iter=500 --display_every=20 --precision=fp16

Parameters for resnet.py:
–layers: The number of neural network layers to use, i.e. 50.
–batch_size or -b: The number of ImageNet sample images to use for training the network per iteration. Increasing the batch size will typically increase training performance.
–iter_unit or -u: Specify whether to run batches or epochs.
–num_iter or -i: The number of batches or iterations to run, i.e. 500.
–display_every: How frequently training performance will be displayed, i.e. every 20 batches.
–precision: Specify FP32 or FP16 precision, which also enables TensorCore math for Volta, Turing and AmpereGPUs.

While this script TensorFlow cannot specify individual GPUs to use, they can be specified by
setting export CUDA_VISIBLE_DEVICES= separated by commas (i.e. 0,1,2,3) within the Docker container workspace.

We will run batch sizes of 16, 32, 64, 128, and change from FP16 to FP32.

Some GPU’s like RTX 2060, RTX 2070, RTX 2080, and RTX 2080 Ti will not show some batch runs because of limited memory.

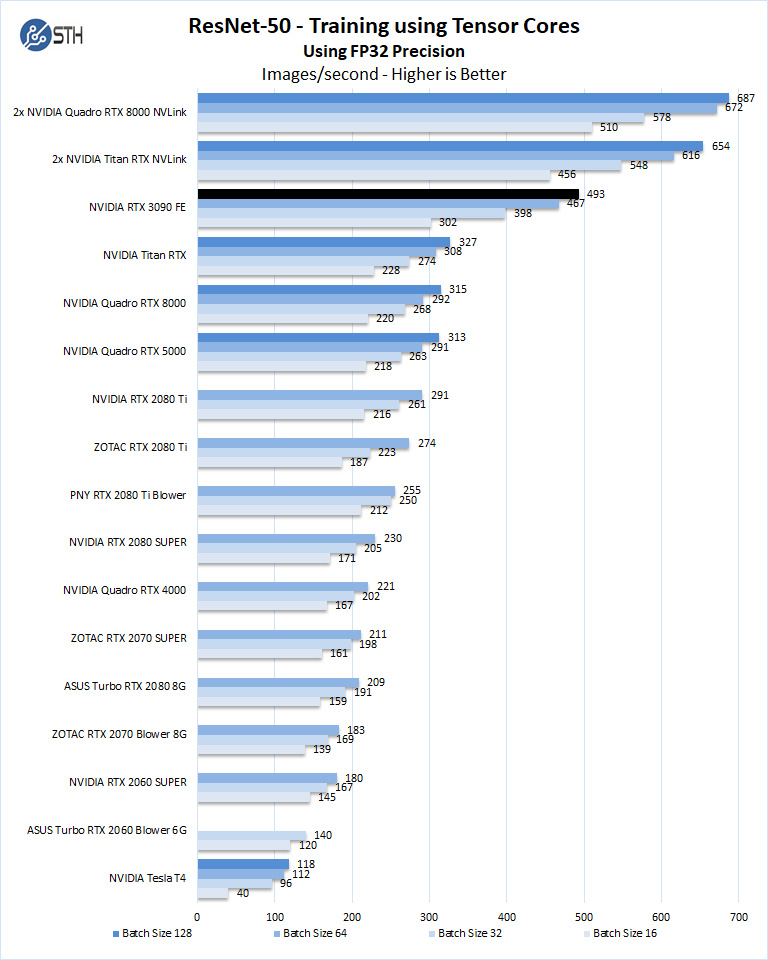

The new GeForce RTX 3090 setup again smashes our single GPU results and approaches NVLink configurations again.

Training using OpenSeq2Seq (GNMT)

While Resnet-50 is a Convolutional Neural Network (CNN) that is typically used for image classification, Recurrent Neural Networks (RNN) such as Google Neural Machine Translation (GNMT) are used for applications such as real-time language translations.

The command line we use for OpenSeq2Seq (GNMT) is as follows.

nvidia-docker run -it --shm-size=1g --ipc=host --ulimit memlock=-1 --ulimit stack=67108864 -v ~/Downloads/OpenSeq2Seq/wmt16_de_en:/opt/tensorflow/nvidia-examples/OpenSeq2Seq/wmt16_de_en -w /workspace/nvidia-examples/OpenSeq2Seq/ nvcr.io/nvidia/tensorflow:20.11-tf2-py3

We then open the en_de_gnmt-like-4GPUs.py and edit our variables.

vi example_configs/text2text/en-de/en-de-gnmt-like-4GPUs.py

First, edit data_root to point to the below path:
data_root = “/opt/tensorflow/nvidia-examples/OpenSeq2Seq/wmt16_de_en/”

Additionally, edit the num_gpus, max_steps, and batch_size_per_gpu parameters under
base_prams to set the number of GPUs, run a lower number of steps (i.e. 500) for
benchmarking, and also to set the batch size:
base_params = {
...
"num_gpus": 1,
"max_steps": 500,
"batch_size_per_gpu": 128,
...
},
Also, edit lines 44 and below as shown to enable FP16 precision:
#”dtype”: tf.float32, # to enable mixed precision, comment this
line and uncomment two below lines
“dtype”: “mixed”,
“loss_scaling”: “Backoff”,

We then run the benchmarks as follows.

python run.py –config_file example_configs/text2text/en-de/en-de-gnmt-like-4GPUs.py –mode train

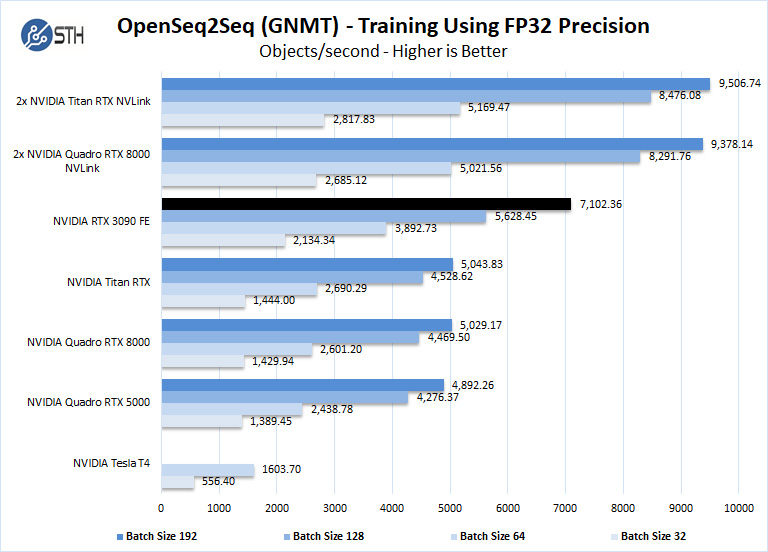

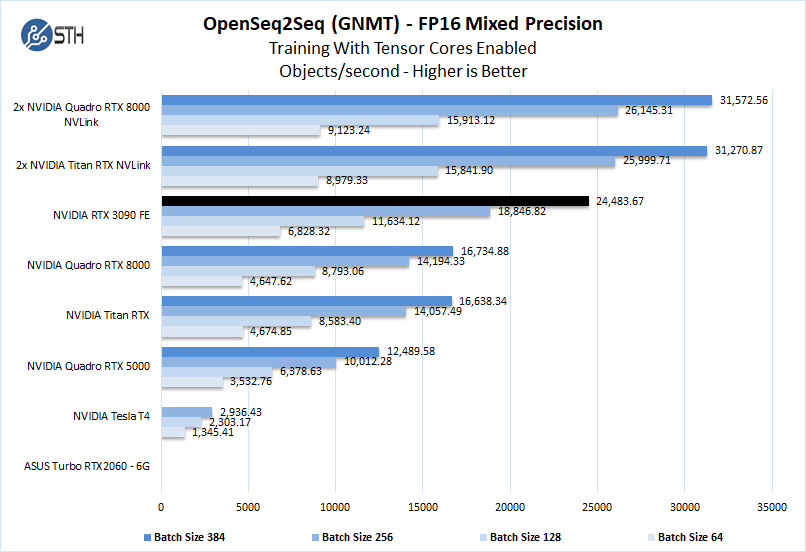

The results will be Avg. Objects per second trained which we plot.

We should note that other GPU’s we used to, like the RTX 2060, RTX 2070, RTX 2080, and RTX2080 Ti could not complete this benchmark due to the lack of installed memory. To enable this benchmark to finish on these GPU’s one might need to lower the batch size to smaller values like 32, 16, 8. We tried this but had no luck. Using a batch size four could be run but it was decided that this was not a very usable size. We have the RTX 2060 to show that case here.

As the GeForce 3090 has 24GB of installed memory, equal to that of the Titan RTX. The RTX 3090 is easily comparable to the Titan RTX memory-wise but offers larger batch sizes on a single GPU.

Overall, a high GDDR6X memory capacity and more modern Ampere architecture compute elements to make the GeForce RTX 3090 about as fast as 1.5x Titan RTXs on our training and inferencing workloads. While these are rapidly evolving spaces, there is a lot to be said for testing generational improvements because if one has a model they are currently using, effectively having a drop-in replacement of a larger/ higher-power GPU can yield massive benefits. We are going to get to the power consumption next, but while consumer and gaming websites may bemoan higher power on a per-card basis, it needs to be taken in the context of having multiple GPUs in a server.

Next, we will look at the GeForce RTX 3090 power and temperature tests and then give our final words.
