Nicgiga S25-0402P Management
This is an unmanaged switch, so it does not have a management interface. On a PoE switch, having management is handy, especially when it allows one to power cycle a switch remotely.

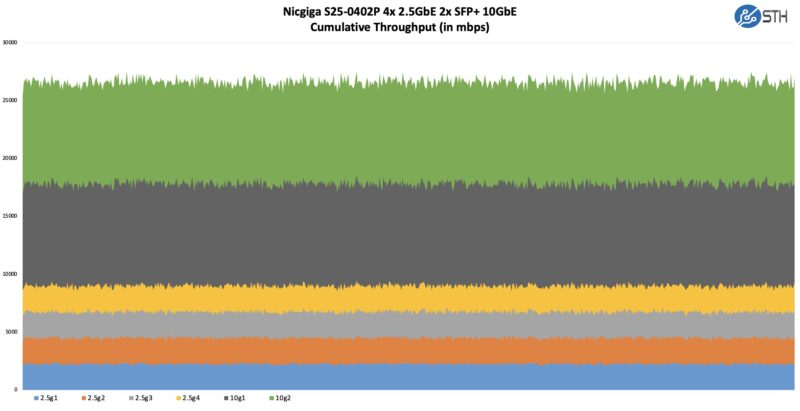

Nicgiga S25-0402P Performance
In terms of performance, this seems to be a decent but not top-tier performer.
This is similar to the other Realtek-based 4-port 2.5GbE and 2-port SFP+ switches we have seen.
Nicgiga S25-0402P Power Consumption

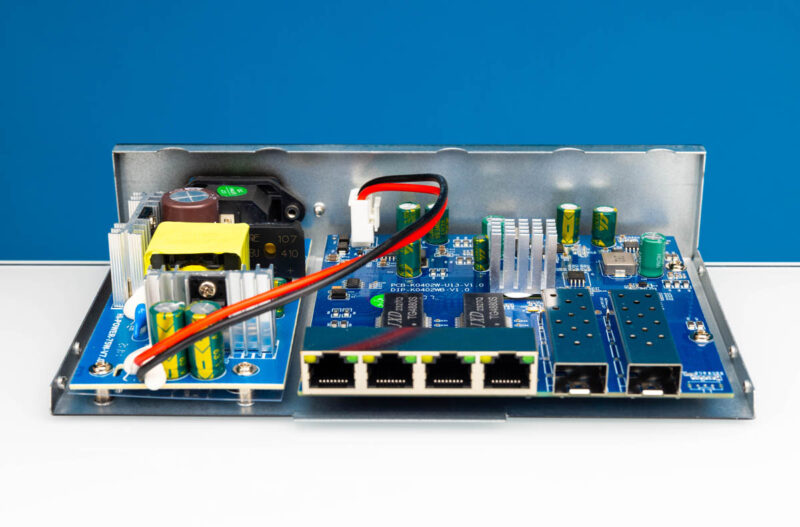

Here, we can see the 75W internal power supply. It is labeled Hi-POWER-75W-V7.0.
We got around 2.3W at idle, about 1-1.3W higher than we often see on these switches. That is due to the addition of the PoE infrastructure.

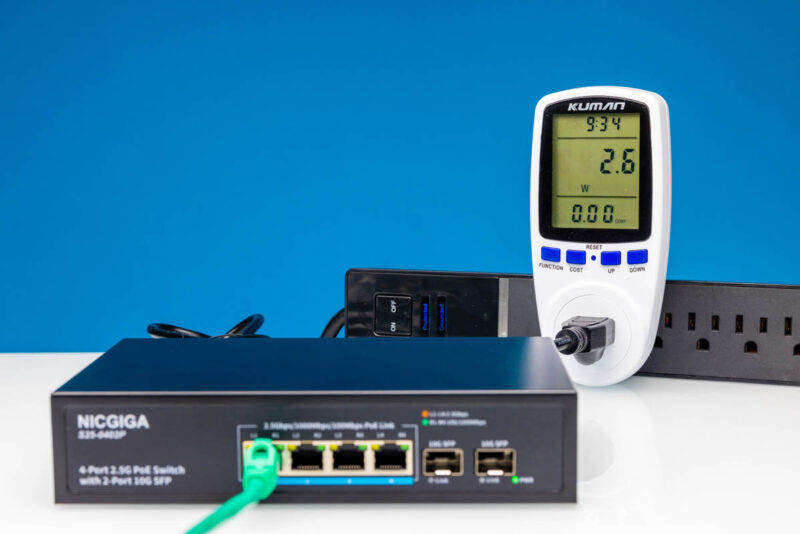

With a single 2.5GbE port plugged in, we added 0.3W for a total of 2.6W. That was surprising since it was a similar incremental power increase as we saw on the XikeStor SKS3200M-4GPY2XF.
We used a 10Gbase-T SFP+ pluggable to add a good amount of power consumption in a SFP+ port, and we got 4.0W for 1.7W over our baseline. That is relatively normal.
Overall, this is a very low-power switch. At the same time, with a 75W internal PSU and an easy path to 7-10W just for the switch’s data connectivity, it feels like this switch has maybe 60-65W available for PoE devices.
Final Words
Before we get too far in this, when we purchased the switch it was $55. The list price is now up to $65, but with multiple coupons that take the switch to just over $50. For $100, other options are better. For $50, this switch is at least decent. At the same time, this is a great example of finding something in our review series. It is advertised with 78W of PoE power, but the power supply is clearly marked as a 75W PSU.
This switch does not have the best brand name, but it is functional for a $50-ish device. We will probably have readers get a switch like this and be very happy. Others are going to increase their budgets for other options. Still, that is the idea behind doing lots of these switches.
Where to Buy
We purchased our unit on Amazon. Here is the affiliate link for this model.
Ultimate Fanless 2.5GbE Switch Buyer’s Guide 2024
You may have seen that we published the Ultimate Cheap Fanless 2.5GbE Switch Buyer’s Guide now with around 60 switches. We also recently published our Mega Round-up 2024 edition, in which we tested 21 new switches, including this one.
We decided to do the round-up first and will be filling in with reviews that we had not published at that point, including this one. We are trying to keep everything in a single resource for folks there.
