Netgear MS305-100NA Performance

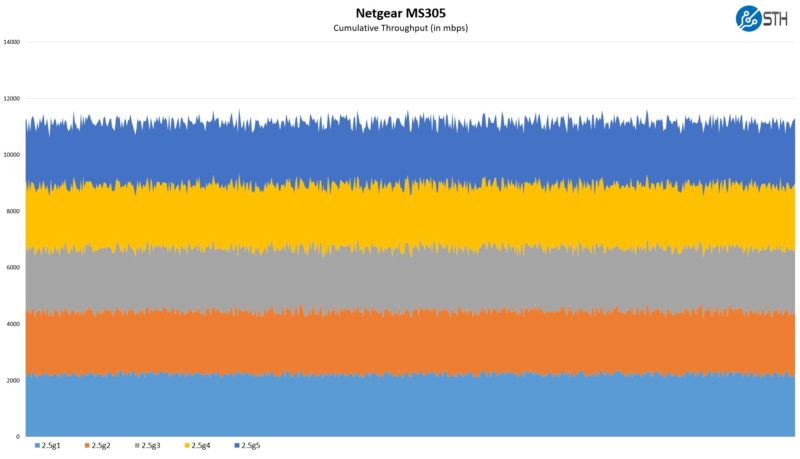

In terms of the overall 2.5GbE performance, we were able to get fairly normal 2.5GbE speeds from each of the five ports.
To be frank, we have considered whether to even include this portion in our series. Most of the 5-port 2.5GbE switches we have tested look very similar.
Netgear MS305-100NA PoE and Management Capabilities
Since we are going to be doing this as part of a series, we will note that this is an unmanaged switch. Also, we did not find PoE capabilities when testing this switch.
Netgear MS305-100NA Power Consumption

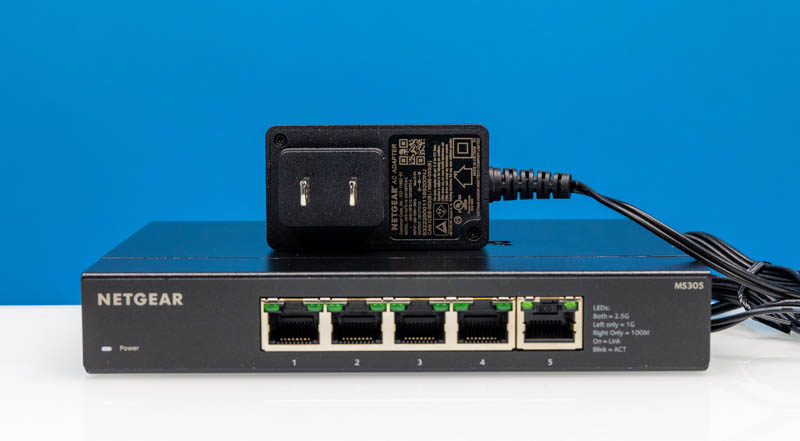

Here is a quick shot of the 12V 1A power adapter. One difference between the Netgear and some of the other switches on the market is that the power adapters and switches have regulatory markings and other certifications. This is the same adapter that came with our MS105.

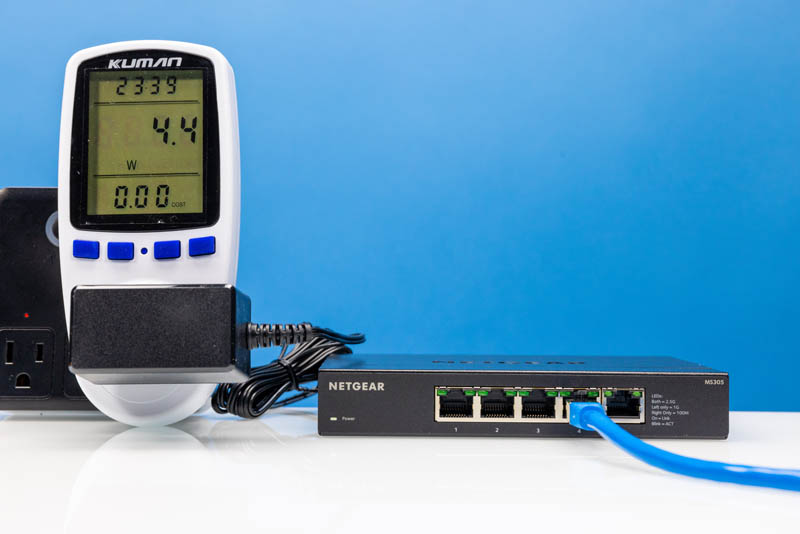

We saw idle power consumption of around 4.0W. Adding one 2.5GbE connection incremented power by 4.4W.
This is the same result that we got with the MS105.
The switch itself is a fanless unit so we did not notice any noise. Not using fans also helps with power consumption. Netgear will be one of the lowest-power switches in our round-up.
Final Words
The Netgear MS305 retails for somewhere around $135. One may immediately ask, what is the difference between this switch and the $150 Netgear MS105? In this case, both are unmanaged switches, but the MS305 has a 3-year warranty while the MS105 has Netgear’s limited lifetime warranty.
There are a few ways to look a the question of the Netgear MS105 vs the MS305 (or MS105-100NA vs MS305-100NA.) If you need a lifetime warranty, then the MS105 is probably the better option. For us, we would get the MS305 with its 3-year warranty. These network switches have a very low AFR. Assuming a switch does not fail early, then there is little practical difference between the MS305 and MS105, except the $15 price difference.
While the Netgear MS305 may be our recommendation for a cheap NETGEAR 5-port 2.5GbE switch, there are many options out there that are significantly less expensive. Many want Netgear because they have had fanless 1GbE switches deployed for years so they trust the brand. If you are willing to branch out to different brands, you can see the Ultimate Cheap Fanless 2.5GbE Switch Mega Round-Up for other options.
Where to Buy
If you want to check the current pricing, here is an Amazon affiliate link. Note, we may earn a small commission if you buy using this link.
