When going through photos for an upcoming review, the team was talking about something that was really fun. We are using a system that has four 3000W liquid-cooled power supplies. Not only are they liquid-cooled, they also block airflow into the power supply, making them very different.
MiTAC Intel DSG 3000W Fanless Liquid Cooled PSU
The power supplies were originally made for Intel DSG servers. In 2023, we broke the news that Intel Exiting the Server Business Selling DSG to MiTAC. Although these power supplies are Intel-branded, they are DSG products used in the MiTAC servers.

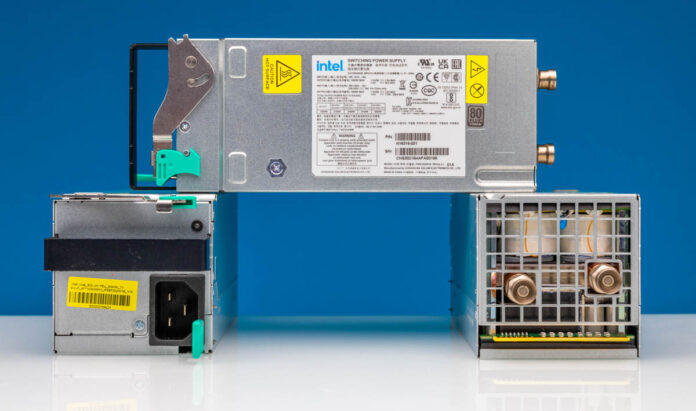

Here is the coolest part. The power supplies have liquid cooling inlet and outlet nozzles above the CRPS power supply PCB connector.
The power supplies are 3000W units that are 80Plus Titanium rated.
On the rear of the power supply, we get something really interesting: a solid faceplate. Most server power supplies have fans that pull air through the chassis and PSU and out of the chassis. Here, that pathway is blocked off by sheet metal.
This design is because an almost fully liquid-cooled server can instead use smaller numbers and fans to move air through the chassis.
Final Words
Some will look at a fanless liquid-cooled power supply and think, “Cool, but so what?” Removing the fan from a power supply removes a moving part that can fail, and that also uses power. It also is most useful on very highly liquid-cooled servers. You would typically not liquid cool a power supply unless the internal liquid cooling goes well beyond cold plates on PSUs or CPUs. This is really something used in higher-end liquid cooling designs. In other words, there are many liquid-cooled servers out there that do not get to this level of liquid cooling.
We will have the full system on STH in the next few days. This week is a very busy week, so we thought folks might like to see this one outside of the context of our full system review.
