Minisforum MS-01 Review The 10GbE with PCIe Slot Mini PC

40

Minisforum MS-01 Performance

Instead of going through the entire Linux-Bench test suite, we are going to show a few performance and power numbers here to give a general sense of performance. This also gives us the opportunity to test with Linux/ Ubuntu instead of just Windows.

Python Linux 4.4.2 Kernel Compile Benchmark

This is one of the most requested benchmarks for STH over the past few years. The task was simple, we have a standard configuration file, the Linux 4.4.2 kernel from kernel.org, and make the standard auto-generated configuration utilizing every thread in the system. We are expressing results in terms of compiles per hour to make the results easier to read:

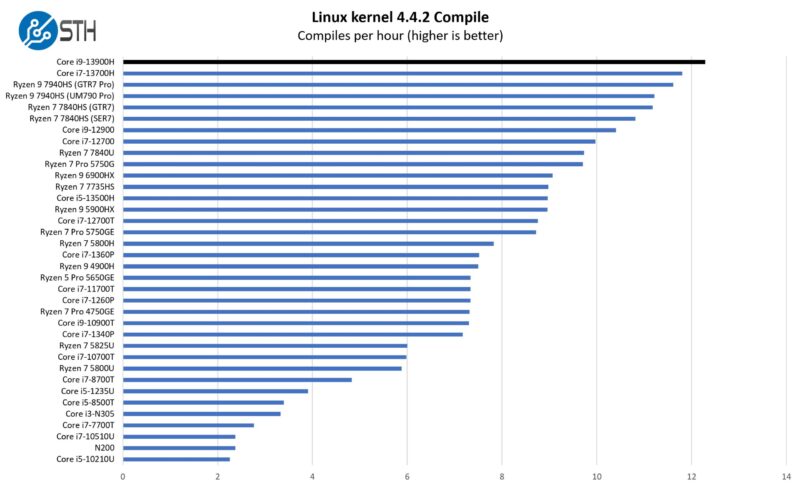

Intel Core I9 13900H Linux Kernel Compile Benchmark 1 Scaled
Intel Core I9 13900H Linux Kernel Compile Benchmark 1 Scaled

Overall one gets a very capable and fast processor with the Intel Core i9-13900H. It is faster than the Core i7, which we would expect. To us the big challenge with the Core i9-13900H is not the total performance. Instead, it is things like VMware ESXi not liking hybrid core designs.

7-zip Compression Performance

7-zip is a widely used compression/ decompression program that works cross-platform. We started using the program during our early days with Windows testing. It is now part of Linux-Bench.

Intel Core I9 13900H 7zip Compression Benchmark
Intel Core I9 13900H 7zip Compression Benchmark

Again, we get more performance here, and more performance than something like the Minisforum NPB7 which had the Intel Core i7-13700H.

OpenSSL Performance

OpenSSL is widely used to secure communications between servers. This is an important protocol in many server stacks. We first look at our sign tests:

Intel Core I9 13900H Open SSL Sign Benchmark
Intel Core I9 13900H Open SSL Sign Benchmark

Here are the verify results:

Intel Core I9 13900H Open SSL Verify Benchmark
Intel Core I9 13900H Open SSL Verify Benchmark

Again, we get great performance from this chip. Something to keep in mind though is that most home servers run at less than 25% CPU utilization as memory capacity is a limiting factor rather than CPU performance.

Geekbench Performance

Just as a quick check versus the SimplyNUC Onyx v9 in Geekbench 6 that uses the same processor.

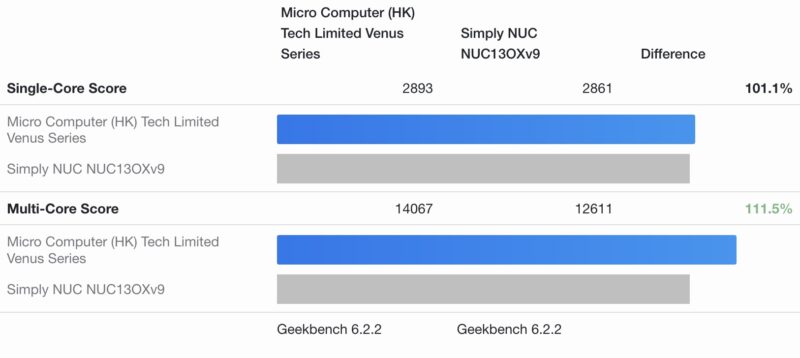

Minisforum MS 01 Versus SimplyNUC Onyx V9 Geekbench 6
Minisforum MS 01 Versus SimplyNUC Onyx V9 Geekbench 6

Part of this is just where systems throttle based on the Geekbench 6 workload. Other parts of this come down to the fact that the MS-01 by being larger is able to get a bit more cooling onto parts. We have discussed a number of times how we would trade a slightly larger chassis for better cooling, and this is a great example of that in action.

Next, let us get to the storage performance.

CrystalDiskMark SSD Performance

We took a quick screenshot with the three drives shown in photos earlier installed and just ran CrystalDiskMark to see what the results were.

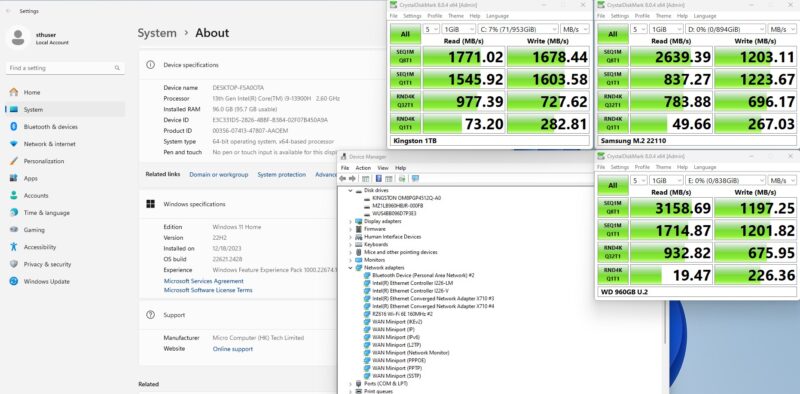

Minisforum MS 01 With Three SSDs 96GB Of Memory And NICs Shown Windows
Minisforum MS 01 With Three SSDs 96GB Of Memory And NICs Shown Windows

Overall, not the best results. At first, I was not very happy. Then two of our team members reminded me that those are still faster than SATA and 10GbE and that there are three drives, not two. Sometimes, just having fast enough storage that has more devices or more capacity can be very useful.

One may have noticed that we have 96GB of memory in the system, let us get to the plug fest next.
