Minisforum MS-01 Internal Hardware Overview

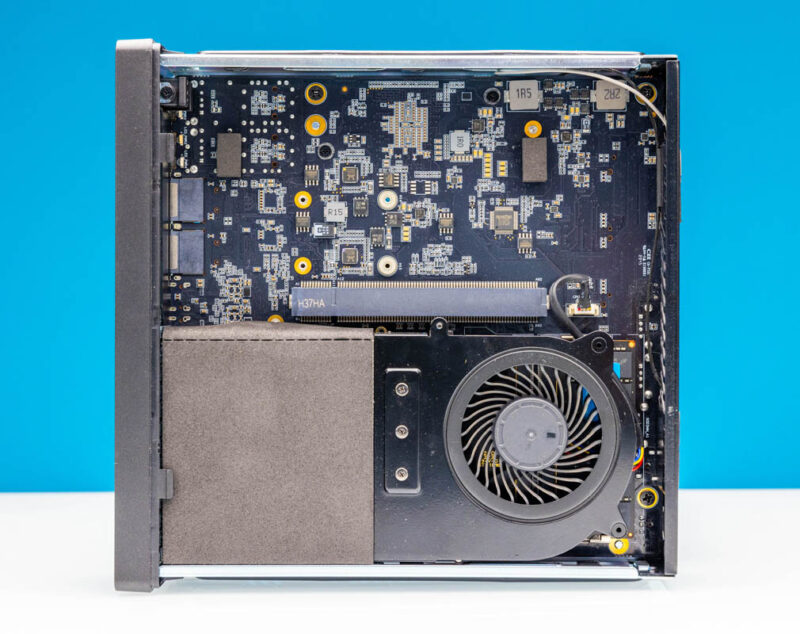

Inside the system, we get a configuration that is very Dell Micro or HP Mini-like. The CPU and memory are under a shroud at the bottom. Then the top is an expansion area.

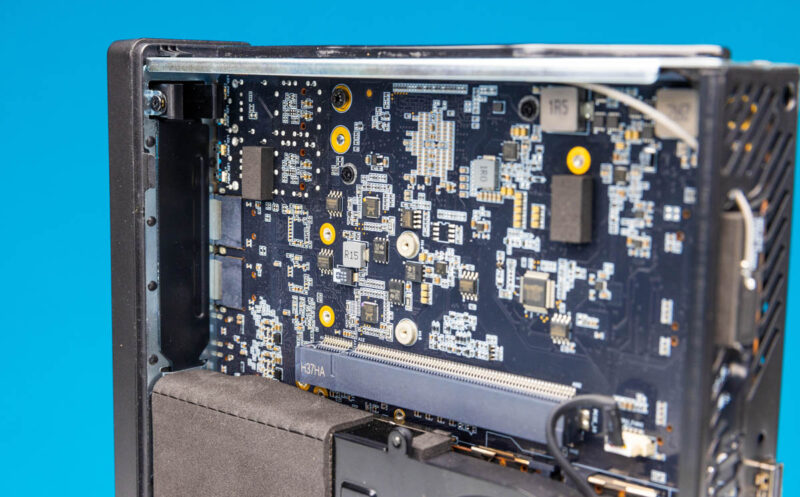

The expansion slot is a low-profile single-slot expansion. Minisforum says that this can take an NVIDIA RTX A2000 mobile GPU. We tried finding a seller on AliExpress, eBay or elsewhere that had this GPU in stock, and could not get it. When we asked Minisforum to validate this claim, they told us that in China there is a big modding community that has A2000’s for this slot. Instead, we plugged in a number of different cards that we will talk about on the second to last page of this review.
We are also going to have a listing of PCIe cards and memory modules we used in this system in this forum thread. If you get something working, please add it to that thread.
The fan requires three screws to remove. It would be nice if this was tool-less like on systems from companies like HP. Underneath the fan, we get two DDR5 SODIMM slots. Our system came pre-installed with 32GB (2x 16GB) Crucial DDR5-5600 SODIMM memory. We upgraded this to 64GB (2x 32GB) which is the maximum supported. We also used 2x 48GB for 96GB total. That is in the “it works but is not Minisforum supported at this time” category. We did not have issues during our testing with it and it was a primary configuration we used.
The CPU is the Intel Core i9-13900H. This is a very fast CPU with 6 performance and 8 efficient cores. It also has an integrated GPU for those who want the Intel iGPU for a desktop, Quick Sync transcoding, or the like. One item that is worth mentioning is that there is a Core i9-12900H option as well. The Core i9-13900H is probably more CPU than many folks will need. Personally, I might get the Alder Lake generation Core i9 instead just to save a few dollars. Initial pricing had the generational upgrade as a $130 or so price difference.

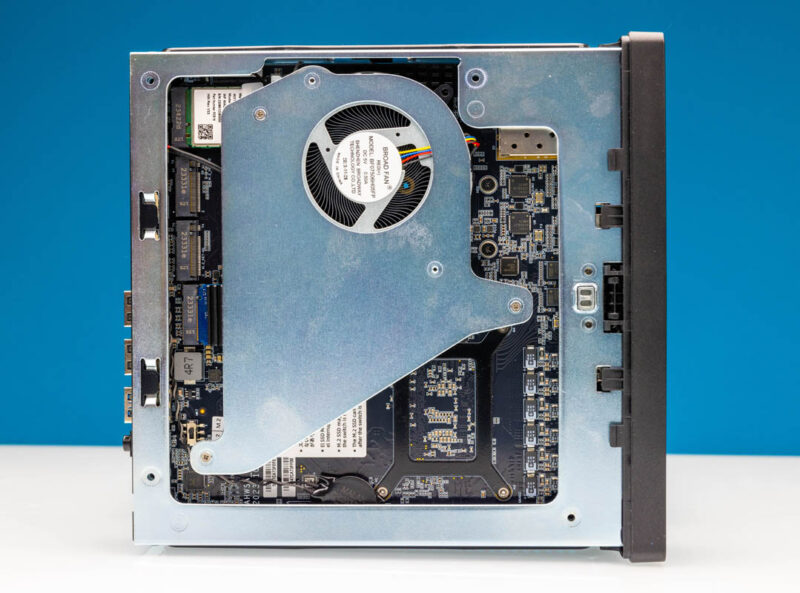

Turning the system over, we can see storage, networking, and another fan.
That fan is important as the plate it rests on has just enough room to fit a U.2 7mm SSD. As a result, it means a SSD with a heatsink can only be used in the default position, where the 1TB Kingston NVMe SSD is installed in this photo. The other two slots cannot handle heatsinks because of the fan.

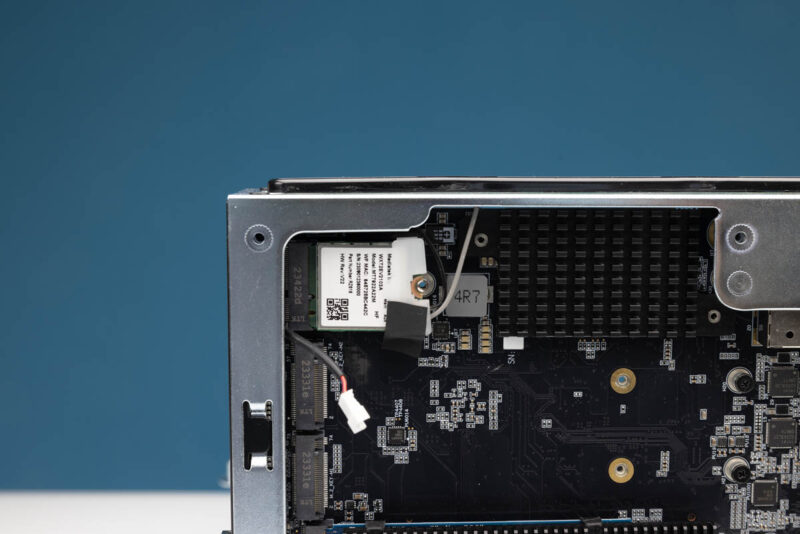

A somewhat odd find was the Mediatek RZ616 WiFi 6E solution. This is typically used in AMD systems, but here we have it in an Intel system.

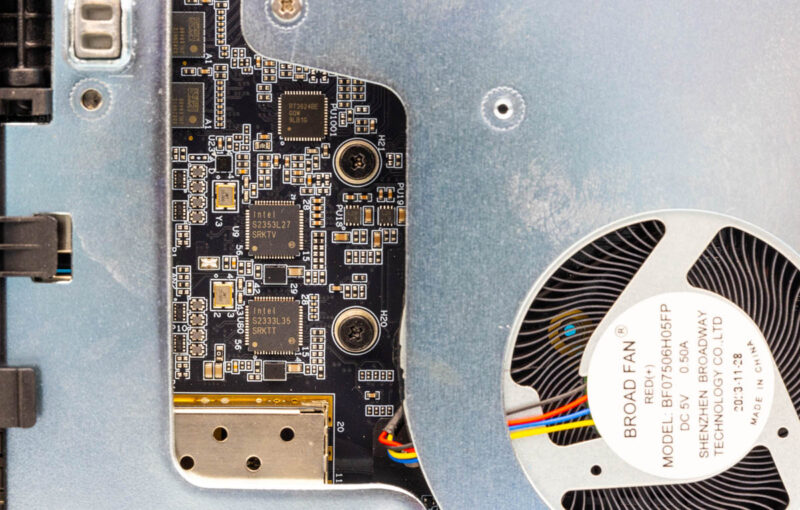

On the topic of networking, here is the Intel SRKTV and SRKTT which are the Intel i226-V and i226-LM NICs.
Here is the Kingston 1TB NVMe SSD installed in the primary M.2 slot.
That slot has something interesting. One can install a M.2 2280 (80mm) or 22110 (110mm) SSD in it, or one can decide to go a different route, and install a U.2 7mm SSD.

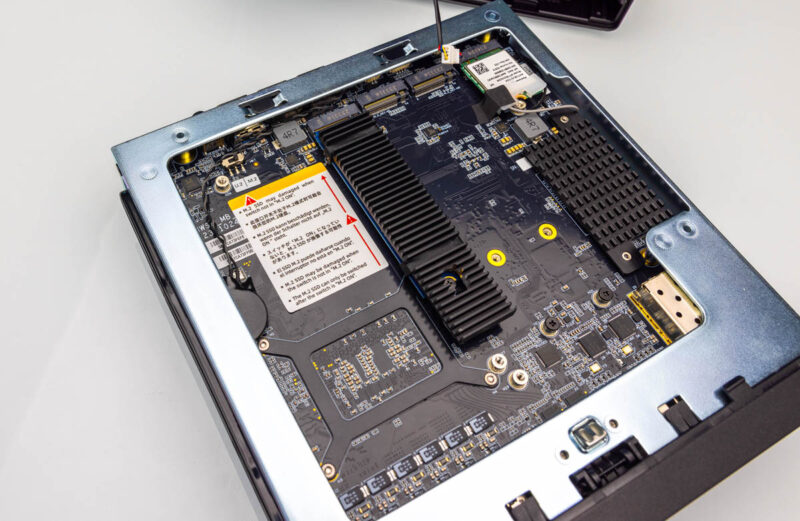

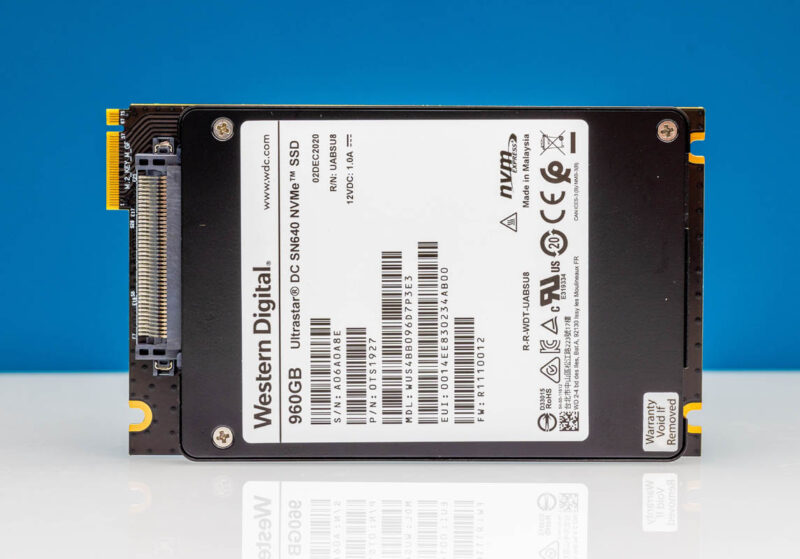

The system came with a M.2 to U.2 adapter. Of course, M.2 drives use a lot less power, so there is a switch on the motherboard, with a giant warning label, to change the M.2 slot to a higher-power mode. That switch is very important. If you have it set to the U.2 mode, and try installing a M.2 drive, there is a solid chance that it will damage the M.2 drive. Hence, the giant warning label.

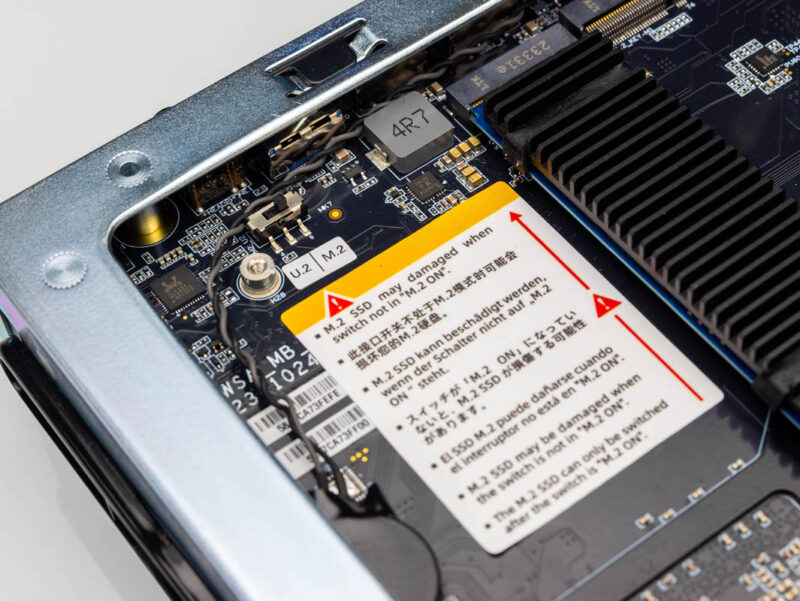

One challenge is that with the drive installed, one cannot see the label for the switch.

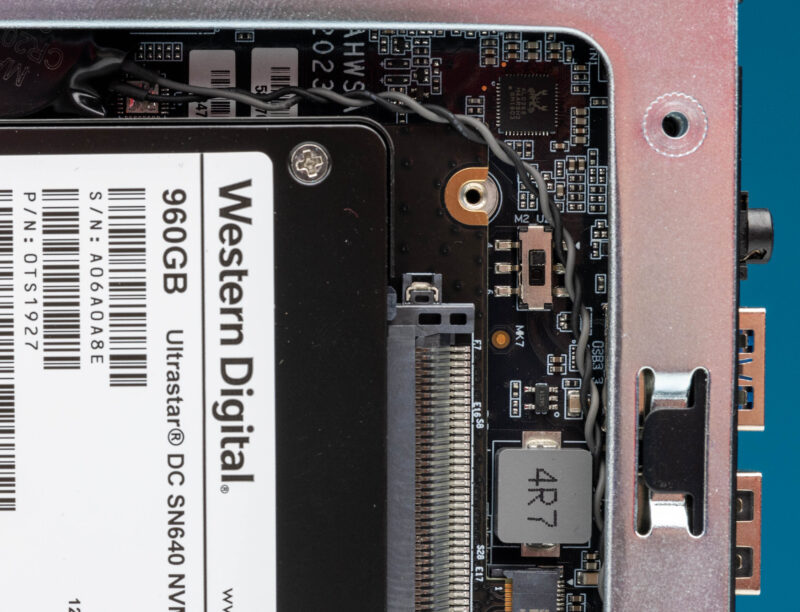

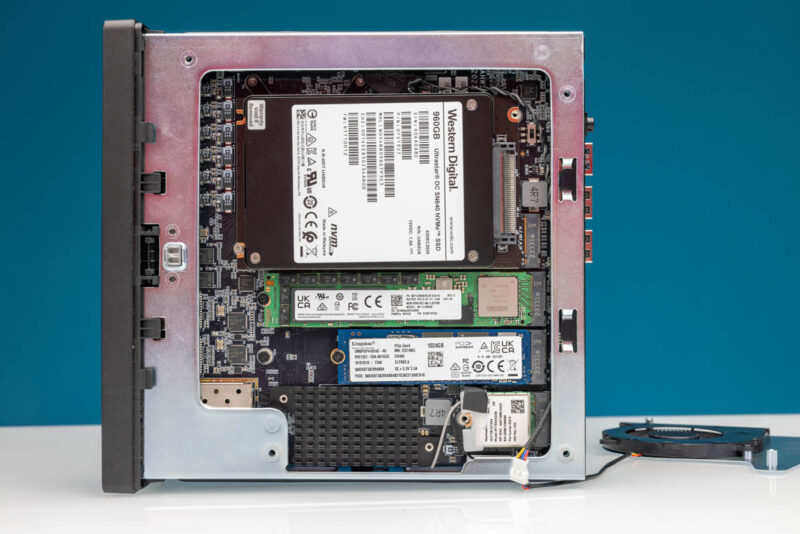

Here is an example with three drives installed and we cannot tell if it is in the U.2 or M.2 position. You can remove the U.2 drive to check, but that feels like something that could be better labeled in the system.
Of course, the benefit of this is that there are three M.2 drive slots that can take either M.2 2280 or M.2 22110 SSDs. That third can also handle a U.2 drive as one can see here:
Most mini PCs we see are limited to 1-2 M.2 2280 SSDs, so this is an expansion of capability beyond just the PCIe slot on the other side of the chassis.
