MikroTik CSS318-16G-S+IN Review A New Low Cost 10-in Switch

4

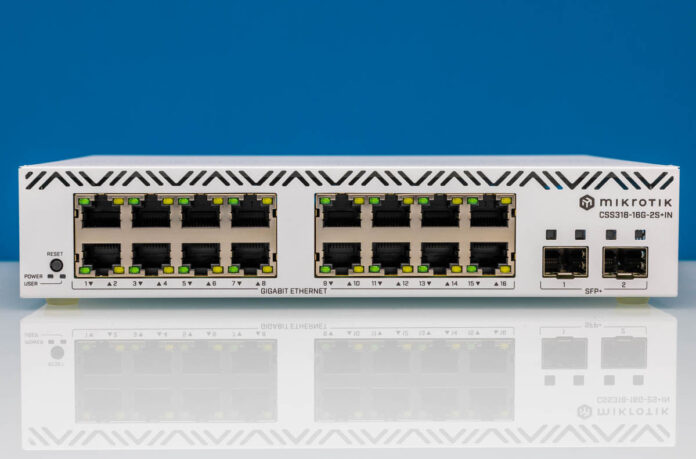

MikroTik CSS318 16G 2S+IN Front 2
MikroTik CSS318 16G 2S+IN Front 2

The MikroTik CSS318-16G-S+IN is straightforward in its approach. It is a 16 port 1GbE switch with two SFP+ 10G ports making it a bit less exciting than some of the recent 2.5GbE and PoE offerings we have seen from MikroTik. At the same time, it is designed to be less costly and to fit in 10″ racks as you may have seen from our recent Kenuco SOHO Mini 10in Rack Review. If you are looking for low-cost 1GbE connectivity in a half-rack 10″ form factor, for devices like the Raspberry Pi or NVIDIA Jetson Orin kits, then this might just be the best option out there.

As always, we have a video for this one:

We suggest watching the video in its own browser, tab, or app for the best viewing experience. Also, MikroTik sent us this unit before we could buy it so we have to say this is sponsored.

MikroTik CSS318-16G-S+IN External Hardware Overview

The switch itself is a desktop switch and comes with rubber feet, but it is also a 1U rack height switch designed to fit side-by-side in a 19″ rack or alone in the confines of a 10″ rack. We are going to have a section on that 10″ rack installation in this review.

MikroTik CSS318 16G 2S+IN Front 1
MikroTik CSS318 16G 2S+IN Front 1

On the left side we get a reset button along with sixteen 1GbE ports.

MikroTik CSS318 16G 2S+IN 1GbE Ports
MikroTik CSS318 16G 2S+IN 1GbE Ports

On the right side, we get our two SFP+ ports for 10G connectivity.

MikroTik CSS318 16G 2S+IN 10G Ports
MikroTik CSS318 16G 2S+IN 10G Ports

Something missing from the front is a lower-speed management port or a PoE-in port. Those are part of the cost optimization regime.

MikroTik CSS318 16G 2S+IN Side 1
MikroTik CSS318 16G 2S+IN Side 1

On the sides, we get vents.

MikroTik CSS318 16G 2S+IN Side 2
MikroTik CSS318 16G 2S+IN Side 2

On the rear, we see more vents.

MikroTik CSS318 16G 2S+IN Rear
MikroTik CSS318 16G 2S+IN Rear

We also get a three-prong AC power input. This switch does its AC-DC conversion internally.

MikroTik CSS318 16G 2S+IN Power Input
MikroTik CSS318 16G 2S+IN Power Input

On the bottom, we get a label and we stuck on the included rubber feet.

MikroTik CSS318 16G 2S+IN Label
MikroTik CSS318 16G 2S+IN Label

Next, let us get inside the switch.

MikroTik CSS318-16G-S+IN Internal Hardware Overview

The lid pops off using only a few screws.

MikroTik CSS318 16G 2S+IN Open
MikroTik CSS318 16G 2S+IN Open

Inside we can see a compact layout with the switch PCB taking up almost the entire interior of the chassis.

MikroTik CSS318 16G 2S+IN Internal Overview
MikroTik CSS318 16G 2S+IN Internal Overview

The switch chip is a Marvell Prestera 98DX2518.

MikroTik CSS318 16G 2S+IN Internal Label
MikroTik CSS318 16G 2S+IN Internal Label

At the top, we can see our AC input.

MikroTik CSS318 16G 2S+IN Internal Power Input
MikroTik CSS318 16G 2S+IN Internal Power Input

In the center is the Pairui AC-DC converter.

MikroTik CSS318 16G 2S+IN AC DC
MikroTik CSS318 16G 2S+IN AC DC

This is different from many of MikroTik’s other switches that have an internal power supply that is on a different assembly than the main switch PCB. Here it is all integrated.

MikroTik CSS318 16G 2S+IN Internal Top Right
MikroTik CSS318 16G 2S+IN Internal Top Right

Next, let us discuss management.
