MikroTik CRS320-8P-8B-4S+RM Management

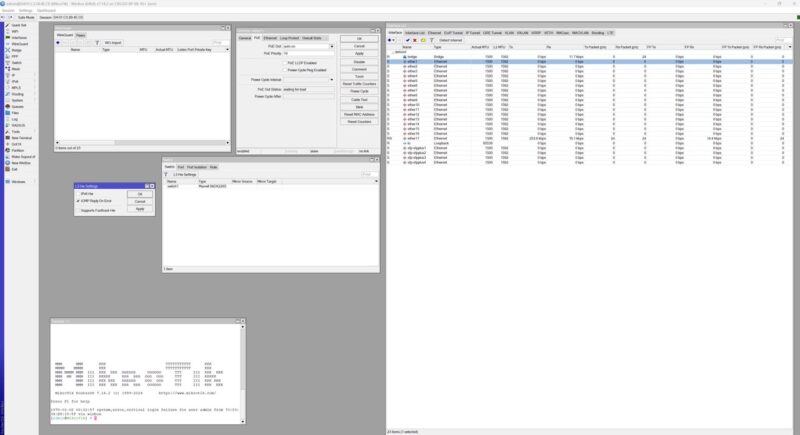

We are not going to spend a ton of time on the management since MikroTik has a lot of options including a CLI, a web interface, and a WinBox interface (that looks similar to the web interface and you can access the CLI on) shown below.
A cool feature of the CRS320 is that MikroTik has a power cycle button for the switch in the UI. Many of these switches are going to SMBs without dedicated network admins. For them, having a GUI is important since it is more accessible than a CLI. Having the ability to cycle power on a PoE port is important when there are devices that are hard to reach.

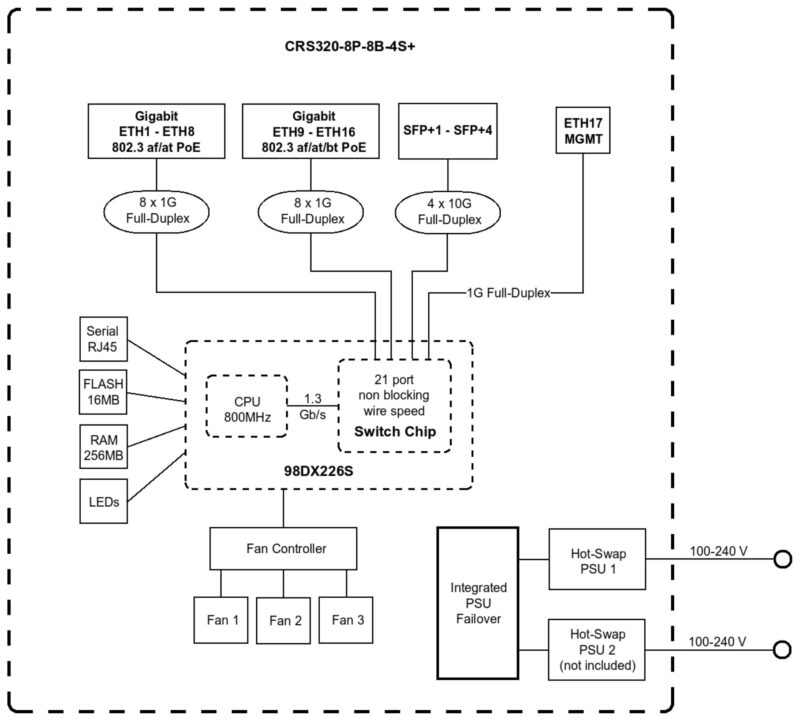

MikroTik CRS320-8P-8B-4S+RM Block Diagram
In the block diagram, we can see the Marvell Prestera 98DX226S. This handles all of the ports.
Something to keep in mind is that the link between the 800MHz 32-bit Arm dual core CPU and the main switch chip is only a 1.3Gbps link. As a result, if you are using the CPU for a networking feature, you are automatically going to be limited to 1.3Gbps maximum. Straight port-to-port traffic traverses the switch chip without going through this link.
MikroTik CRS320-8P-8B-4S+RM Performance

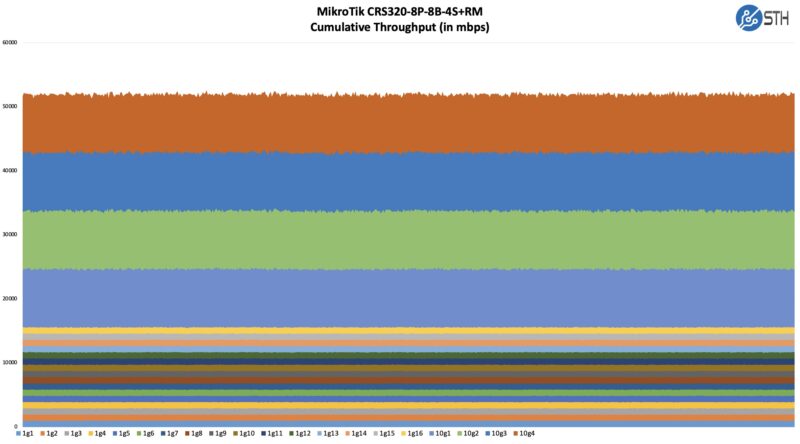

Here is a quick look at this in action.
As a note, we missed the management port. We typically hook this up to our management network since it is often a 100M port on other switches, and often goes through the management processor. This was a case where it was not, so we only tested the sixteen 1GbE ports and the four 10GbE ports.

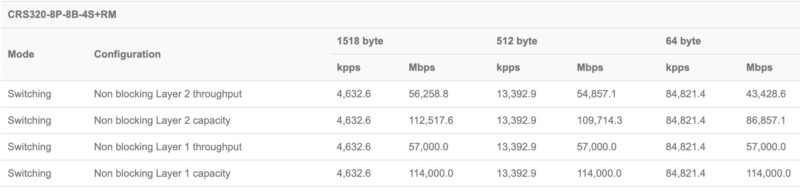

Here are MikroTik’s switching results:

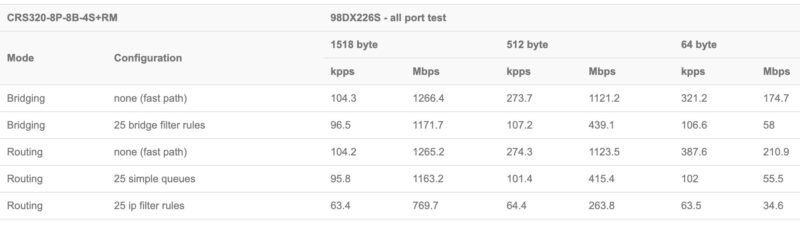

Here are the company’s bridging and routing results:
Of course, the big limitation here is that we are on 1GbE links, not 2.5GbE or faster for most of the ports. Also, the bridging and routing results clearly show the impact of hitting the CPU.
Next, let us get to power consumption.
