MikroTik CRS304-4XG-IN Internal Hardware Overview
Under the rubber feet are four screws. We pulled those out, and the bottom plastic cover popped off.

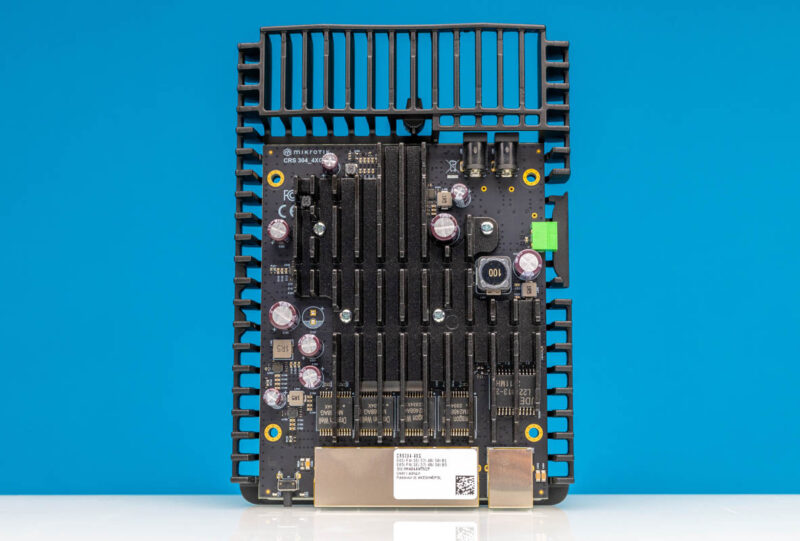

We could then remove the white plastic cover and see the switch PCB. Or perhaps it would be better to say we could see the heatsinks that sandwich the PCB.

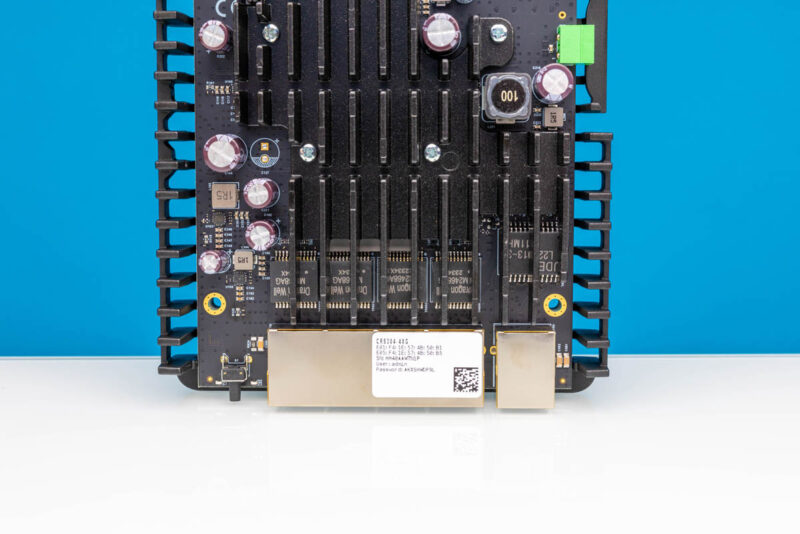

A small note if you ever lose the manual and cannot see the outer label with the MAC addresses and default password. If you open the switch, there is a label with the MAC addresses and default password printed in black and white. This may not be a big deal when you first purchase and deploy it, but if you are reading this in 2-3 years servicing one that someone else has deployed, that information may come in handy.

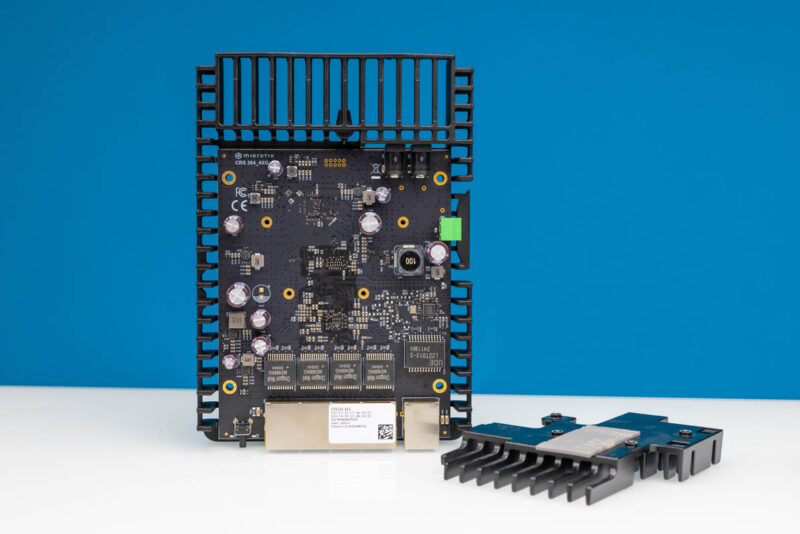

At this point, we were excited to pull off the heatsink and see the switch chip.
That was a disappointing exercise. It seems the top heatsink is there solely to help dissipate heat from the center of the PCB using a thermal pad as an interface.

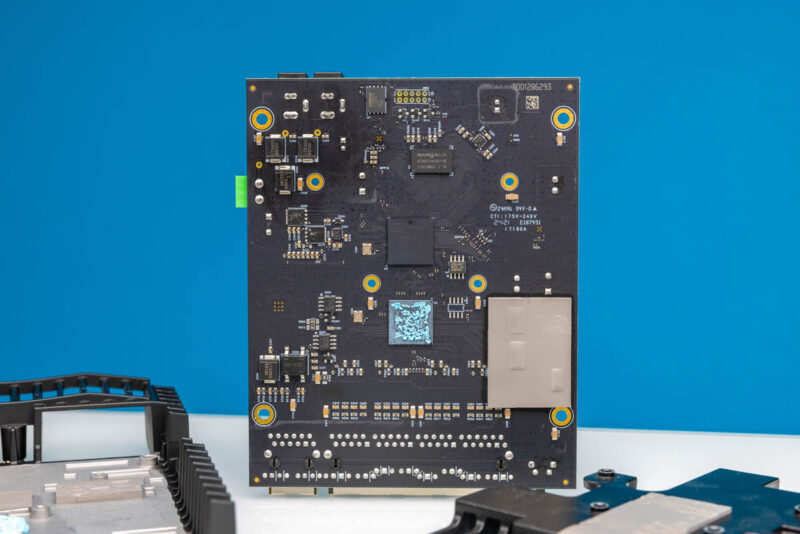

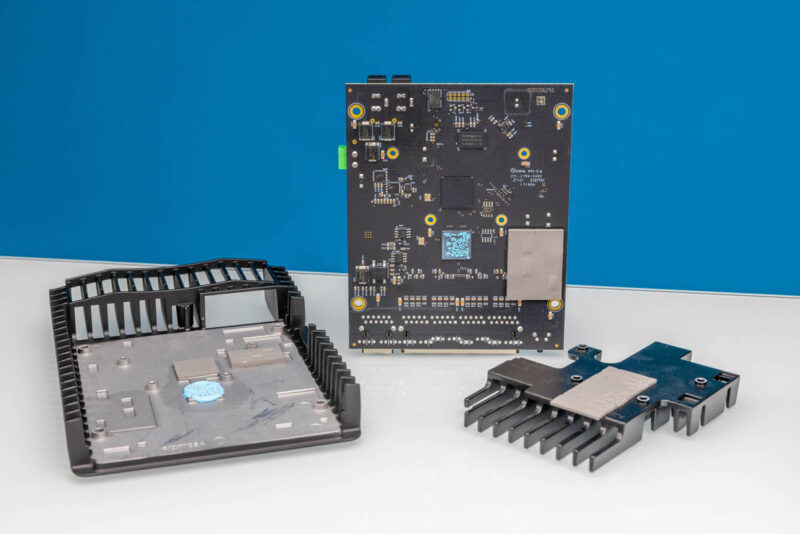

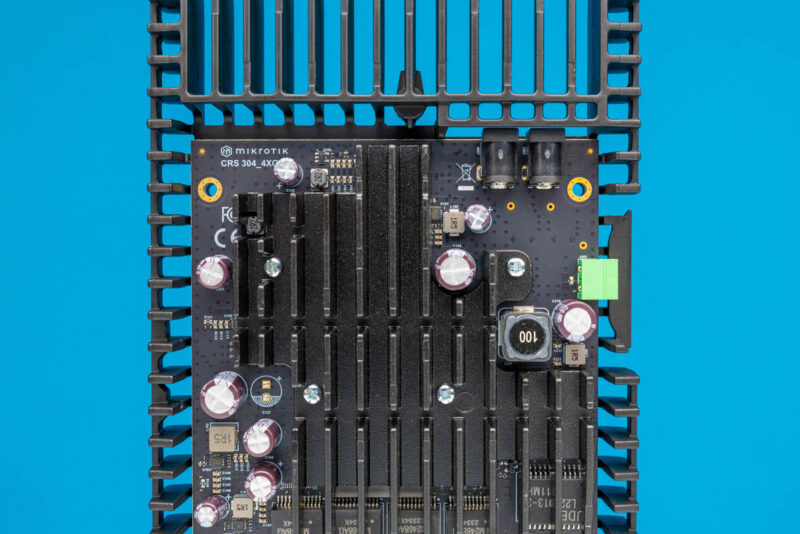

Flipping the switch over and removing the big structural heatsink we see what we came here for, the switch chip and PHY.
The heatsink is molded specifically for this switch. Someone spent extra time designing this cooling solution, and it shows. If you look a passive heatsinks on many of the cheap mini PCs we review, the heatsink may contact the CPU and NICs, but the rest is often a flat surface. This has multiple thermal pads and indentations for components on the PCB. There was a lot of effort put into this heatsink and it is why the switch feels so sturdy.

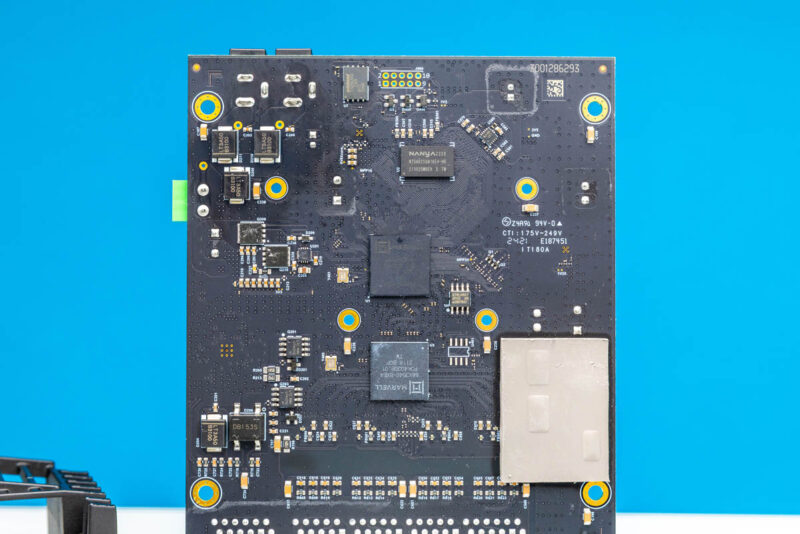

Here, we can see the DRAM package and, more importantly, the two main chips in this solution.
It is a little bit strange that the two Marvell chips use different thermal interface materials. If you were wondering about that pad still on the PCB, our best guess on why it is there is actually to cool the component on the other side of the PCB since it is barren underneath.

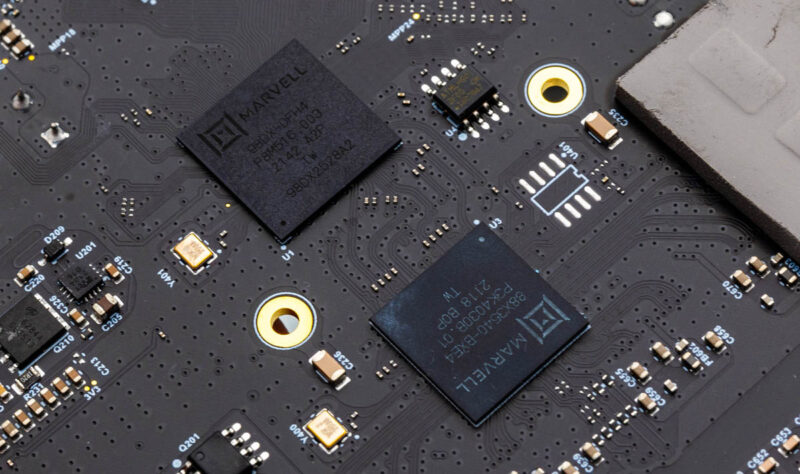

The solution here is a two-chip Marvell solution. Patrick thinks this is very similar to the Ubiquiti USW-Flex-XG to the point that we just ordered a new one of those to double-check. For the main switch chip, we have a Marvell Prestera 98DX2528.

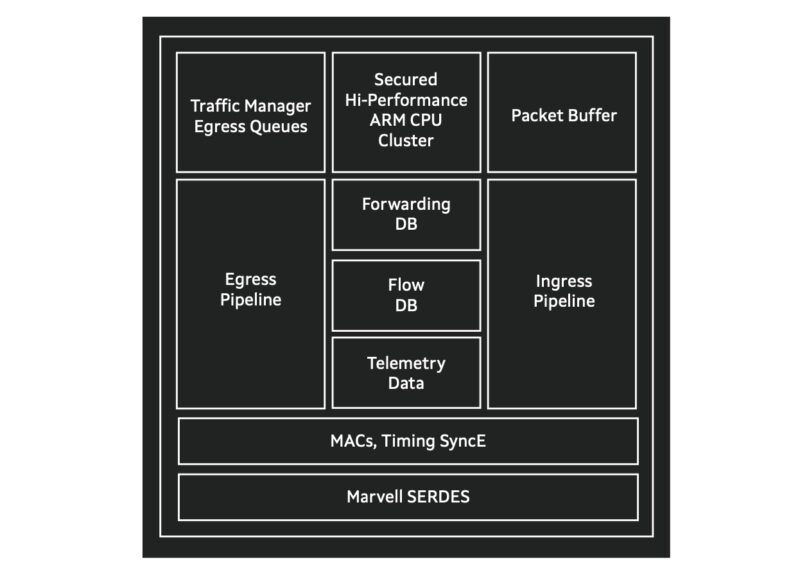

Here is the block diagram for the switch chip.

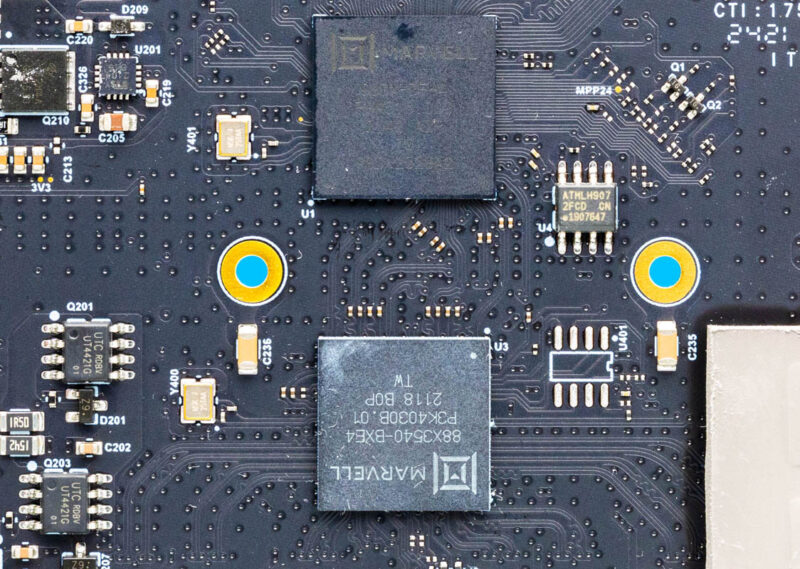

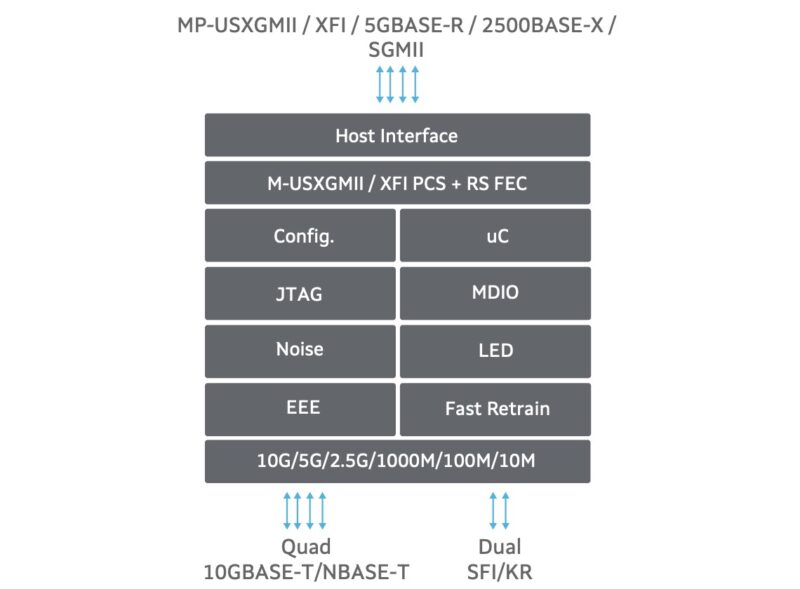

For a PHY, MikroTik is using the Marvell 88X3540-BXE4. This is a 4-port 10GbE PHY from Marvell that is part of the company’s Alaska series. The Alaska PHY series has been around for many years. Supermicro and many others use the 1GbE Alaska PHYs as higher-quality solutions than Intel’s built-in solutions on its embedded motherboards. You can go back to 2013/2014 and the Intel C2750 with Supermicro A1SAi-2750F Platform to see the Alaska series on STH.
For 10Gbase-T, one big challenge is simply driving and receiving a clean signal over the copper wire. Using a high-quality PHY means that the link stays up and a useful signal makes it across the wire.
Looking at the cooling design of the switch, it is clear that the PHY here is one of the hotter parts of the design. When we discuss why 10Gbase-T tends to use more power for a switch or even a SFP+ to 10Gbase-T module, the big driver of that is usually the PHYs. MikroTik went with a well-known Marvell Alaska, which is great.
