At FMS 2024, we saw the SMC 2×00 CXL memory controller, along with several devices that it powers. Not only did we see a few more traditional memory expansion devices, but we also saw a fascinating non-volatile memory module from SMART.
Microchip SMC 2×00 CXL Memory Controller and Devices
Here is the controller shown at the show. The little placard says it is a CXL 2.0 DDR4 or DDR5 memory controller.
![Microchip SMC 2x00 CXL Memory Controller At FMS 2024 1](https://www.servethehome.com/wp-content/uploads/2024/08/Microchip-SMC-2x00-CXL-Memory-Controller-at-FMS-2024-1-800x478.jpg)

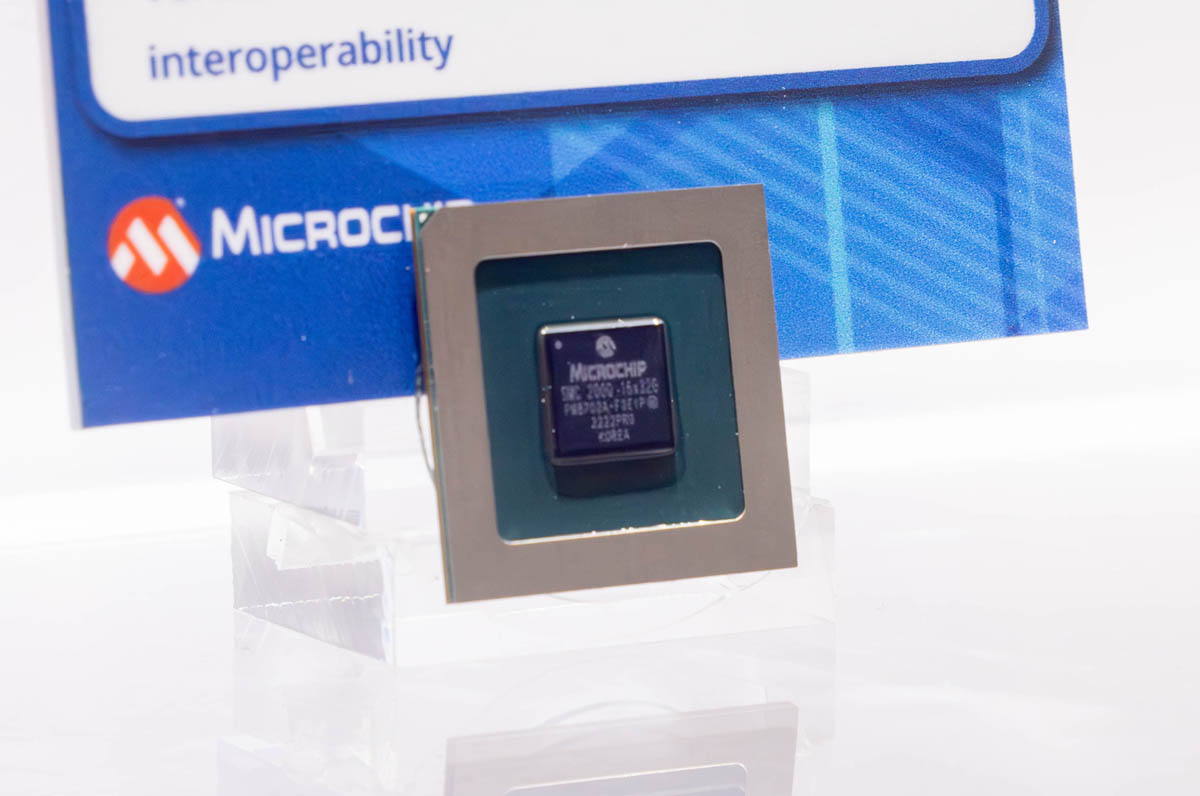

Here is a closer shot of the chip.
![Microchip SMC 2x00 CXL Memory Controller At FMS 2024 2](https://www.servethehome.com/wp-content/uploads/2024/08/Microchip-SMC-2x00-CXL-Memory-Controller-at-FMS-2024-2-800x531.jpg)
Microchip also had a few devices. One is a Micron CZ120 that we have seen before. The SMART CMM-E3S is a 128GB E3.S module.
![SMART CMM And Micron CZ120 Based On Microchip SMC 2x00 CXL Memory Controller At FMS 2024 1](https://www.servethehome.com/wp-content/uploads/2024/08/SMART-CMM-and-Micron-CZ120-based-on-Microchip-SMC-2x00-CXL-Memory-Controller-at-FMS-2024-1-800x441.jpg)
The most interesting one, however, might be the DDR4 ECC module, which has its own energy source to be used as a non-volatile DRAM source. This is really cool since it could potentially be an option to replace NVDIMMs in systems.
Here is a more traditional DIMM solution where the memory is installed on a PCIe card.
![SMART CXA 4F1W Based On Microchip SMC 2x00 CXL Memory Controller At FMS 2024 1](https://www.servethehome.com/wp-content/uploads/2024/08/SMART-CXA-4F1W-based-on-Microchip-SMC-2x00-CXL-Memory-Controller-at-FMS-2024-1-800x568.jpg)
There was also a Longsys 512GB CXL Memory Expansion Module. This card was absolutely huge. At the same time, adding eight DIMMs per card and then multiple cards per system is a neat way to add a lot of memory.
![Longsys 512GB CXL Memory Expander Based On Microchip SMC 2x00 CXL Memory Controller At FMS 2024 1](https://www.servethehome.com/wp-content/uploads/2024/08/Longsys-512GB-CXL-Memory-Expander-based-on-Microchip-SMC-2x00-CXL-Memory-Controller-at-FMS-2024-1-800x464.jpg)
CXL was featured more at FMS 2024, so this was great to see.
Final Words
With the 2H 2024 processors, we are going to hear a lot more about CXL 2.0 as that is a key feature. We thought this one was a fun one so we wanted to show the Microchip SMC 2×00 controller devices. This has come a long way since we covered the Microchip SMC 1000 For The Serial Attached Memory Future designed for IBM devices.
