Today we are taking a look at a classic tower server from Lenovo. The Lenovo ThinkSystem ST250 V2 is in an interesting space as the end of the DDR4 generation using the Intel Xeon E-2300 series. For many, the ST250 series is a great platform to run SMB servers, and over time, this ST250 V2 may become a great option for those on a budget.
Lenovo ThinkSystem ST250 V2 External Overview

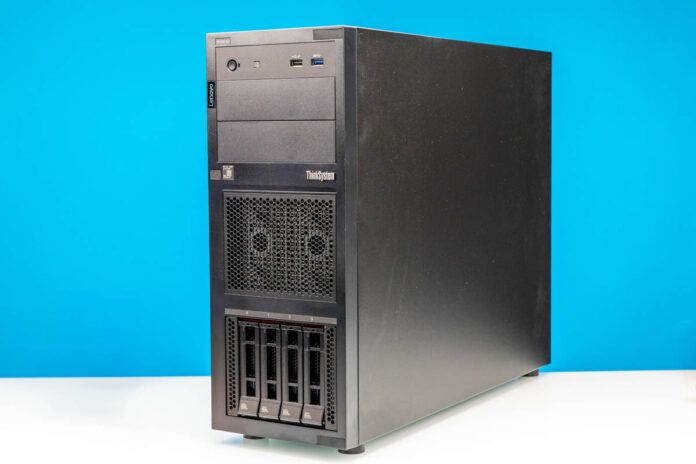

The server itself looks much like tower servers before it. Lenovo has a conversion kit that can turn this into a 5U rackmount server, but we did not have that.
On the top, we get a power button, ID light, service USB port, and a USB 3 port. Perhaps the more exciting feature to some are the two 5.25″ bays that can be used for devices like optical drives.
In the middle, our system did not come with anything installed, but this is a flexible bay that can be used for drives.
Our system had the four drive bays installed at the bottom of the chassis.
Moving to the rear, there are options for fixed 250W or 300W power supplies. Our test system had a single 550W PSU and the option to add a second for redundancy.
The rear center is a large fan next to the rear I/O. This system has a serial port, a VGA port, and four rear USB 3 Type-A ports. Networking is provided via two 1GbE NICs. The other NIC port is the out-of-band management port, but you can also use NIC1 as a shared NIC for management and data.
The bottom section has four PCIe slots. We have an optional dual 10Gbase-T Broadcom NIC installed in slot 2.
Next, let us get inside the system.
