Lenovo ThinkCentre M75q-2 Tiny Performance
Instead of going through the entire Linux-Bench test suite, we are going to show a few performance and power numbers here to give a general sense of performance. One quick note here is that we are using dual-channel memory in the same configuration as we did for the Ryzen 4750GE because that is important for performance.

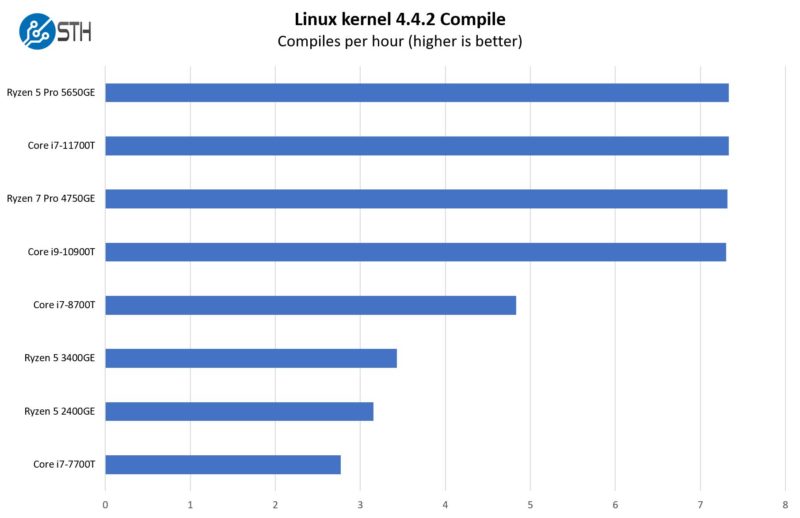

Python Linux 4.4.2 Kernel Compile Benchmark
This is one of the most requested benchmarks for STH over the past few years. The task was simple, we have a standard configuration file, the Linux 4.4.2 kernel from kernel.org, and make the standard auto-generated configuration utilizing every thread in the system. We are expressing results in terms of compiles per hour to make the results easier to read:
This is an area where two things are happening. First, the Ryzen 5000 series cache is doing extremely well. Second, AMD is holding much higher clock speeds than some of the 8-10 core count Intel units. This is a bit of an anomaly, but if you are comparing this to older generation parts, the new Ryzen 5000 series is very fast. That is also why we say it is equivalent to 12-16 Intel Xeon E5 V1 cores.

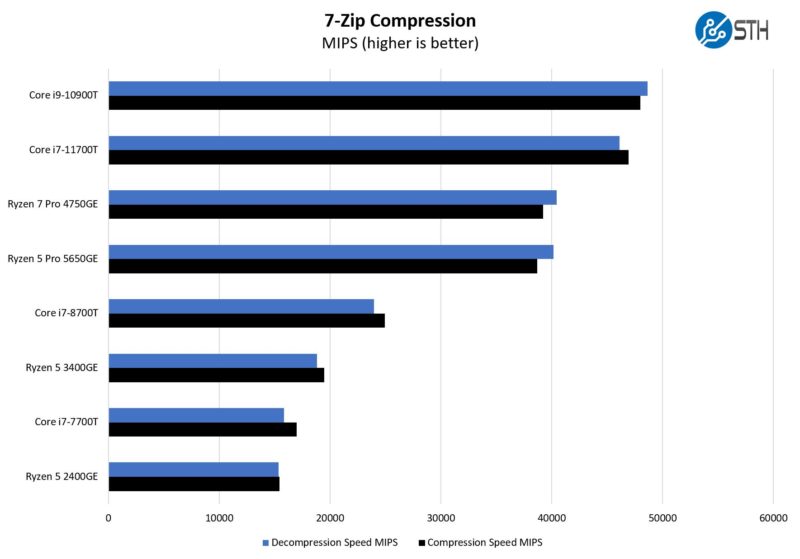

7-zip Compression Performance
7-zip is a widely used compression/ decompression program that works cross-platform. We started using the program during our early days with Windows testing. It is now part of Linux-Bench.
Here the AMD Ryzen 7 Pro 4750GE pulls ahead and that makes sense. The Intel chips do too. At the end of the day, there are limitations to having only six cores.
OpenSSL Performance

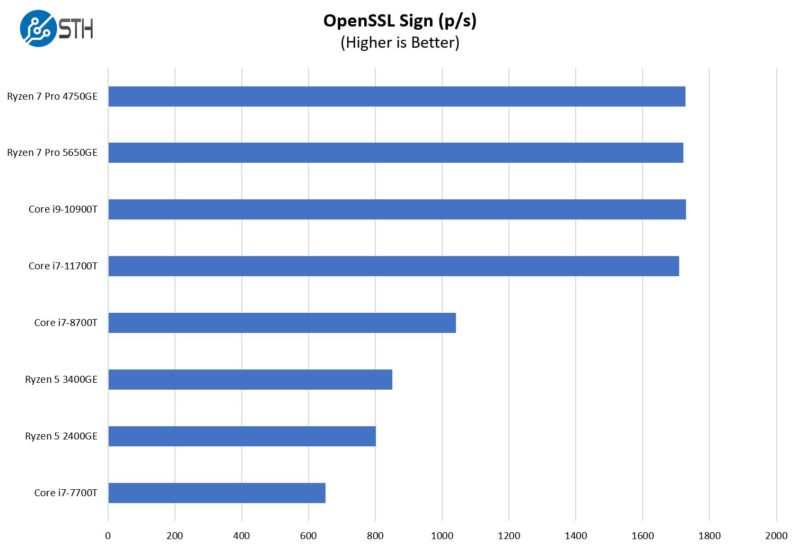

OpenSSL is widely used to secure communications between servers. This is an important protocol in many server stacks. We first look at our sign tests:

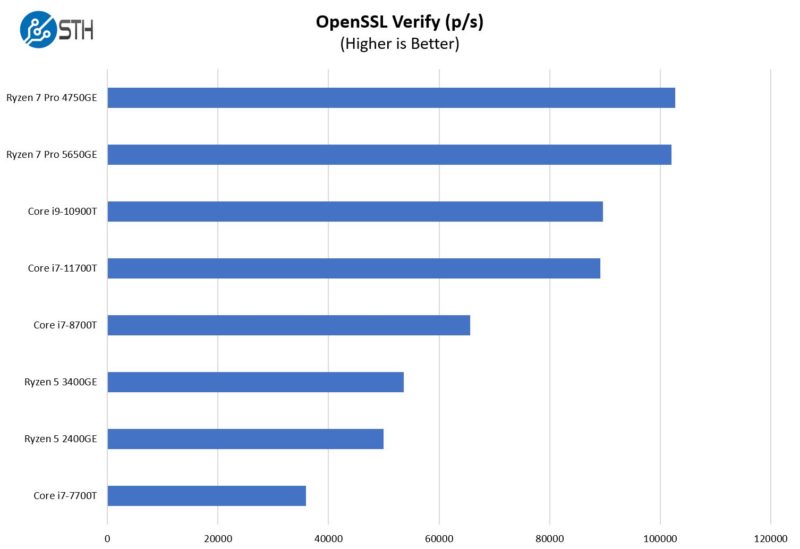

Here are the verify results:
Here AMD is doing well. We saw with the Core i9-10900T series that it was severely thermally limited in the M90q Tiny so that is worth keeping in mind.
Overall, the AMD Ryzen 5 Pro 5650GE performed very well. It is a bit at the mercy of trading a smaller number of cores for higher clock speeds and Zen3. It is certainly very competitive though.
Next, we are going to discuss power consumption before getting to our final words.
