LattePanda Sigma Power Consumption and Noise

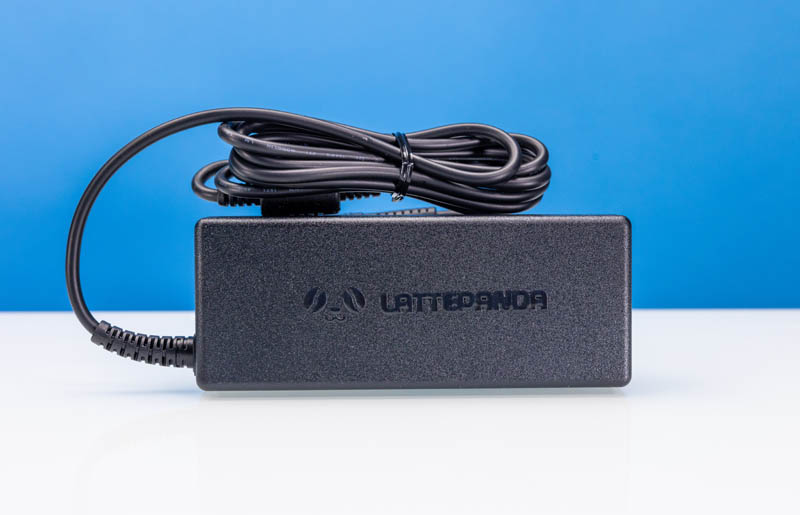

The power adapter situation was a bit better than we expected. The adapter even had the LattePanda logo and branding.

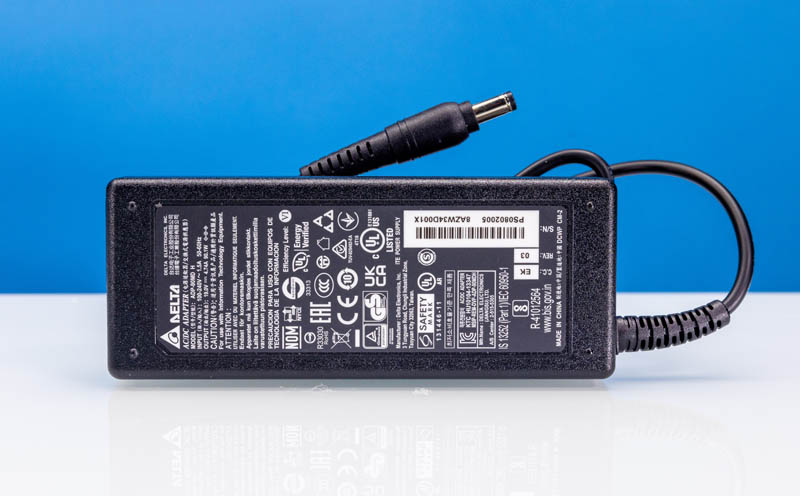

The power supply is a Delta 90W unit. A standard DC barrel jack makes this an easy solution.
Since we get the question a lot, we also showed this being powered via a USB PD adapter through a Thunderbolt 4 port. We showed it with a nice little USB PD power meter (Amazon Affiliate Link.)
Overall power consumption saw idle power in the 5-8W range and a top end in the 45-52W range depending on which adapter we were using.
The noise was also very low on the system. It was quieter than many of the Raspberry Pi 4B fans we have tried over the years with a less than 1dba increase to noise above our studio’s 34dba noise floor at idle and under 3dba under max load.
Key Lessons Learned

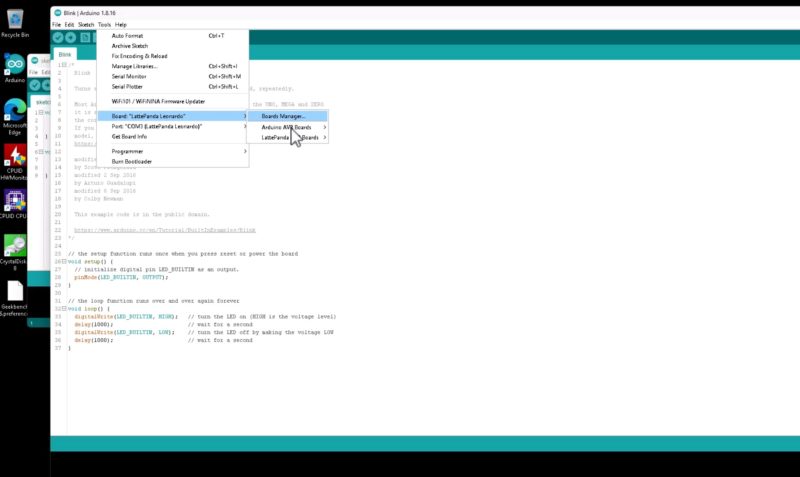

While having an Intel Core i5-1340P and in-band ECC support is good itself, this is not just a mini PC. Instead, it has an onboard Microchip controller, and runs Arduino. The Arduino IDE runs out of the box and the GPIO connectors make the system attractive to maker/ SBC applications.
On the customization side, having a built-in array of M.2 slots really helps expandability especially given one can easily use three 4K displays (four with eDP) and one also has Thunderbolt 4 for more expansion.
Between Arduino, many ports and expansion slots, a fast CPU, in-band ECC, and the ability to add Thunderbolt 4 devices there is a lot here. It is meant to do great projects with. At the same time, having soldered memory instead of expandable SODIMMs means we are stuck with 16GB or 32GB of memory instead of up to 96GB. On a system that lets you do so much, this stood out even if it was for the trade-off of lower power and higher memory bandwidth.
Final Words
When we agreed to review this system, we thought it was going to be like many other SBCs we have used, perhaps even like the ODROID-H2+. Instead we got something completely different. This SBC is the size of a 3.5″ hard drive, but it has a massive amount of ports, expandability using standard components, and Arduino support. This is almost like a Raspberry Pi or other development board style system, but with the performance of an Apple Mac Mini M2 or other mini PC. All of that with the added benefit of having in-band ECC support. We were pretty far off from our initial impression of the device was when we saw the e-mail with the unit and when it arrived and we started using it.
With that said, the one thing that feels completely missing beyond SODIMM memory, is simply a case. Perhaps the idea is that one 3D prints or CNC’s a case. At the same time, we put RPi 4B’s in cases, and this only had a partial chassis.
Overall, this is one of those where if you wish you had a mini PC that had Arduino support, or an Arduino platform that had a dedicated mini PC attached, you will really like. Still, one has to take the jump from an ultra low-power/ low performance system to something that is faster like this LattePanda Sigma.
Where to Buy
Buying the LattePanda Sigma has been challenging as they have been out-of-stock. Here are a few places to look:
Note these may be affiliate links so we may earn a small commission if you purchase using these links
