Testing Intel QAT Compression
We are going to ease into this one. We need a few things to get this working. Here we are going to look at five cases compressing the Calgary Corpus. This is a well-known old data set of data to compress. What we are going to do is use Intel’s QATzip, which you can find on Github. We are also going to be using Intel’s ISA-L (Intelligent Storage Acceleration Library) also on GitHub. We are doing this specifically to have the ability to use one program and hook in the QAT hardware accelerator. For those that assume that just because we are using Intel projects for QAT, AMD’s performance is going to be poor, hold that thought for the discussion of the results.
What we are showing is a view of running five cases:
- Intel Xeon D-2776NT with:
- No ISA-L nor QAT (base case)
- ISA-L
- QAT Hardware Acceleration
- AMD EPYC 3451 with:
- No ISA-L (base case)
- ISA-L

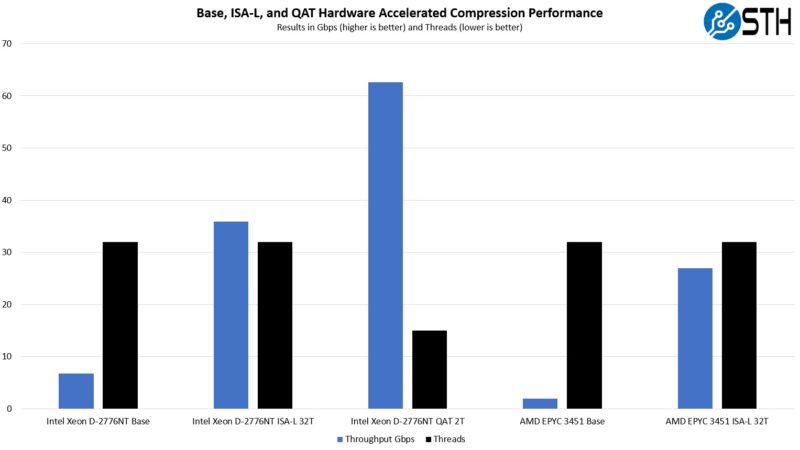

We are going to express these in two ways, one is looking at performance and the number of threads used:
As we can see with the base case, the AMD EPYC 3451, using all 32 threads, is not performing better than the Xeon D-2776NT. This is different from what we saw on the previous exercise looking at the EPYC 7003 “Milan” and the Ice Lake mainstream part.
We can also see that ISA-L compression performance gets a huge bump on both Intel and AMD. This is another one that when we did the mainstream processors, the Zen 3 architecture was faster, but the lack of updates in the embedded line means that is flipped.
Using the onboard hardware accelerator takes only 2 Ice Lake generation Xeon D-2700 cores to reach that ~65Gbps mark.

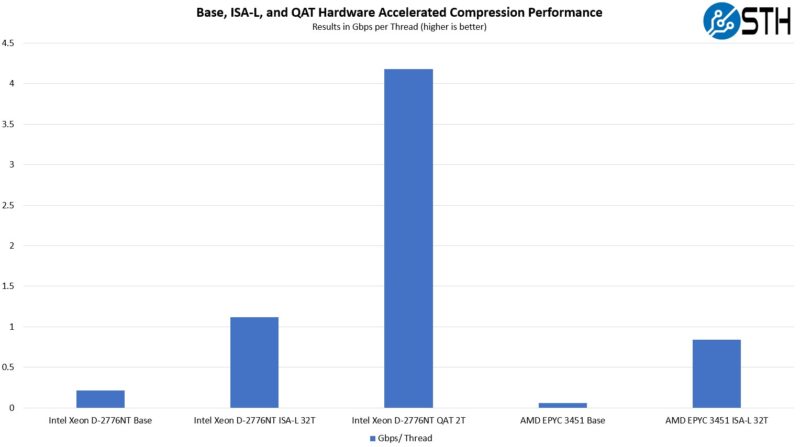

Here is the second view looking at the throughput per thread:
As you can see, the ISA-L is a big improvement in either Intel or AMD, but the QAT hardware acceleration gap again is absolutely massive. To put it into perspective, we got about 5x better performance per thread using ISA-L, but around a 19-20x improvement in throughput per thread using QAT.
When we looked at the mainstream server processors, it took 43 threads on Intel and 34 on AMD for our base cases, and those were running on physical cores. With only 16 cores and 32 threads, we just went for the best performance possible using all cores and threads, but using SMT is why the performance per thread here is different. That is very important in this space and for accelerators. Here we are getting better performance with two cores instead of using the entire chip for less performance.
QAT hardware powers compression for a number of commercial storage vendors. My go-to example is Dell EMC PowerStore. Storage vendors figured out this QAT offload years ago, and the cost is relatively minimal in many cases. Offering storage compression using QAT became very inexpensive because of this type of hardware acceleration.
Next, let us look at the crypto side and look at the IPsec VPN performance.
