While we generally focus our higher-speed networking efforts on 25GbE and faster products these days, 10GbE and specifically 10Gbase-T have been around for some time. The big benefit, which is hard to ignore, is that one can run higher-speed networking on existing wiring. In our Intel X710-T4 review, we are going to take a look at this solution from Intel to address higher-density quad-port 10Gbase-T needs.
Intel X710-T4 Quad-port 10Gbase-T NIC Overview
This particular card one may initially think is older technology since it is 10Gbase-T. That is not the case. Intel previously had 10GbE NICs in its 500 series such as the X540-T2 and X550-T2. Those cards were based on the Intel 500 series which uses the ixgbe driver and was designed for the 10GbE generation. If you have an Intel Xeon D-1500 series, then you have an embedded 500 series NIC. As time progressed, we saw the Intel 700 series launch which we covered in 2014 via 40GbE Intel Fortville XL710: Networking will never be the same.
Over time, that 700 series IP has gone from only covering the 40GbE market to also covering the 10GbE market. Specifically, we looked at this in our Intel X710-DA2 OCP NIC 3.0 Review and 3rd Party Intel X710-DA4 Quad 10GbE NIC Review. The Intel 700 series IP is also used in the Lewisburg PCH NICs (not the refresh for 3rd Gen Xeon Scalable), in the Xeon D-2100 series, and elsewhere. One of those places is now in the quad 10Gbase-T space.

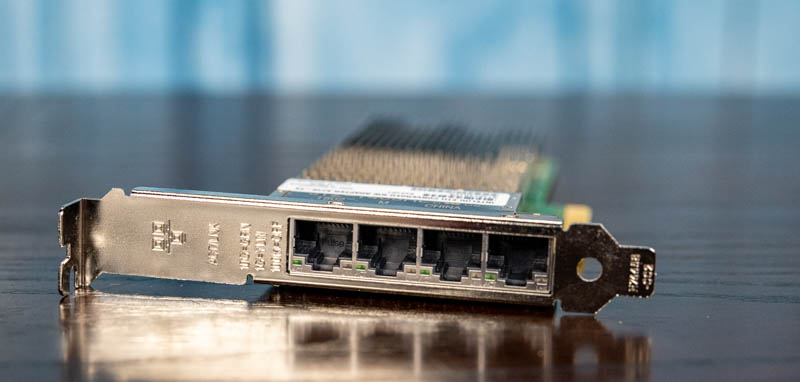

The Intel X710-T4 has four RJ45 ports as one would expect. One can also see that the card is a low-profile design so we can use either low-profile or full-height brackets. Intel did have to make a small concession here. Specifically one can see the block of RJ45 ports extends further down than on many cards below the main bottom line of the card’s PCB. There is a screw for the bracket on top of the unit so Intel had to do this to make a low-profile card.

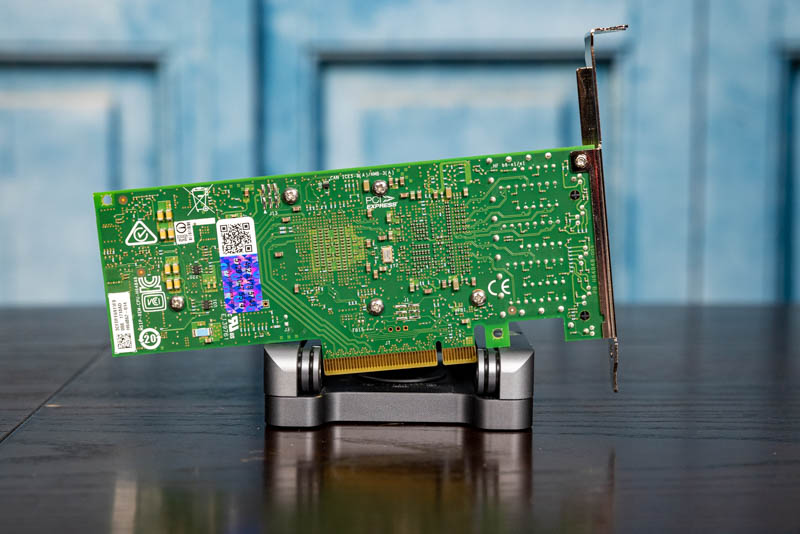

Since this is based on the Intel 700 series IP, this is a PCIe Gen3 x8 card. The Intel X540-T2, for example, is a PCIe 2.1 card. The X550-T2 is a dual-port 500 series card with PCIe Gen3 support. While the X550-T2 can be a PCIe 3.0 x4 card with only two 10Gbps ports, the X710-T4 with four 10Gbps ports needs to be a PCIe 3.0 x8 card to not limit bandwidth via the PCIe bus.

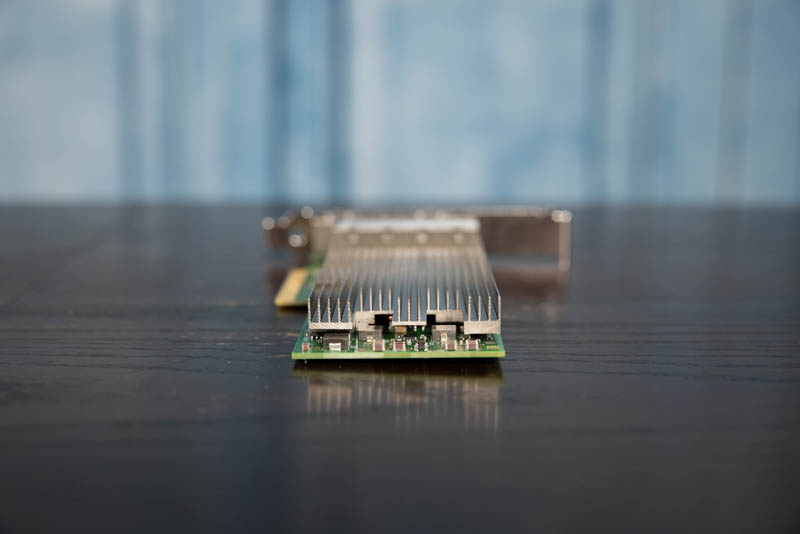

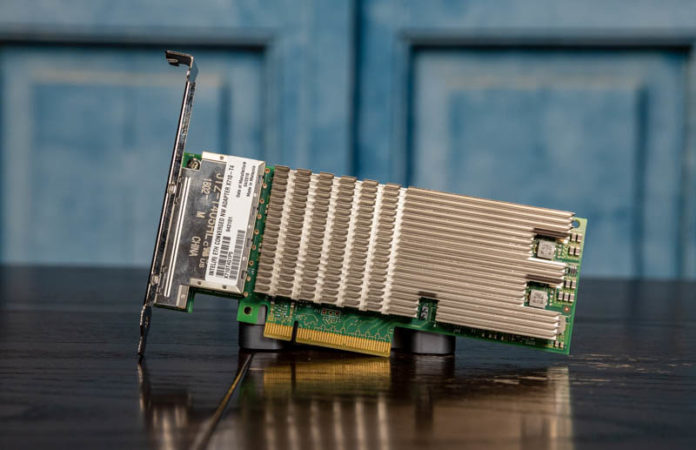

One will notice there is a fairly large passive heatsink on this compared to some of even the 40GbE cards we have seen. This is far from a low-power card. Indeed, we were able to fairly consistently get this card to pull around 24W which is in-line with the specs which are 23.7W typical and up to 28.9W. This clearly uses a lot of power.
Aside from the power, one may notice that Intel released an updated card in Q3 2020 called the Intel X710-T4L. We wanted to discuss that briefly.
Intel X710-T4 v. X710-T4L
Some may wonder what the difference is between these two cards. One may wonder why there was an updated X710-T4L and it appears as though there are a few big changes.
First, the X710-T4 has the Intel X710 controller while the X710-T4L uses the X710-TM4. That changes a number of options. Both are rated for CAT6 to 55m and CAT6a up to 100m at 10Gbase-T speeds. The X710-T4L is rated for up to 100m using 2.5Gbase-T 5Gbase-T even on CAT5e/ CAT6. So the new unit is compatible with 2.5GbE/5GbE longer runs on many existing wiring segments where the older card is not.
The second one we found is how we realized there was a difference, and that is in supported port speeds.
Here is the ethtool output for one of the ports on the X710-T4 card:
Supported ports: [ TP ]
Supported link modes: 100baseT/Full
1000baseT/Full
10000baseT/Full
Supported pause frame use: Symmetric
Supports auto-negotiation: Yes
Supported FEC modes: Not reported
Advertised link modes: 100baseT/Full
1000baseT/Full
10000baseT/Full
Advertised pause frame use: No
Advertised auto-negotiation: Yes
Advertised FEC modes: Not reported
Speed: 10000Mb/s
Duplex: Full
Port: Twisted Pair
PHYAD: 0
Transceiver: internal
Auto-negotiation: on
MDI-X: Unknown
Supports Wake-on: g
Wake-on: g
Current message level: 0x00000007 (7)
drv probe link
Link detected: yes
We did not have the X710-T4L, but we had a lab server with the new -TM controller built-in. Here is the port output from that setup:
Supported ports: [ TP ]
Supported link modes: 100baseT/Full
1000baseT/Full
10000baseT/Full
2500baseT/Full
5000baseT/Full
Supported pause frame use: Symmetric
Supports auto-negotiation: Yes
Supported FEC modes: Not reported
Advertised link modes: 100baseT/Full
1000baseT/Full
10000baseT/Full
2500baseT/Full
5000baseT/Full
Advertised pause frame use: No
Advertised auto-negotiation: Yes
Advertised FEC modes: Not reported
Speed: 10000Mb/s
Duplex: Full
Port: Twisted Pair
PHYAD: 0
Transceiver: internal
Auto-negotiation: on
MDI-X: Unknown
Supports Wake-on: g
Wake-on: g
Current message level: 0x00000007 (7)
drv probe link
Link detected: yes
This may seem similar at first, but the difference is large. The newer controller adds support for 2.5GbE and 5GbE speeds.
One other item we looked up is power consumption. On the quad-port model, the Intel X710-T4L is rated at 13.6W typical and 14.2W maximum. Those are over 10W lower than the 23.7W typical and up to 28.9W on the X710-T4.
For many of our readers, the original X710-T4 may be deployed in networks and may be the SKU they search for. In reality, the X710-T4L seems to be a major update.
Intel X710-T4 Performance

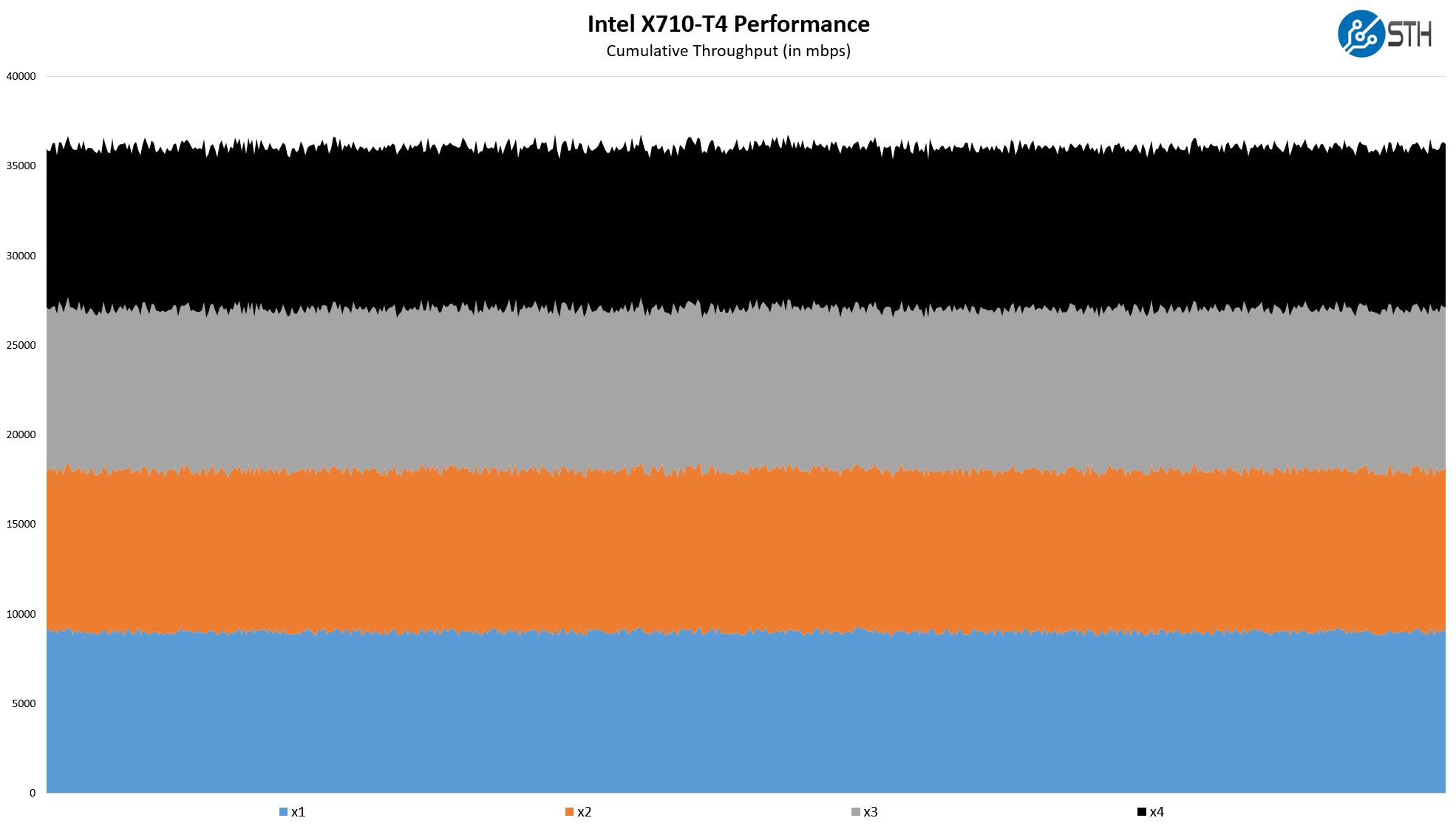

We received about the performance we would expect from a solution like this:
There is not much that we are going to go into here, other than validating that this indeed is a quad 10Gbase-T card, not a quad 1Gbase-T card. If you are looking for a specific feature, check out Intel’s documentation which is generally very good for networking products.
Final Words
This is an interesting product at STH. Technically it is a current-generation product that is qualified by a number of server vendors, and it does exactly what it states it will. At the same time, aside from vendor qualifications, we have difficulty justifying this card over an X710-T4L card even though we have not tested the latter. Again, we have a number of systems that integrate the newer controller though, so it is not that we have no experience with the new chip, it is just not with the specific model.
With all that said, 40-50% power savings, 2.5GbE/ 5GbE support, and better cabling support at effectively the same price point make it extremely difficult for us to recommend this card now that the X710-T4L is out. Just before publication and this X710-T4 is still on sale and being sold in systems from a number of vendors. We understand that once a piece of networking gear is qualified, organizations like to stick with the solution and not change. At the same time, for STH readers looking at cards, we are going to push away from this card in 2021 and recommend looking at the X710-T4L instead.
