Bleu Jour Fanless Industrial NUC with the Intel Core i7-1260P
This is the BleuJour META 12, a fanless industrial-style NUC. It also has the Intel Core i7-1260P onboard. The bottom half of the unit is an Intel NUC while the top is essentially a heatsink.

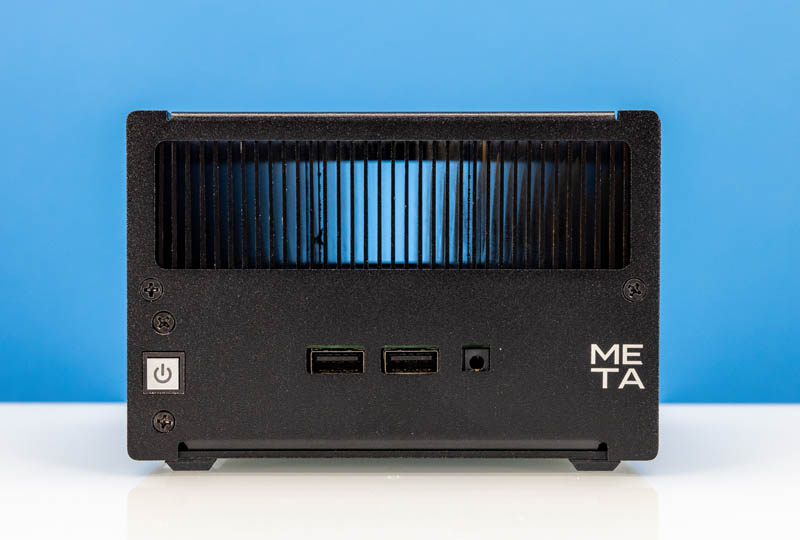

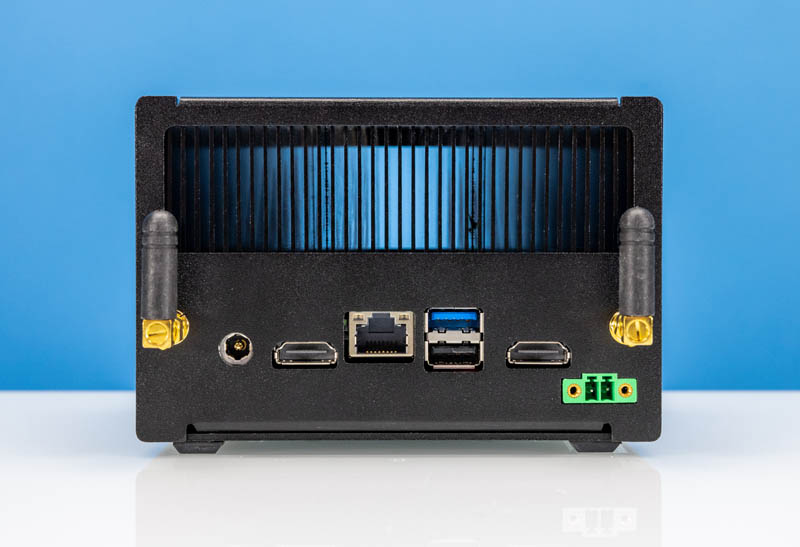

From the port configuration, the front will look very similar to the Intel NUC 12 Pro. The rear will as well, except that the two Thunderbolt ports are absent. Also, the WiFi antenna mounting is external, allowing for larger units. The Meta 12 also has a more industrial-style DC power input that can be secured via screws versus the less secure DC barrel jack (although that is present as well.)

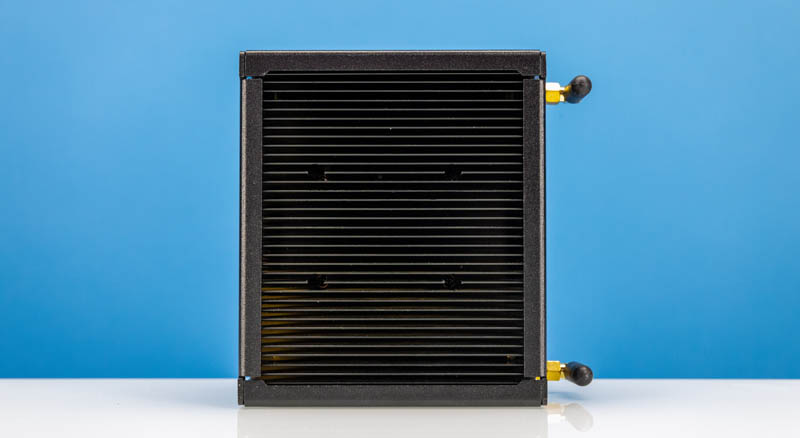

The top of the unit is mostly just large heatsink fins to cool the CPU. The bottom has mounting holes. One piece of feedback is that it is harder to service inside this system because the bottom does not come off quickly and easily. Instead, many screws and chassis disassembly are required. If this is running a factory tool, for example, replacing or upgrading a SSD will take longer just due to the fact this does not have an easily accessible area like the Intel NUC and many other units we review.
Opening the chassis, we can see the two Crucial 8GB DDR4-3200 SODIMMs but this time a lower-power WD Blue SN570 1TB SSD. We are using the lower-speed SSD since it is lower power and generates less heat. The META 12 does not have a cooling solution for the SSD like the Intel NUC 12 Pro.

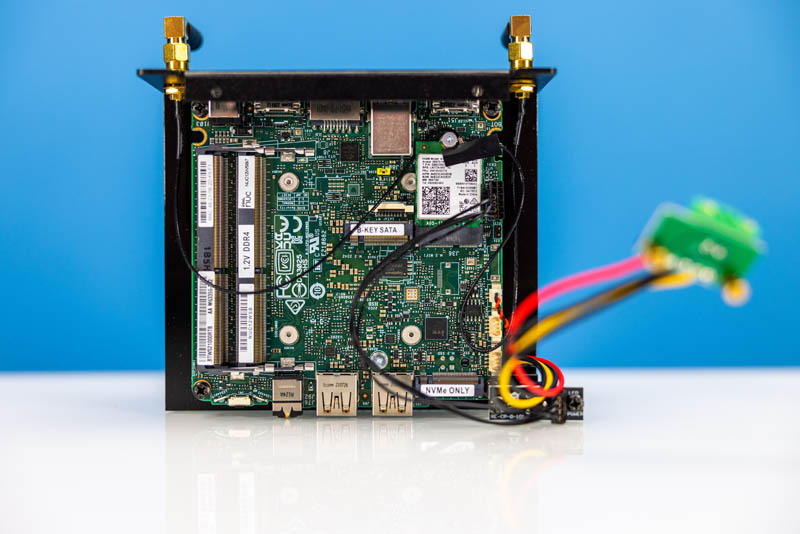

Here is the unit without drives and memory. It is very similar to the NUC 12 Pro that we saw earlier.

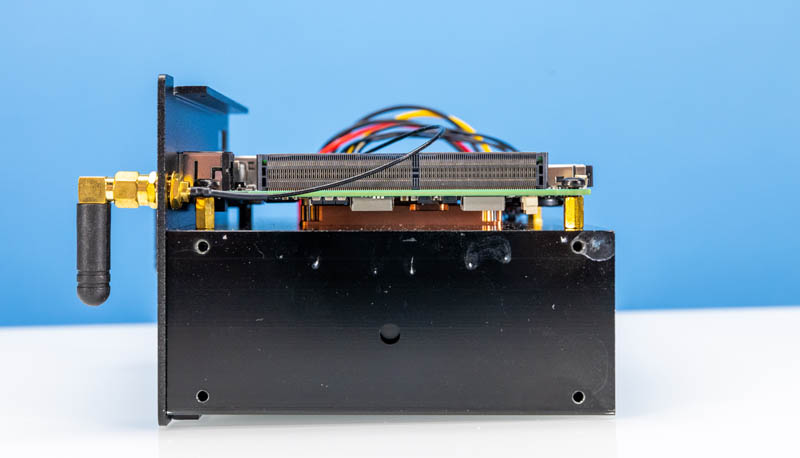

Instead of the fan assembly, there is a fairly large copper block to transfer heat from the CPU to the chassis. Taking a look to the top of the side-view, one can see just how much room is in the chassis above the memory and storage. This area can heat up since there is not a lot of cooling for these components. Even the newer AliExpress Intel Celeron J6413 Powered 6x i226 2.5GbE fanless firewalls have started to focus more on cooling other components outside of the CPU.
Still, the point of Intel sending us this platform was to highlight how its partners are using the Intel NUC for more than traditional desktops.
Next, let us get to the performance.
