With the release coming in a few days, we had a talk at Hot Chips 2024 on Intel Lunar Lake. This is the company’s next-generation AI PC part for mobile. Intel is doing a lot of integration and making some major changes compared to Meteor Lake, so this is going to be a significant generational move.

Please note that we are doing these live at Hot Chips 2024 this week, so please excuse typos.

Intel Lunar Lake for AI PCs at Hot Chips 2024

Lunar Lake is going to be released soon, but the idea is to have better performance and performance per watt than Meteor Lake.

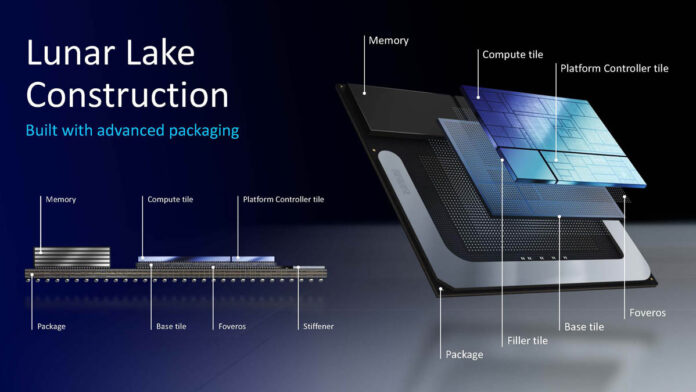

Intel is using different process nodes for different tiles here, which is becoming more common. Something big in this generation is the inclusion of memory on-chip. This is like designs from companies like Apple, NVIDIA, and some high-end HPC processors where the memory is integrated, rather than being in LPCAMM, SODIMM, or DIMM form.

Intel is only going up to 32GB. One of the challenges is that Intel has to buy the memory from another vendor, which lowers the chip’s margins. 64GB chips will have a lower margin than 32GB because more cost is lower margin DRAM. Apple, of course, charges silly amounts for additional memory so it manages to get great margin due to vertical integration in its systems. This is one of those interesting areas where we can see competition and financials in the industry impacting the performance.

Next, Intel is getting into the SoC structure, including the chiplets and compute tile. Here, we can see the four P cores with 3MB of cache, IPU, GPU, memory subsystem, and more all on the same die.

Lunar Lake has a memory side cache. This is an 8MB physical cache, meant to reduce DRAM traffic.

The E-core cluster now has 4MB of L2 cache, its own power delivery and so forth. E-cores are not the old Atom cores. They are quite fast these days. There are now four E-cores here instead of two in Meteor Lake. The memory side cache is being used here as well for higher performance.

A big part of Lunar Lake is the power delivery and management. There are now 4 PMICs for the SoC. The PMICs are allegedly the same but replicated and managed independently.

These PMICs help optimize the SoC’s power delivery and efficiency. The E-core cluster is designed to handle most workloads today as they have become faster. Intel also says that the sleep states are much faster to get in and out of.

Intel still has things like Thread Director as well as workload classification to place workloads on the right core resources.

The Lion Cove P-Core is a major change. This feels like one of, if not the, biggest change for Intel in a long time.

Intel says the new design database is modernized to help transition to different processes and among different designs and power envelopes.

Here are the high-level highlights of Lion Cove. Intel says that they have gone through performance and efficiency optimizations. The biggest change might be that SMT or Hyper-Threading has been removed.

Intel says that the new core is driving around a 14% performance gain on an IPC basis. that is important since clock speeds may be different. It also says that it can deliver double-digit performance per watt compared to the previous generation.

Intel is optimizing a lot on the lower end of the power scale. Intel says removing Hyper-Threading helped them get more efficient at low power.

Here we also have the Skymont E-core, designed to take over more workloads.

Here are the highlights of Skymont:

On the low-power island, the Lunar Lake to Meteor Lake delta is huge. Intel says this is the microarchitecture, but also caches, system latencies, and more, so this is not just straight microarchitecture gains.

Here is the performance per watt or performance for the power plot for the new low-power island E-core. Something to note is that the power line goes longer than the Meteor Lake one.

Here is a look at latency for the different parts of Lunar Lake and Meteor Lake cores.

Here is the core-to-core latency look. Those are better than what we have seen in some recent generations of server chips.

Here are the two curves for the E-cores and P-cores in Lunar Lake.

This is an example of how Microsoft Teams are being used. Teams needs to go to P-cores on Meteor Lake.

On Lunar Lake, Intel thinks it can keep everything on E-cores.

Intel says its new GPU architecture, Xe2 will go to client SoC iGPU as well as in dGPU designs.

At the heart of the Xe2 cores is the vector engine. This has gone from two SIMD8 to a single SIMD16 structure.

Here is the summary on the new Xe2 GPU that it says can be 1.5x faster gaming performance at the same power.

Here is Intel’s performance efficiency curves. A key change is that by scaling from the low end to the high-end. Meteor lake U and Meteor Lake H had to use different engines, but the new Xe2 can cover the spectrum.

Intel showed a Stable Diffusion demo with Lunar Lake versus Meteor Lake.

On the media side, h266 has been added.

Intel says that VVC decode is much lower with the new media engine.

NPUs are hot topics. In this generation the NPU is getting larger and has higher clock speeds.

Here are the key points of the Intel NPU 4. This has gone from 2 to 6 neural compute engines. Intel says this is 48 TOPS just on the NPU.

Here is the performance of the new NPU. Note: the NPU 4 is designed to also use more power at its peak.

Here is the connectivity slide with WiFi 7 and more.

Here is the summary slide for the new platform.

This is going to be a big change.

Final Words

This is super exciting to see just how far Intel is going on the Lunar Lake upgrade over Meteor Lake. This feels like an enormous shift in architecture. We should start seeing designs soon.
