Supermicro-based Storage at xAI
Storage was really interesting. In AI clusters, you generally see large storage arrays. Here, we had storage software from different vendors running, but almost every storage server we saw was Supermicro as well. That should not be a surprise. Supermicro is the OEM for many storage vendors.

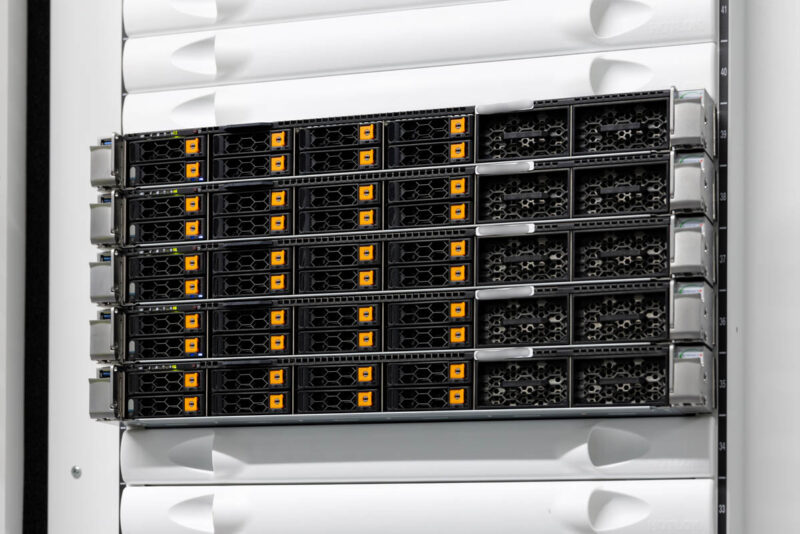

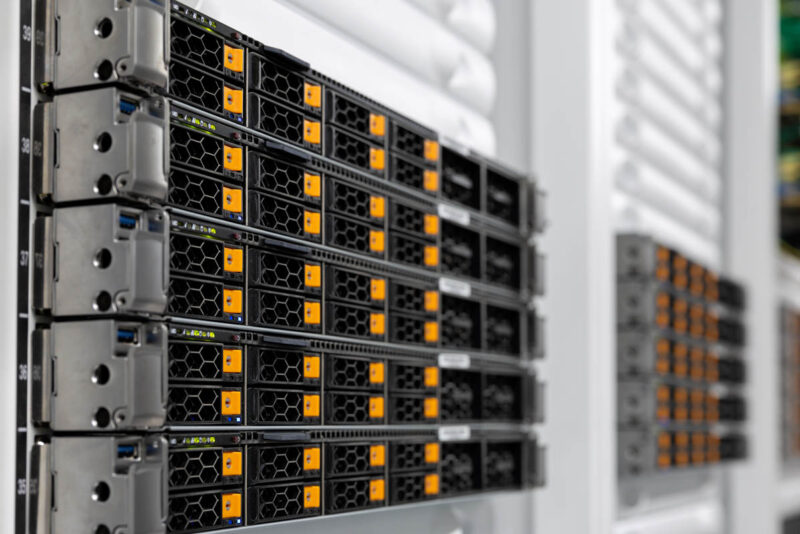

One aspect that was very neat to see while we toured the facility was how similar some of the storage servers look to the CPU compute servers.
In either case, you will see a lot of 2.5” NVMe storage bays in our photos and video. Something we have covered on our Substack is that large AI clusters have been moving away from disk-based storage to flash because it can save significant amounts of power while offering more performance and more density. Flash can cost more per petabyte, but in clusters of this scale, flash tends to win on a TCO basis.
Supermicro-based CPU Compute at xAI
With all of these clusters, you generally see a solid number of traditional CPU compute nodes. Processing and data manipulation tasks still run very well on CPUs versus GPUs. You may also want to keep the GPUs running AI training or inference workloads instead of other tasks.

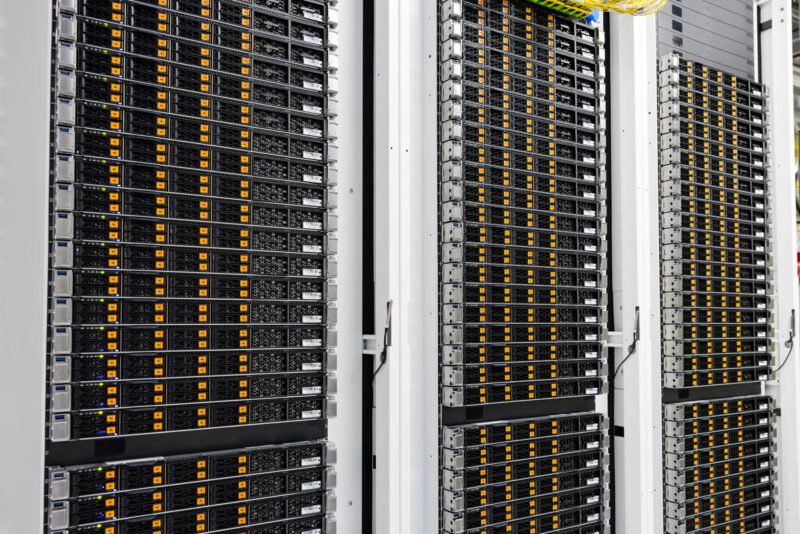

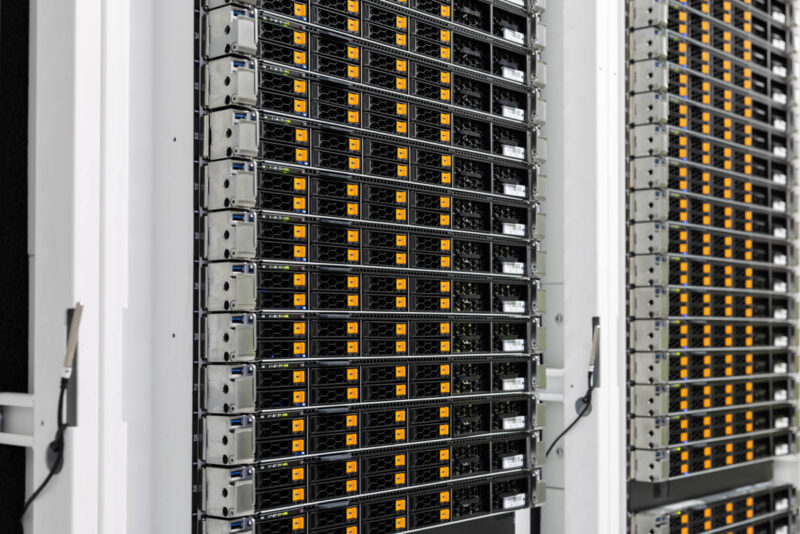

Here, we see racks of 1U servers. Each of the servers is designed to balance compute density with the heat being generated. A great example of this is that we can see the orange tabs for NVMe storage bays on front but also about a third of the faceplate being dedicated to drawing cool air into the system.
These 1U compute servers can be cooled by fans and then a rear door heat exchanger can remove heat and exchange it with the facility water loops. Due to the data center design with rear door heat exchangers, xAI can handle both liquid-cooled gear and air-cooled gear.
Networking at xAI Colossus
Networking is one of the fascinating parts. If your computer uses an Ethernet cable, that is the same base technology as the networking here. Except, that this is 400GbE or 400 times faster, per optical connection than the common 1GbE networking we see elsewhere. There are also nine of these links per system which means that we have about 3.6Tbps of bandwidth per GPU compute server.
The RDMA network for the GPUs makes up the majority of this bandwidth. Each GPU gets its own NIC. Here, xAI is using NVIDIA BlueField-3 SuperNICs and Spectrum-X networking. NVIDIA has some special sauce in their network stack that helps ensure the right data gets to the right place navigating around bottlenecks in the cluster.
That is a big deal. Many supercomputer networks use InfiniBand or other technologies, but this is Ethernet. Ethernet means it can scale. Everyone reading this on STH will have the page delivered over an Ethernet network at some point. Ethernet is the backbone of the Internet. As a result, it is a technology that is immensely scalable. These enormous AI clusters are scaling to the point where some of the more exotic technologies have not touched in terms of scale. This is a really bold move by the xAI team.
Beyond the GPU RDMA network, the CPUs also get a 400GbE connection, which uses a different switch fabric entirely. xAI is running a network for its GPUs and one for the rest of the cluster, which is a very common design point in high-performance computing clusters.
Just to give you some sense of how fast 400GbE is, it is more connectivity than a top-of-the-line early 2021 Intel Xeon server processor could handle across all of its PCIe lanes combined. That level of networking is being used nine times per server here.

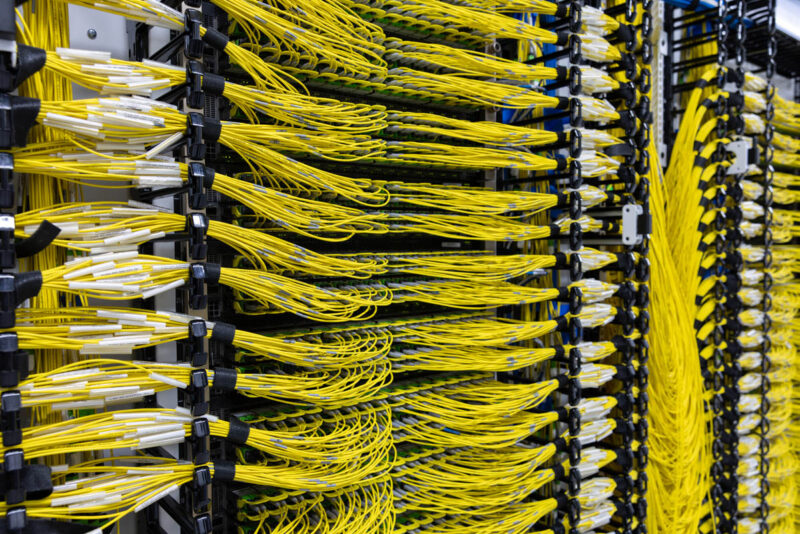

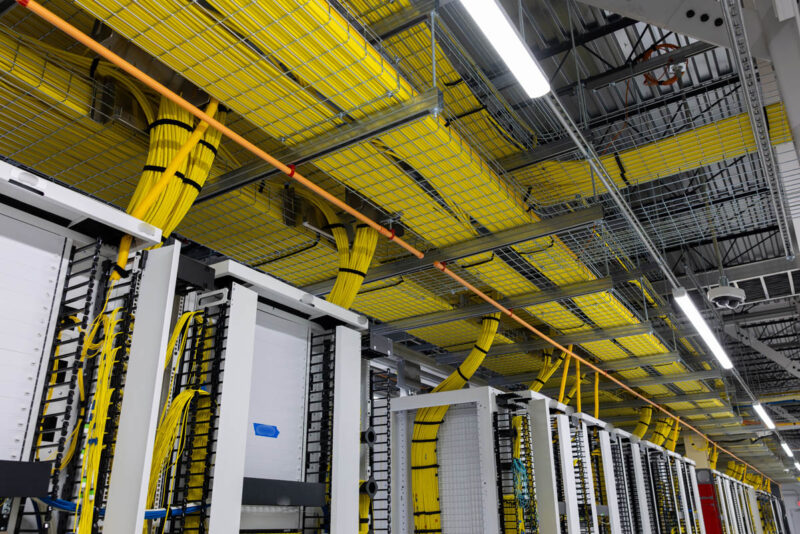

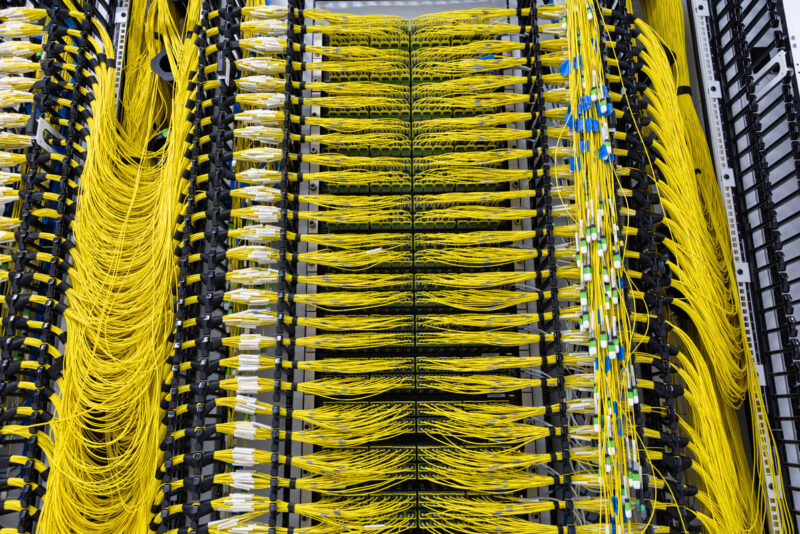

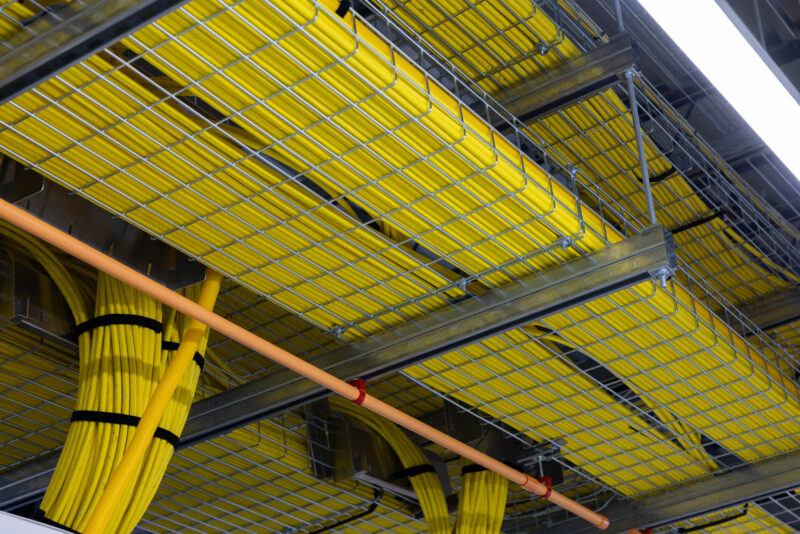

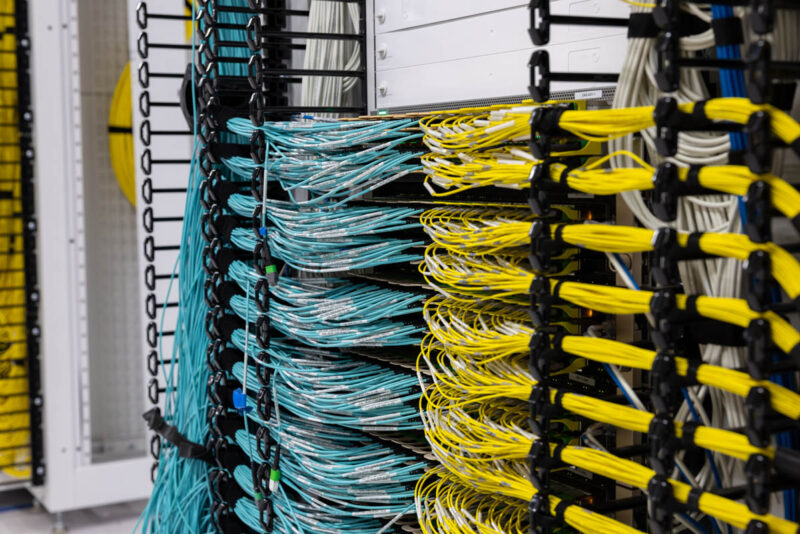

All of that networking means that we have huge amounts of fiber runs. Each fiber run is cut and terminated to the correct length and labeled.
I had the opportunity to meet some of the folks doing this work back in August. Structured cabling is always neat to see.
In addition to the high-speed cluster networking, there is lower-speed networking that is used for the various management interfaces and environmental devices that are a part of any cluster like this.
Something that was very obvious walking through this facility is that liquid-cooled network switches are desperately needed. We recently reviewed a 64-port 800GbE switch, in the same 51.2T class as the ones used in many AI clusters. Something that the industry needs to solve is cooling not just the switch chips, but also the optics that in a modern switch can use significantly more power than the switch chip. Perhaps enormous installations like these might move the industry towards co-packaged optics so that the cooling of the switches can follow the compute to liquid cooling. We have seen liquid-cooled co-packaged optic switch demos before, so hopefully a look at this installation will help those go from prototypes to production in the future.
