The HPE ProLiant DL145 Gen11 is a really cool system. We have had this edge server in the lab for some time now, and every time we open the lid, it just feels neat. In our review, we will review the system and some of the options, but there is a lot here for a small system. Let us get to it.
HPE ProLiant DL145 Gen11 External Overview

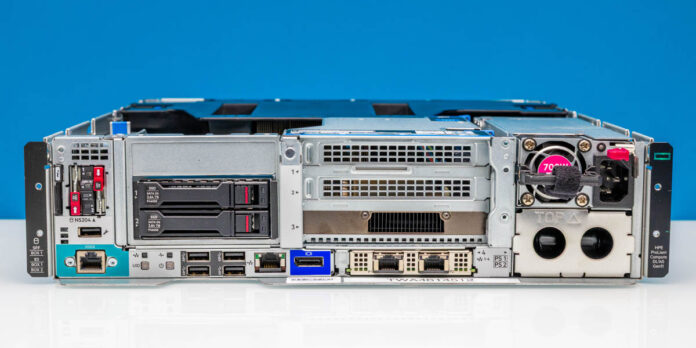

Starting off, this is a 2U server with front I/O and front power. That is a common trait in edge servers where rear access may not exist. The server itself is relatively shallow depth at 16in or 40.66cm.
On the left side, we have two M.2 slots on little carrier sleds. Under that we have our iLO service port and a serial port. The big section next to that has two 2.5″ bays which have SATA drives in our system. The other option (and frankly cooler one) is the 6x E3.S NVMe SSD option. Under those drives we have the power button and additional USB ports.
There is an iLO port, and then something a little different, a DisplayPort. HPE is moving beyond VGA.
In the center section, there are three PCIe Gen5 x16 slots. Two are options, but our system has all three.
Since AI is everywhere these days, we have a NVIDIA L4 in the expansion slot. We also tried adding a NVIDIA BlueField-3 DPU to add more networking, but there are many options here.
Under the three PCIe slot section is an OCP NIC 3.0 slot. HPE is a legacy OEM that sells lucrative service contracts. In the industry, there seems to be a correlation between companies that sell significant service contracts and those that use the SFF with internal lock form factor. Companies with lower service revenue tend to use the SFF with pull tab design which can be swapped without opening the chassis and removing risers to get to internal latches. This may or may not be a thing in the industry, but here we have a dual 10Gbase-T adapter.
The power supplies are standard HPE units. The system can run with a single power supply like we have here, but you can use two for redundancy.
At the rear, there is not much other than fans.
The fans are hot swappable when the chassis is open.
There are also keys on the back.
As a quick note, HPE has many options that change the system like a bezel filter that also makes the server a bit longer. We are just showing the configuration we have.
Next, let us get inside the server to see how it is constructed.
