Today, we have something really fun: a look at the Marvell COLORZ 800. This is a long-range 800G ZR+ optical module that comes in a standard OSFP pluggable form factor, yet it can reach over 500km or 1000km at 800Gbps speeds. It can even be tuned to allow 400Gbps communication at up to 2500km. We got a behind-the-scenes look at how this coherent optical technology works at Marvell’s labs and wanted to show you how they make this happen.
For this one, we have a video that you can find here:
As always, we suggest opening this in its own tab, browser, or app for the best viewing experience. We also need to say that Marvell is sponsoring this since George and I had to fly to get inside the lab, and the lab is not something that folks normally get to see. With that, let us get to it.
Going 800Gbps at up to 1000km with the Marvell COLORZ 800
Since we will get into a lot of detail here, let us quickly start with an overview. In datacenters today, the rule is basically: Use copper as long as you can, then when the reach is too far, go optical. If you take a look at something like a NVIDIA GB200 NVL72 the big innovation was the ability to interconnect 72 GPUs and switches using copper in the rear.
After around 3m of cable length or so, high-speed and copper simply do not mix due to signal integrity.
While copper can often reach within a rack and to an adjacent rack, optical modules are used to span longer distances. There is, however, a catch. Optical modules use different technologies to span different distances at different speeds.
A short range optical module that is operating at 10Gbps or 100Gbps costs a lot less to manufacture than a long range optical module operating at 400Gbps or 800Gbps in large part because the technology scales in complexity.
Another aspect is the form factors that optical modules come in. CFP-style form factor modules tend to be more common in telecom applications. In data centers, we tend to see small SFP modules for lower-end applcations and larger QSFP modules and OSFP modules for higher-speed applications. Even common AI infrastructure NICs like the NVIDIA ConnectX-7 400GbE adapter use OSFP. Today we are talking about a Marvell COLORZ III 800G ZR+ OSFP module. OSFP provides a larger module standard with the power, cooling, and importantly the space required to handle all of the components. Here is what one looks like:
In simple terms, on one end, the module takes electrical signals from the device.
On the other end, we have optical transmit and receive sides where the fiber cable is plugged into.
While that may sound simple, inside the metal casing is where the magic happens. Electrical signals turn into optical signals and on the other side optical signals are converted back to electrical. We are going to keep the discussion of what happens inside at a fairly high-level so many folks can follow along.

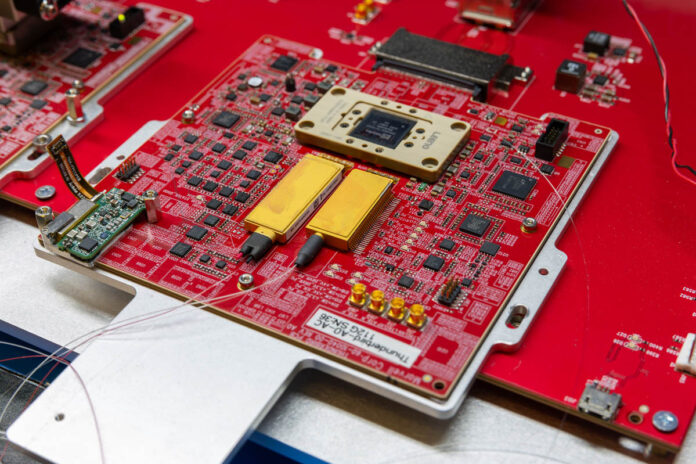

Next, let us show you what goes inside that OSFP casing and how this all works.
