Fanless Intel N200 Internal Hardware Overview

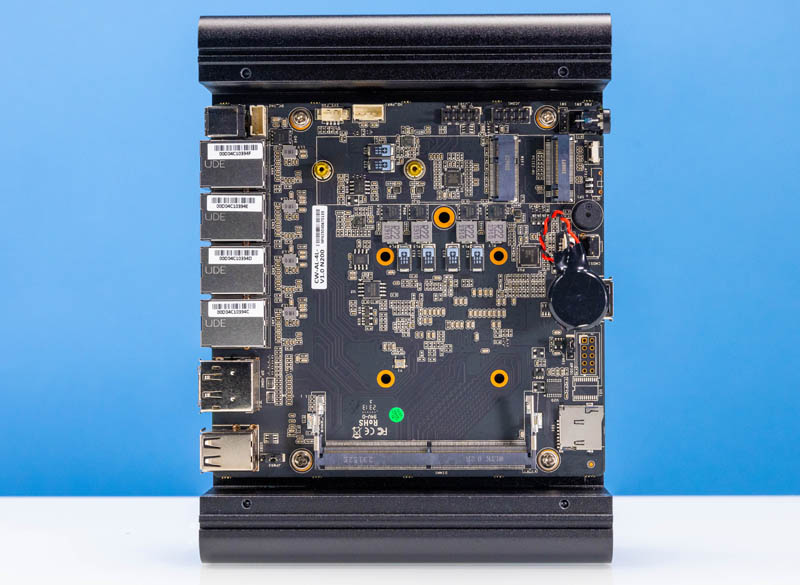

Inside the unit, we have a fairly standard layout. On the top, we have M.2 slots. On the bottom, we have the SODIMM.
One thing we did not get with this unit was a cable for a 2.5″ SATA drive that we used to get with these units. Instead, we got this. We are going to call this the M.2 H-bracket. The purpose is to take the M.2 slot, normally used for WiFi, and add a second M.2 SSD slot internally. If you really wanted to you could install two 4TB M.2 SSDs into this system and make it a NAS, but it is probably not what we would recommend. In our upcoming N305 video, we have a hot off the presses 4x M.2 board and a new H-board that is much more advanced.

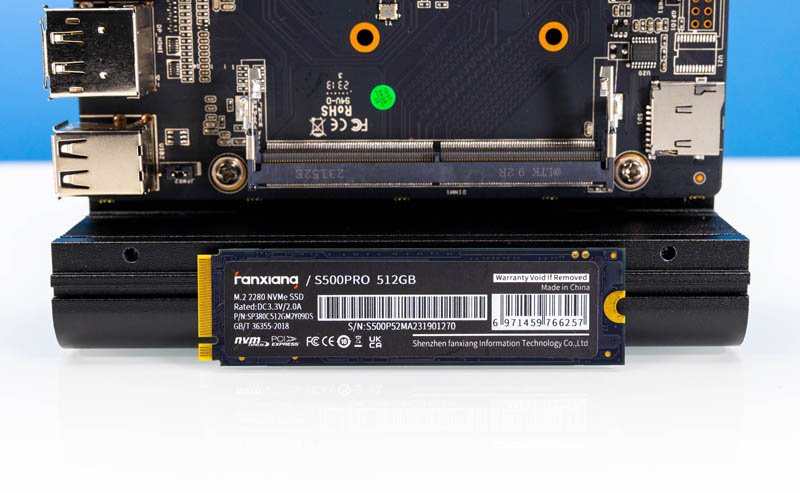

Our unit came with the Fanxiang 512GB NVMe SSD. You can actually buy these SSDs on AliExpress and we saw them on Amazon as well. In these machines, we tend to use low-cost and low-power DRAM-less SSDs when we configure our own since we like to minimize heat and power.

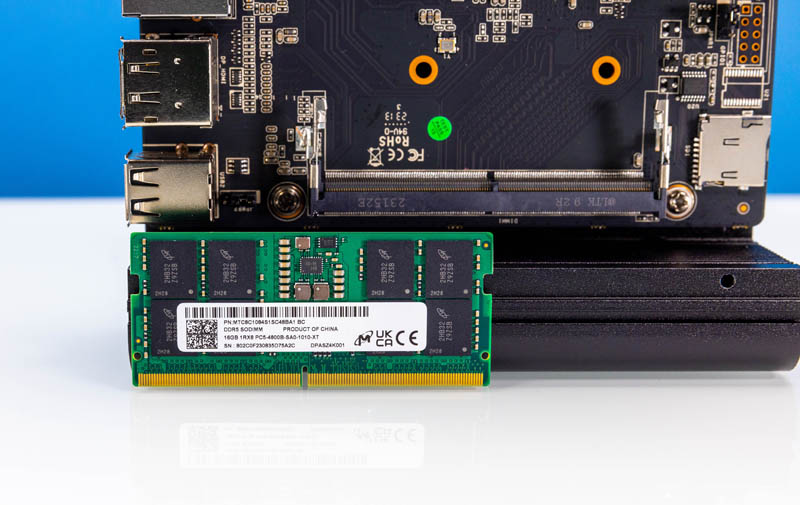

On the memory side, we have perhaps the biggest change. Instead of two DDR4 SODIMMs, we get a single DDR5 SODIMM slot. Alder Lake-N is a single memory channel design but it is DDR5 capable so we get a 50% performance boost from that. In our system was another surprise. We received a Crucial labeled 16GB DDR5 SODIMM. The Crucial-Micron DIMM is perhaps the biggest brand name that we have seen from these AliExpress boxes.
Here is another look at the system configured just to help put things in perspective.
All of this leads us to the performance of the system because that is the big story.
