Eaton 5P 5P1500R-L Software Overview
Before we get too far into this section, we just wanted to note that we are looking into an optional web interface enabled by that network card. This network card is a $250-300 upgrade. Given that we are now spoiled with inexpensive developer boards like the Raspberry Pi, this will seem like an expensive card, but it also incorporates software engineering to make the management solution function. In the 2020s, this is starting to feel like it should be a part of the product rather than an add-in card.

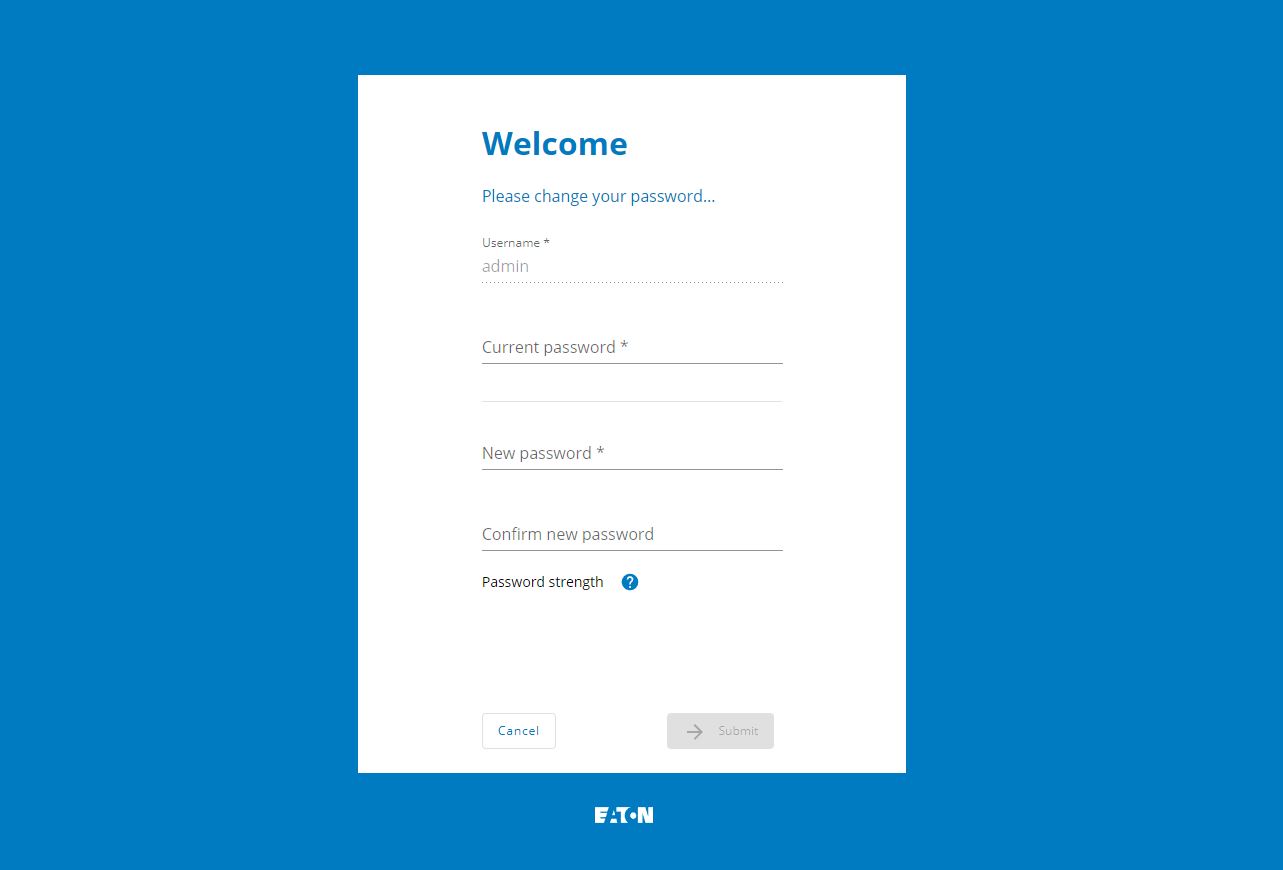

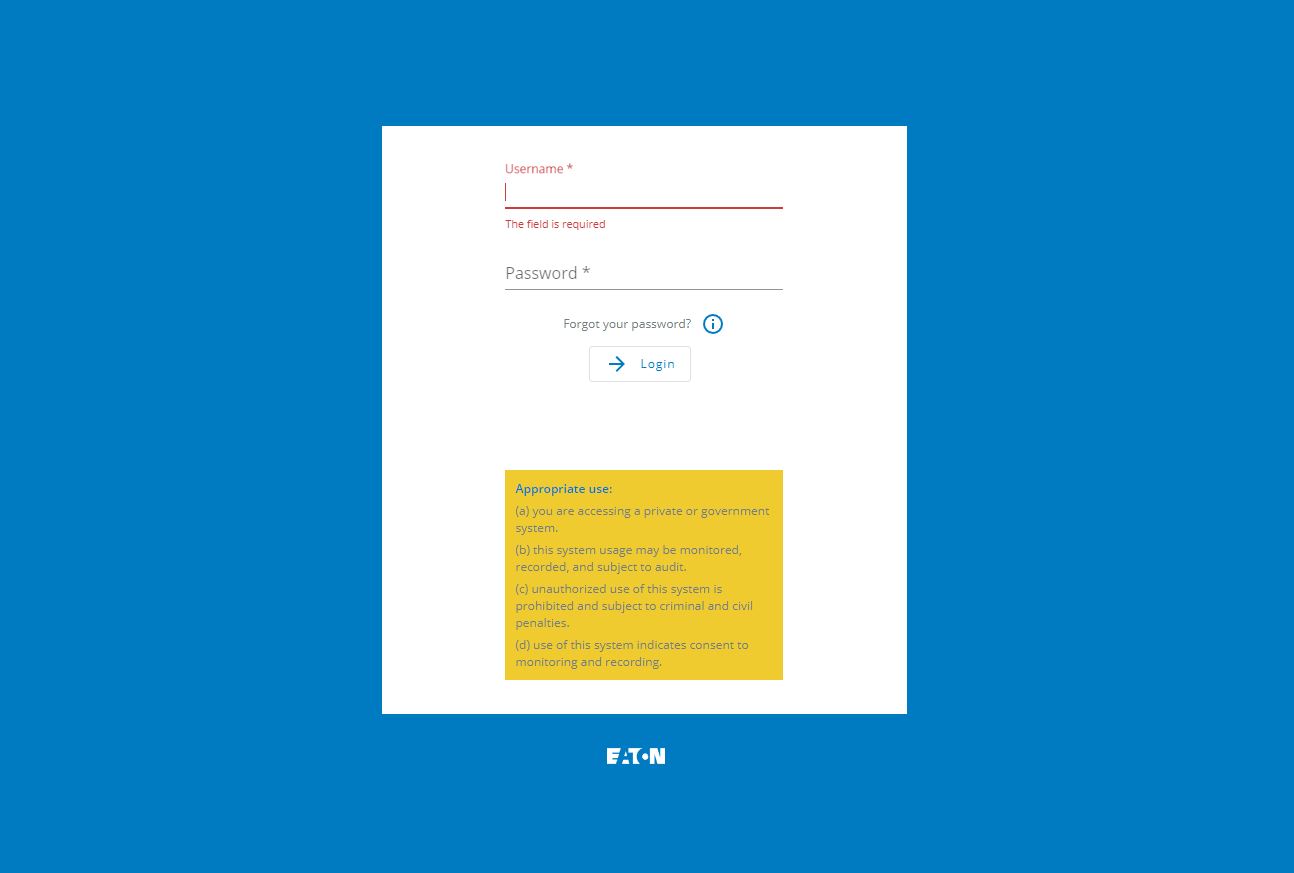

Logging into the management interface we get prompted for a username and password. The default username and pasword is admin/ admin.
This was, of course, required to be changed on the first login. You can read more about Why Your Favorite Default Passwords Are Changing, but this had to be done for compliance reasons.

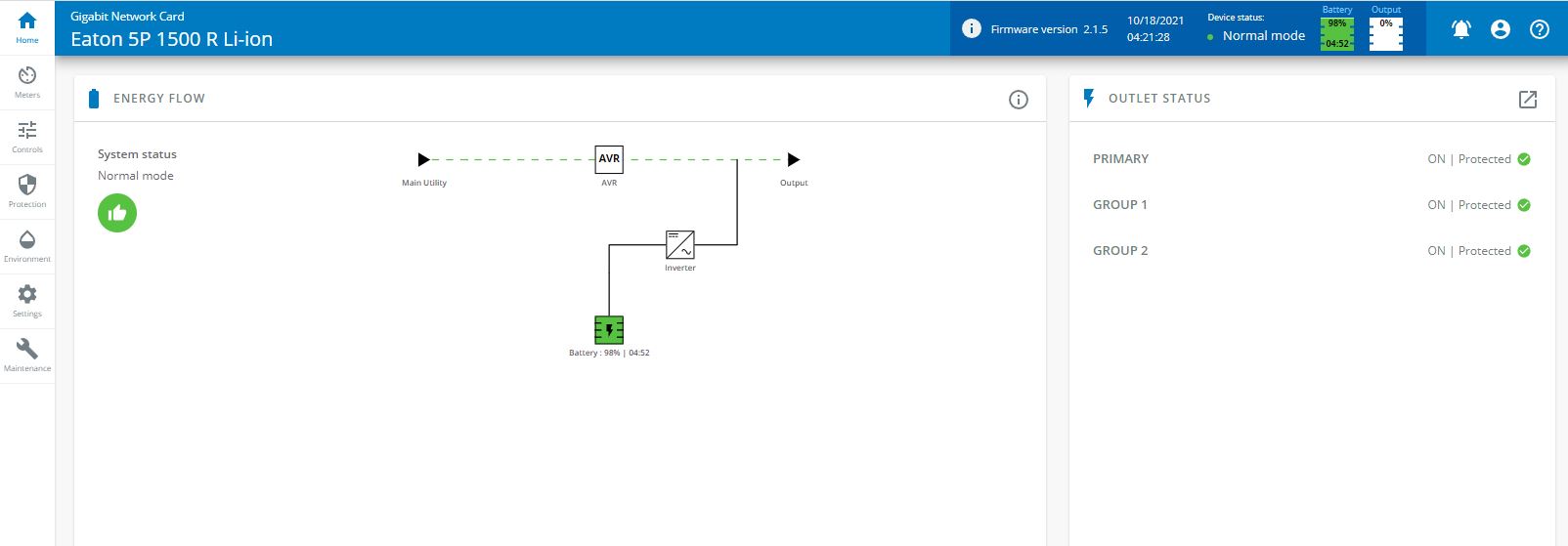

Once inside, one is presented with a dashboard showing the flow of electricity, battery capacity, and whether programmable groups are on.

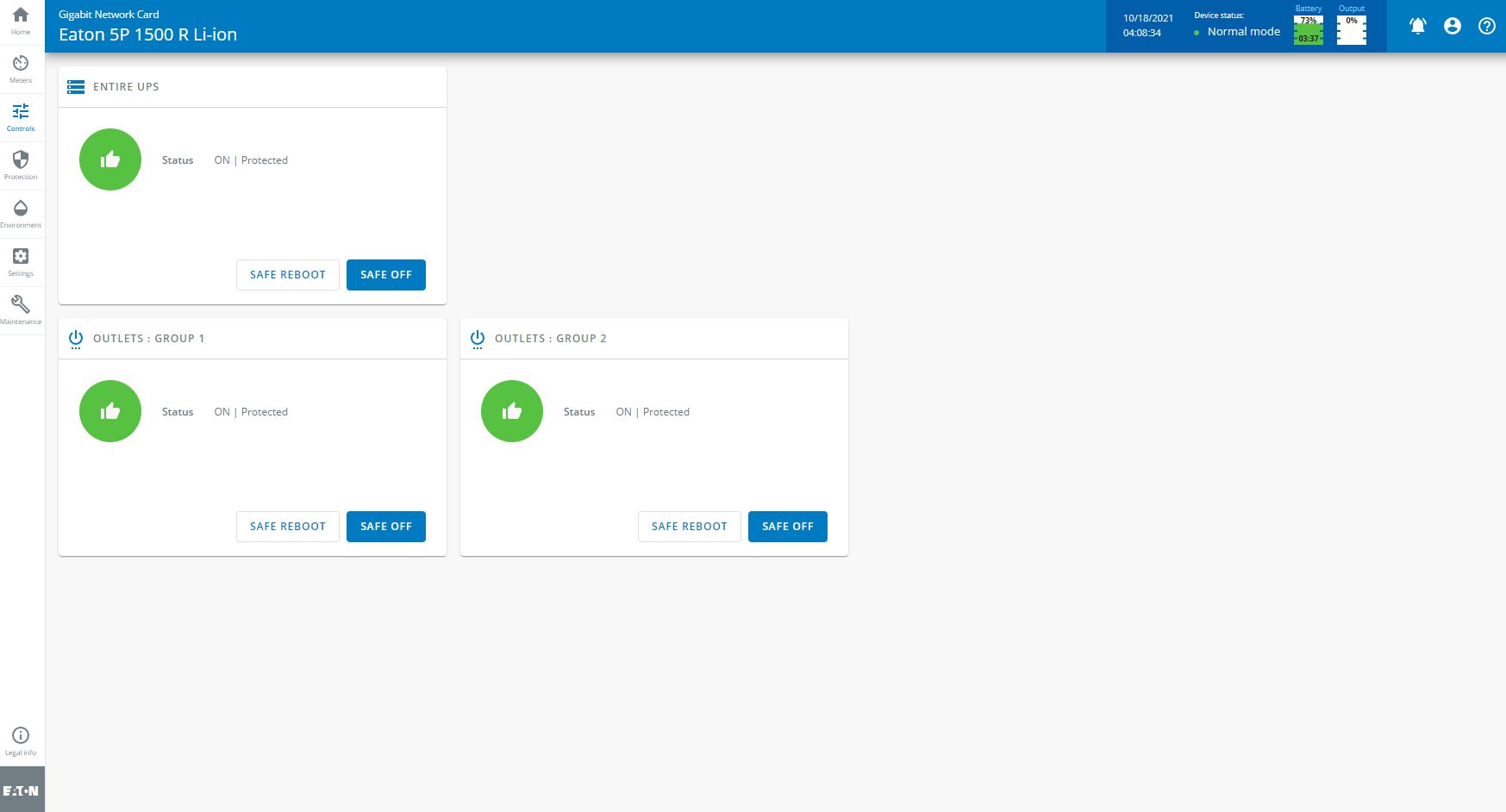

Here is a look at the groups that we mentioned when looking at the five outlets. One can manage them here and turn them off for example. Having five outlets and three control groups feels a bit like this should be five groups and each port should be addressable individually. On larger 20+ outlet units, perhaps having a group 1 and group 2 makes sense, but in this smaller outlet system, it feels like each should be addressable and then configured into groups in software.

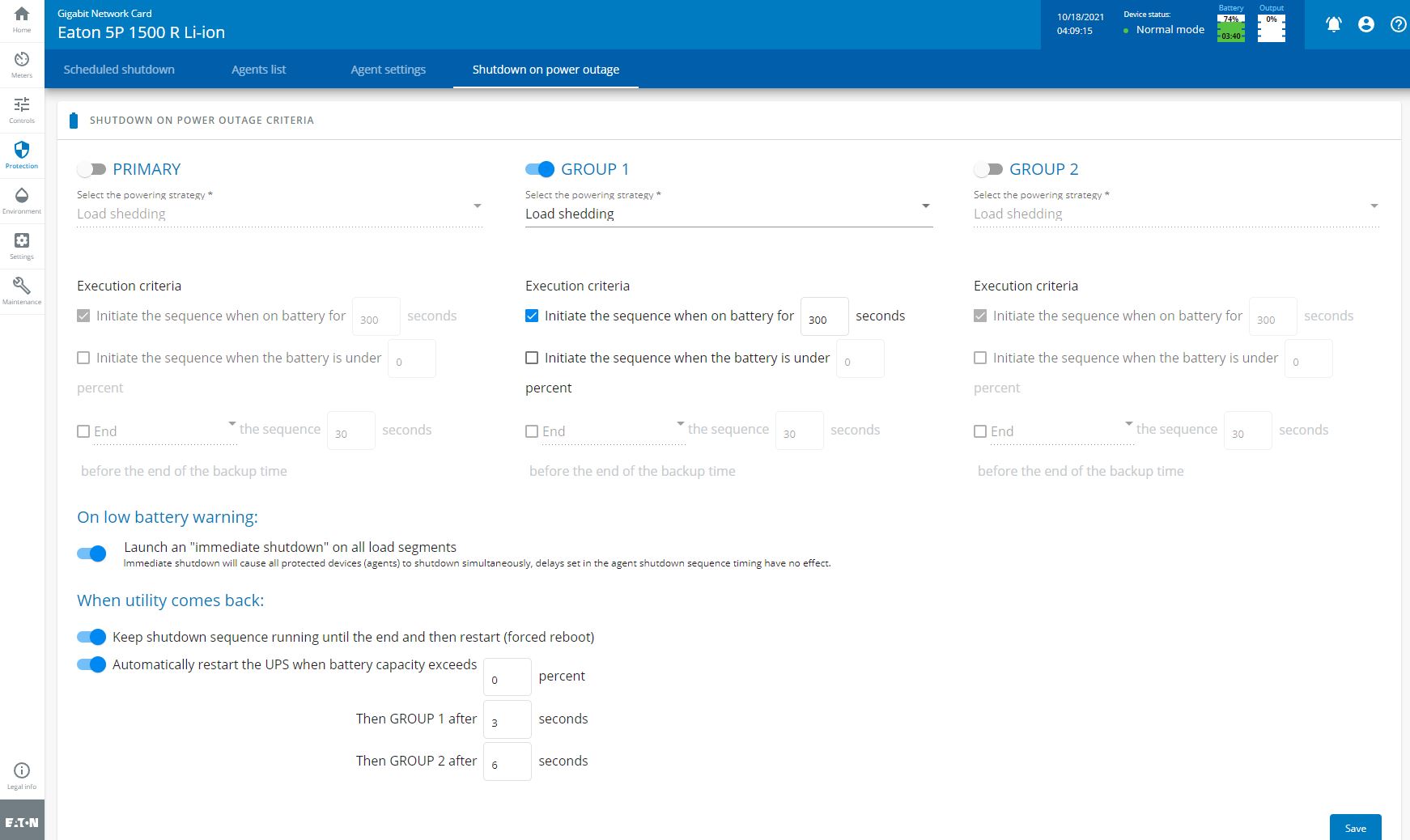

The groups can also be prioritized into how load is shed so basically a shutdown order of these ports. That is important if you want a firewall to stay up until after a server has sent its data and shutdown.

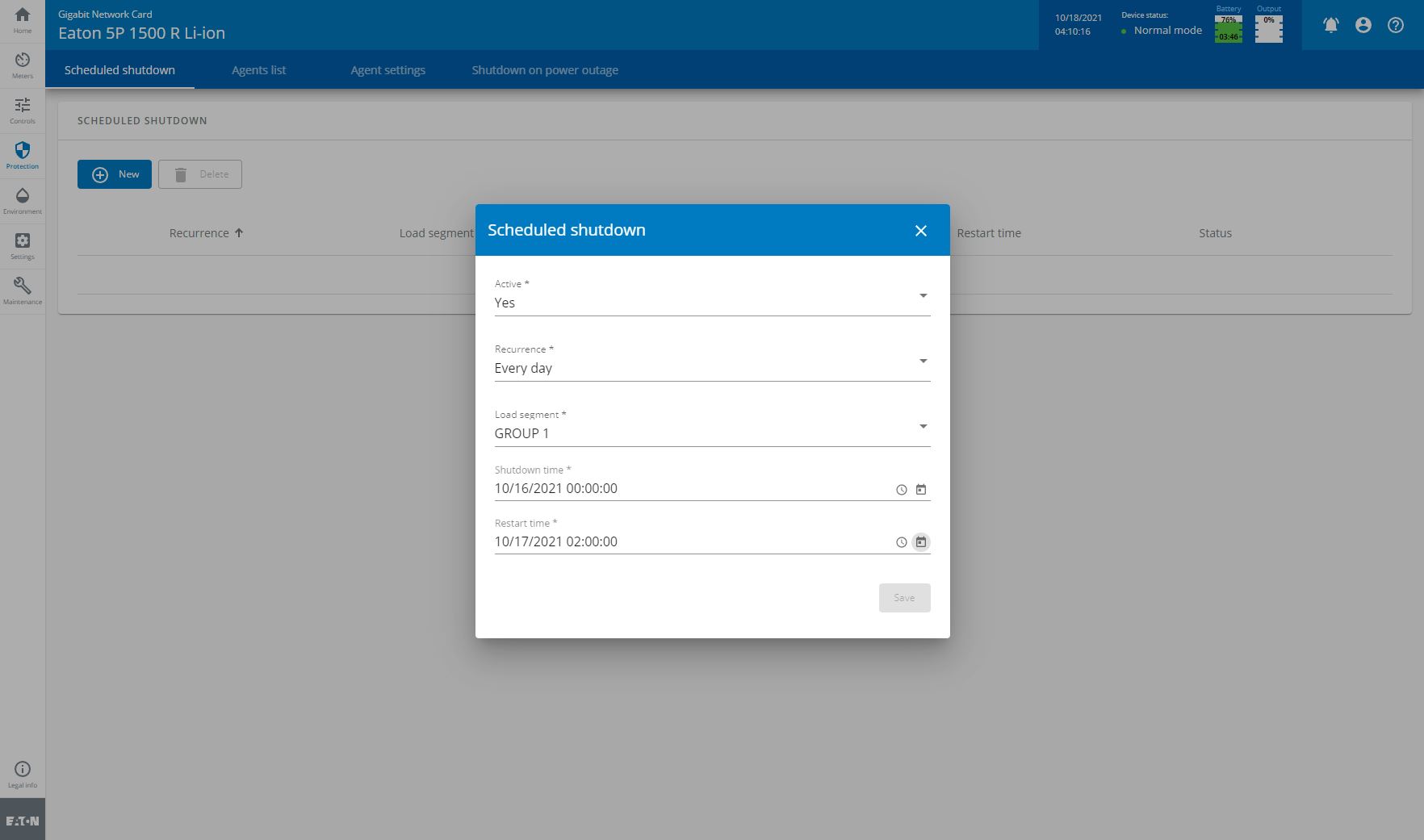

One can also set a schedule for the groups shutting down on a configurable schedule. If you wanted a firewall to only be online for an hour a day, then this is how you would do that.

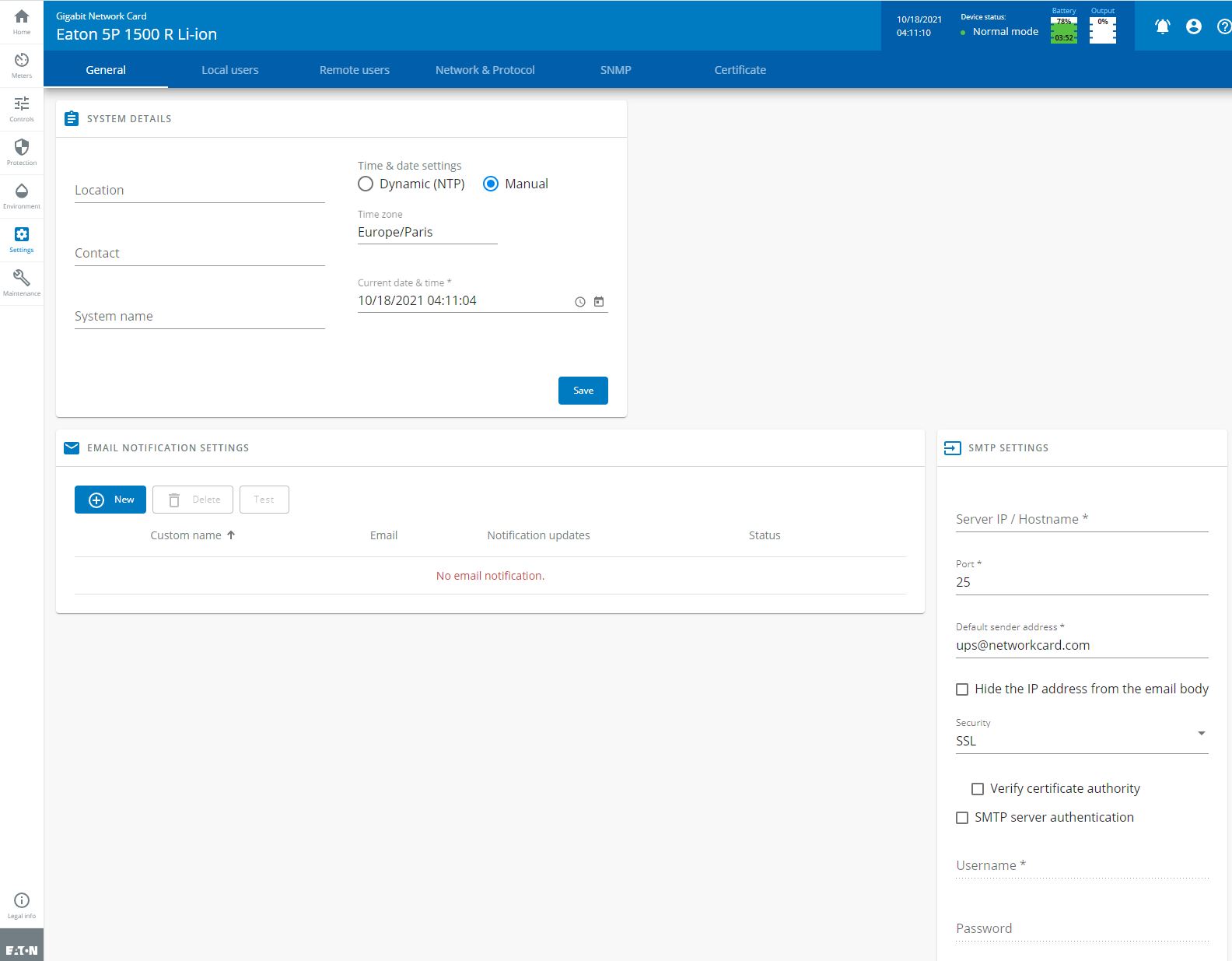

One can also set up email notifications and those are always useful on these power devices. Many may see this alone as a reason to get the network card.

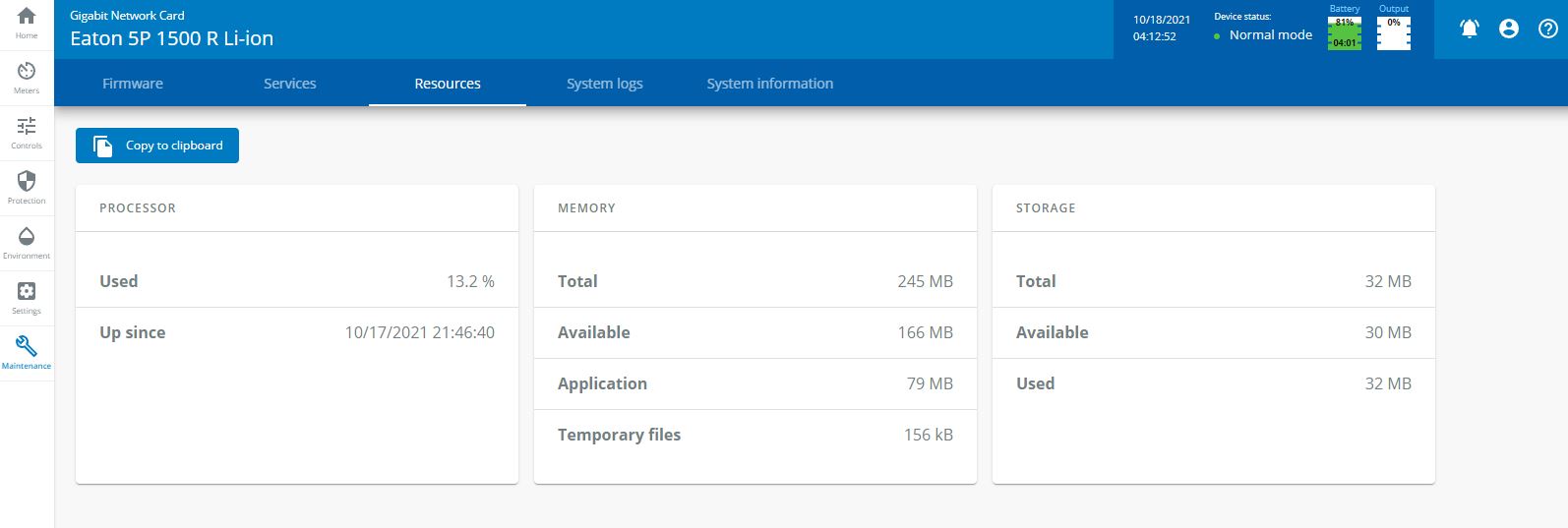

In terms of system resources on the network card, there are certainly not many. This is the case where it appears that a low-cost Raspberry Pi would also be more powerful.

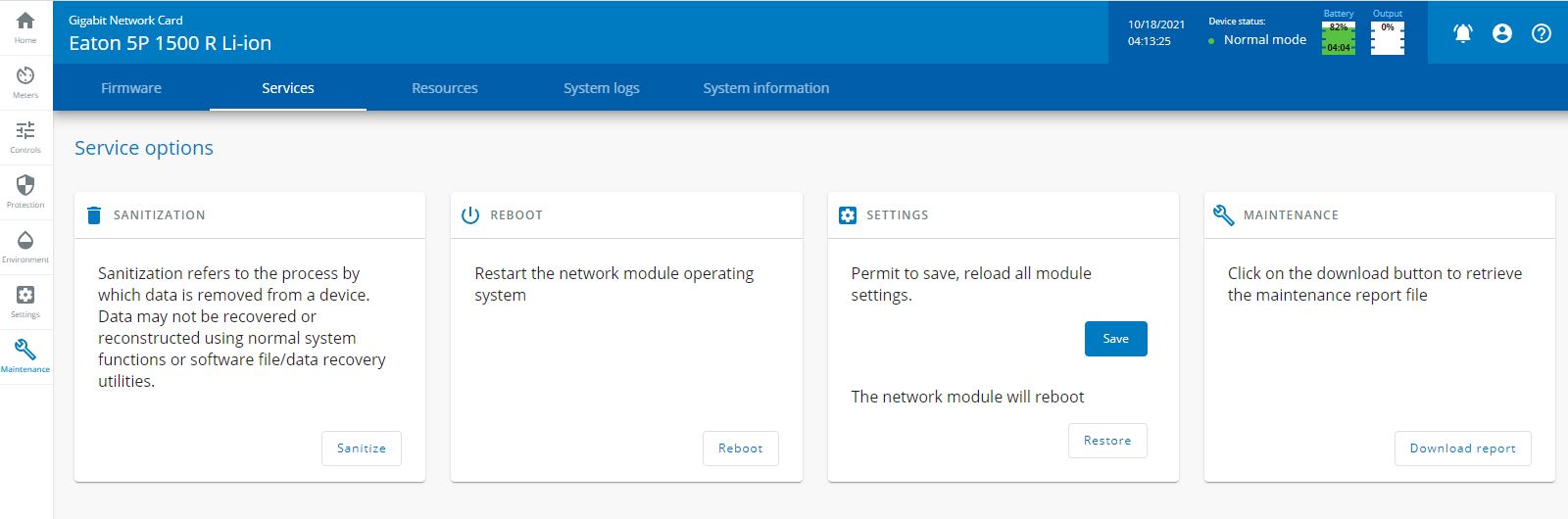

One also needs to maintain the management complex and that is what we have here.
Generally, this is great network functionality, but it also means it is another piece of gear to keep updated and patched with new firmware.
Eaton 5P Battery Runtime Performance

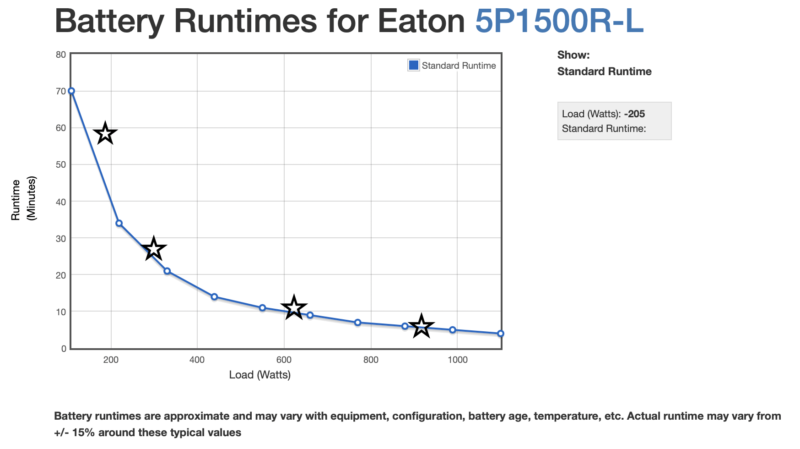

Something that we wanted to test was the performance in terms of runtime. Since we wanted to test practical device loads, using real systems, and we only had so much time, we spot-checked four loads that we ran through a TrueRMS power meter and into the 5P against the runtime estimator from Eaton.
Eaton says the estimator is +/- 15%. Our spot testing seems to have confirmed this. Our results were a bit higher on average, but we also know that Lithium-ion batteries lose capacity over time. Our batteries were manufactured around three quarters before the testing as well. Overall though, we were pleased to see that we came out slightly ahead of the ranges Eaton offered for this 1440VA unit.
Final Words
The Eaton 5P performed as we would have expected. From a power solution, perhaps that is all that one wants. If the power was cut, it switched to the battery and kept devices online.
There were certainly a few areas where innovation could happen. For example, having individually addressable outlets as well as just making management standard as part of the offering. At the same time, there is the big item that this is a Li-ion solution. Given the voltage and outlet configuration, it is designed for the North American market. It is also not available to sell in Colorado, Vermont, or Washington (at the time of this writing.) That is a big deal especially if a company wanted to deploy a consistent stack across North American operating regions.
The benefit, of course, is that one gets a longer runtime in a smaller form factor. As servers, network, and storage gear increase power consumption, a key challenge is simply getting the power density required in racks. That is really the challenge the Eaton 5P is designed to solve and from our standpoint, Eaton accomplished that.
