HPE Cray “Megatrands” for the US Army Supercomputer “Freeman”
The reason I feel like HPE did a poor job, is that I gave them the same opportunity as Dell to have a 24-hour investigation window. They told me they discussed it internally and they never took the opportunity to have me share what I found here. HPE for its part showed off a HPE Cray CS500 model that also had these stickers at Supercomputing 2018. As mentioned previously, we have a pretty massive set of photos of the inside of servers, some in the studio, and others from trade shows or elsewhere.

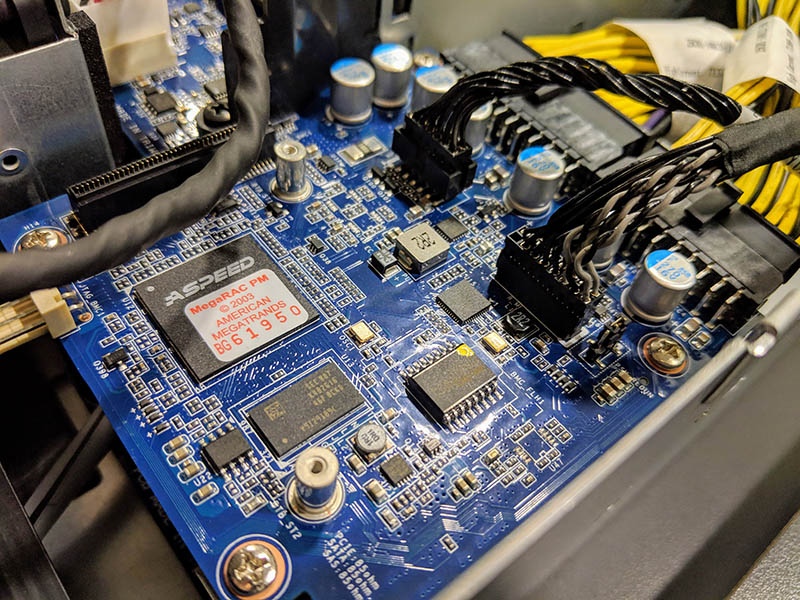

MegaRAC PM is typically used on lower-end ASPEED BMCs than what we see in modern servers. The HPE Cray CS500 is a 2U 4-node (2U4N) server design. That means there are four dual-socket AMD EPYC nodes in a single 2U chassis. This density is what high-performance supercomputers want. At SC21, the CS500 was outfitted with a chassis management controller or CMC. This CMC allows a single point to manage all four of these nodes using a single network port. It is actually a great feature we have seen many times. Here is what one of those CMC’s looks like in a closer view.

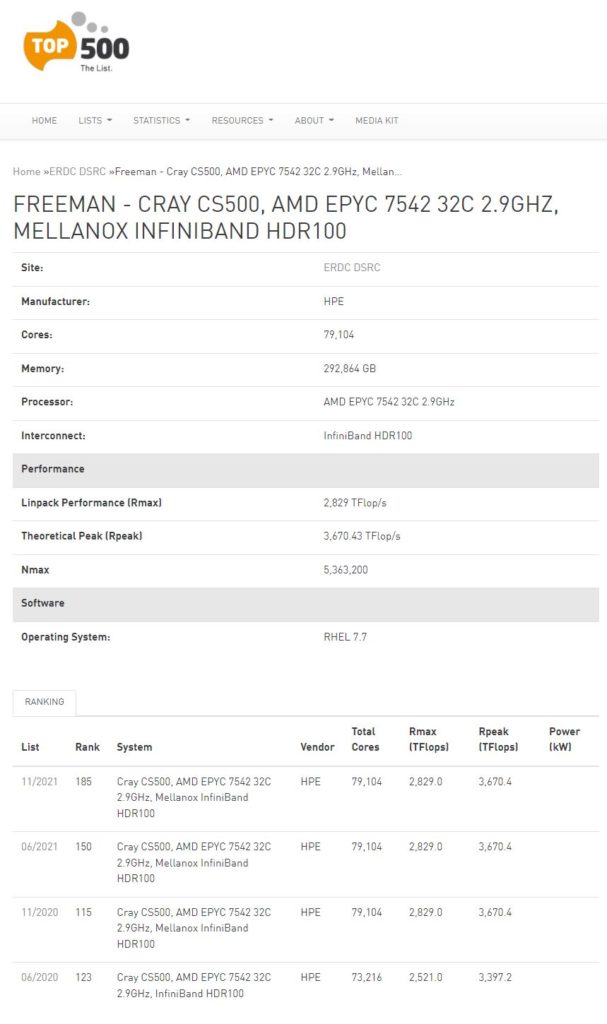

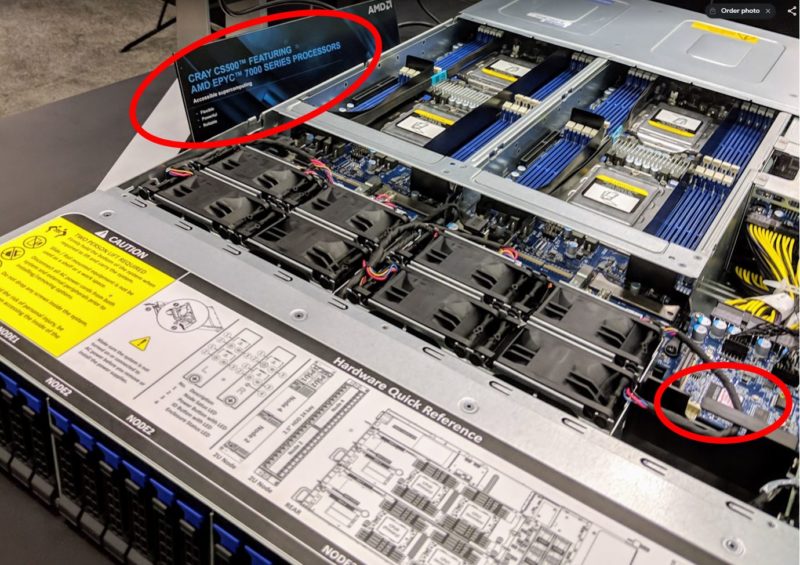

The HPE Cray CS500, shown at SC18, had at least one supercomputer win that I could find easily. In a system that debuted at #123 in the June 2020 Top500 supercomputer list “Freeman” the HPE Cray CS500 AMD EPYC platform is noted as being used. Again, we do not know exactly what is installed, but it is listed as the CS500 in the official submission, and we saw the CS500 at SC18.

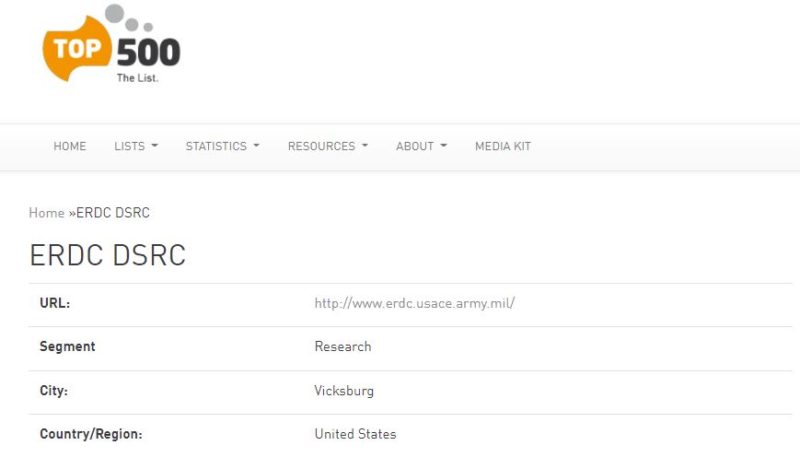

The site it is installed at is listed as the ERDC DSRC. Clicking on some detail gives us this:
As one will see, this is an Army.mil URL that takes us here:

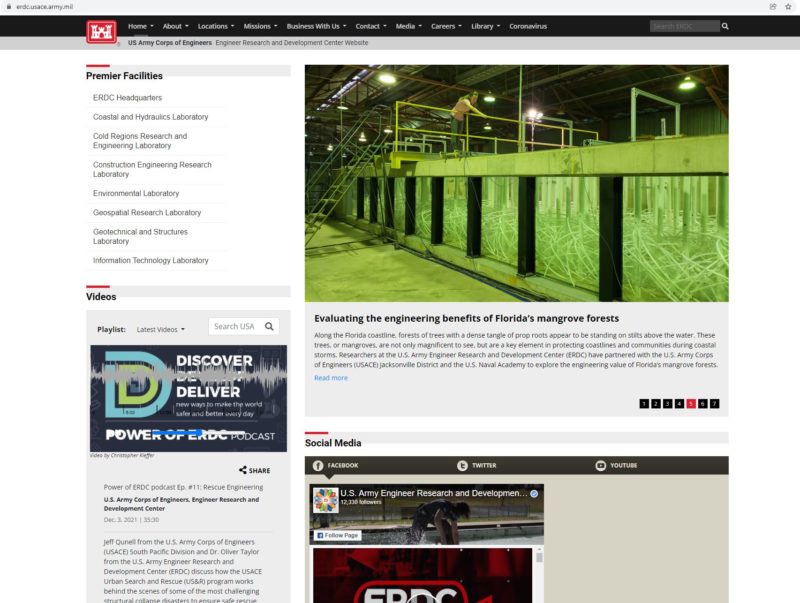

The web page of the US Army Corps of Engineers Engineer Research and Development Center.
I know we have a lot of readers in the Washington, DC, Maryland, and Virginia areas that work for the US government, but we have fewer readers in Vicksburg Mississippi. If you happen to work there or know someone who does, it may be worth opening up a Freeman CS500 chassis to validate. The CMC is an optional feature, in those systems, but it is one that is very useful. An investigation, based on the Dell letter from AMI, will likely lead to this is OK, but it may be worth at least documenting since it is in a US military supercomputer.
Again, HPE is also supposed to also be top-tier at supply chain security as we saw in our HPE ProLiant DL380T Gen10 Trusted Supply Chain Server Teardown. I was at a wedding in Maryland this summer where one of the attendees I had never met before recognized me from YouTube and proceeded to comment on that piece and video.
We can give HPE the benefit of assuming that they already knew about the “Megatrands” sticker they showed at SC18 (and nobody online seems to have caught it for 3+ years.) Still, it is probably worthwhile for the US Army to close the loop with HPE if it has not.
In the future, it is probably worthwhile for HPE to also have a process to take supply chain reports and issue official responses. After this happened in October, I purchased the Dell Precision 3930 we recently reviewed (and several other Dell machines), but the fact that I knew how seriously HPE took this means we have not purchased any HPE products.
Final Words
All told, there is probably nothing to see here. Someone may very well have seen this before this October 4, 2021 comment on our YouTube video. It seems strange that a YouTube comment would find a supply chain story like this one.
Many are probably thinking about the possibilities here. For example, anyone can now copy the American “Megatrands” label and how would one validate it is authentic? Furthermore, what if someone decided to register the domain names so anyone doing research in the future would end up directed to another website. Surely if AMI knew of this misspelling prior to October 2021, they would have at least secured the domain name, right? It just so happened on October 22, 2021, after the AMI letter, someone did have that idea.

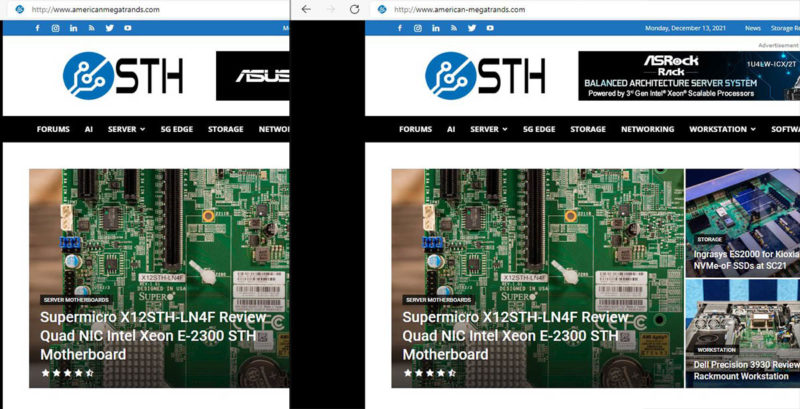

I wanted to ensure these domains were not sitting open and unregistered when this piece was released so I picked them up just so they did not fall into a malicious actor’s control. Someone I had shared this with suggested that if AMI really knew about the misprinted labels before I brought it to them, they would have registered the domain name at least to keep people safe in the future.
Overall, this is clearly not the industry’s finest moment. Given the state of the Internet these days, I waited until we started to get into the slower holiday traffic pattern before publishing this. On one hand, it is very important information that we investigated and uncovered. On the other hand, we know that a lot of people do not believe official statements so there is a risk that commentators may not accept the official story furnished to STH. All we can say for sure is that there are Megatrands labels the equivalent to “Wandows” license stickers being put into very high-end data center IT gear that can cost upwards of $10,000 each. We are seeing it from multiple vendors, and most notably two vendors that are supposed to be top-notch in this area.
If this can happen in the supply chain for those two companies in high-end networking gear and servers, it may be worth taking some time over the holidays to ponder if lower-cost gear could be susceptible to a Megatrands-esque event.
