Compute Performance and Power Baselines
One of the biggest areas that manufacturers can differentiate their 2U4N offerings on is cooling capacity. As modern processors heat up, they lower clock speed thus decreasing performance. Fans spin faster to cool which increases power consumption and power supply efficiency.
STH goes through extraordinary lengths to test 2U4N servers in a real-world type scenario. You can see our methodology here: How We Test 2U 4-Node System Power Consumption.
Inside this configuration, what we are testing for is the ability for these dense 2U4N systems to keep processors cool compared to baseline 1U systems. In previous generations, one issue many systems had was that there would be wide performance deltas between 1U1N (1U 1-node) and 2U4N (2U 4-node) platforms because processors would throttle under load. An ideal result is that a 2U4N platform matches the performance of 1U1N performance since that would mean that cooling is sufficient to allow processors to run at their maximum turbo frequencies.
Dell EMC PowerEdge C6525 Compute Performance to Baseline
We loaded the PowerEdge C6525 with a few configurations to see the performance compared to our average 1U system performance. We then ran one of our favorite workloads on all four nodes simultaneously for 1400 runs. We threw out the first 100 runs worth of data and considered the 101st run to be sufficiently heat soaked after days of testing. The other runs are used to keep the machine warm until all systems have completed their runs. We also used the same CPUs in both sets of test systems to remove silicon differences from the comparison.
This is an extraordinarily labor-intensive process, but it is done to eliminate variables and simulate a large installation that has a significant load.

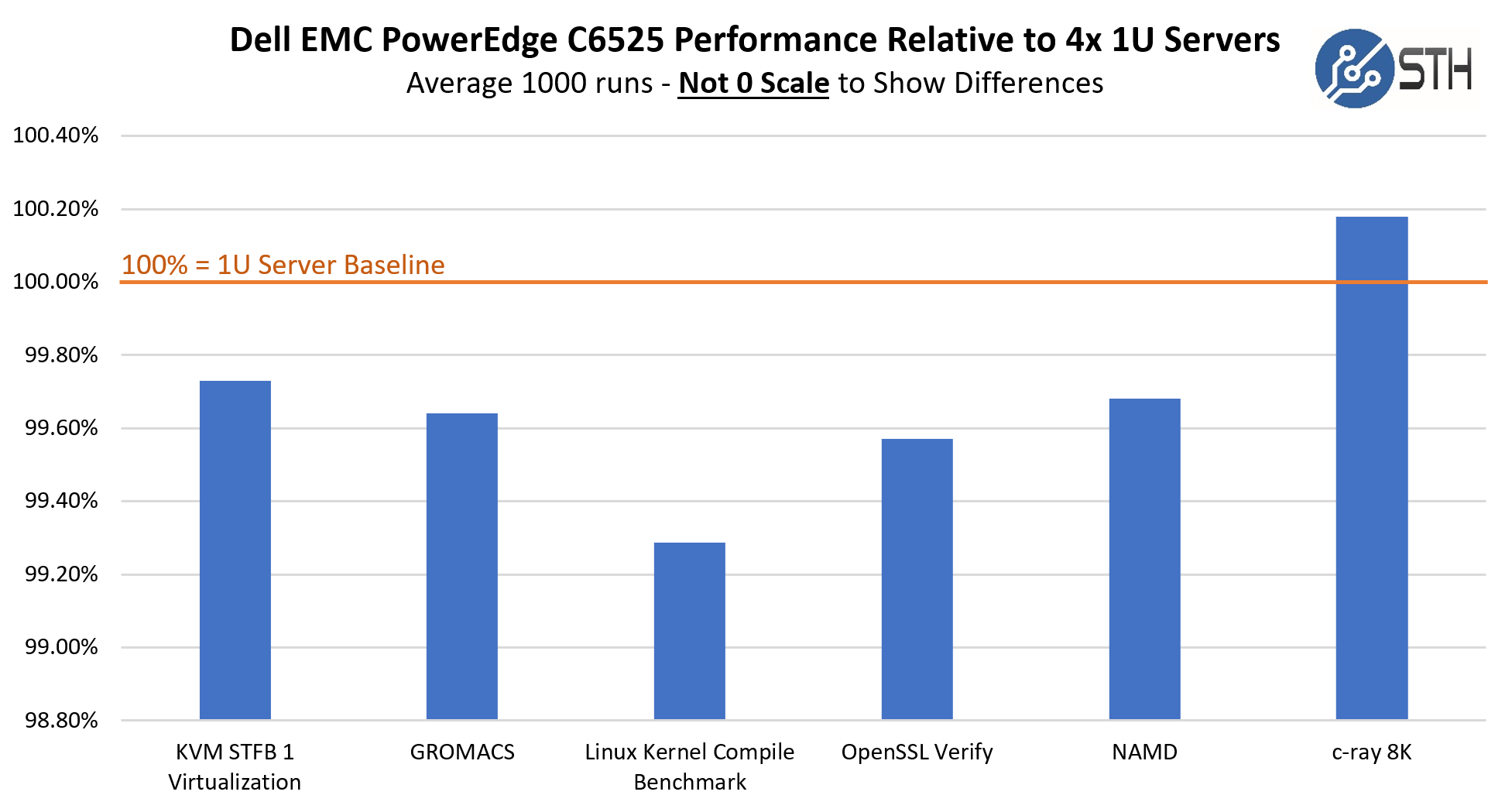

Here, please note this is not using a 0 Y-axis. The differences are sub 0.8% so they would all look as though they are exactly on the 100% marker. The key takeaway is that we are within test variances for different runs, even using a large number of runs. We did not see any notable thermal throttling even with the chassis in a heavy-stress environment.
With these results, it seems as though the PowerEdge C6525 is running CPUs at their full performance levels without throttling CPUs in the process. We did not get to test higher-end CPUs since Dell’s iDRAC can pop field-programmable fuses in AMD EPYC CPUs that locks them to Dell systems. Normally we would test with different CPUs, but we cannot do that with our lab CPUs given Dell’s firmware behavior.
Next, we will continue with our power consumption testing followed by our STH Server Spider and final words.
Dell EMC PowerEdge C6525 Power Consumption to Baseline
One of the other, sometimes overlooked, benefits of the 2U4N form factor is power consumption savings. We ran our standard STH 80% CPU utilization workload, which is a common figure for a well-utilized virtualization server, and ran that in the sandwich between the 1U servers and the PowerEdge C6525. With dense servers, heat is a concern, so we replicate what one would likely see in the field. This is the only way to get useful comparison information for 2U4N servers.
Here is what we saw in terms of performance compared to our baseline nodes.
As you can see, we are getting a small but noticeable power efficiency improvement with the PowerEdge C6525’s 2U4N design. Had Dell used fully independent nodes, each with its own cooling, we would expect to see higher power consumption here than in our control set.
This is a 2-3% power consumption improvement. Part of that may be running power supplies at higher efficiency levels. Part of it is the shared cooling. When one combines power consumption savings along with increasing density, that can be a big win for data center operators. If Dell switches to 80Plus Titanium power supplies, adding even 1% more efficiency here may have some tangible TCO benefit for these dense systems.
Next, we will get to our STH Server Spider and our final words.
