Dell EMC PowerEdge C6525 Management

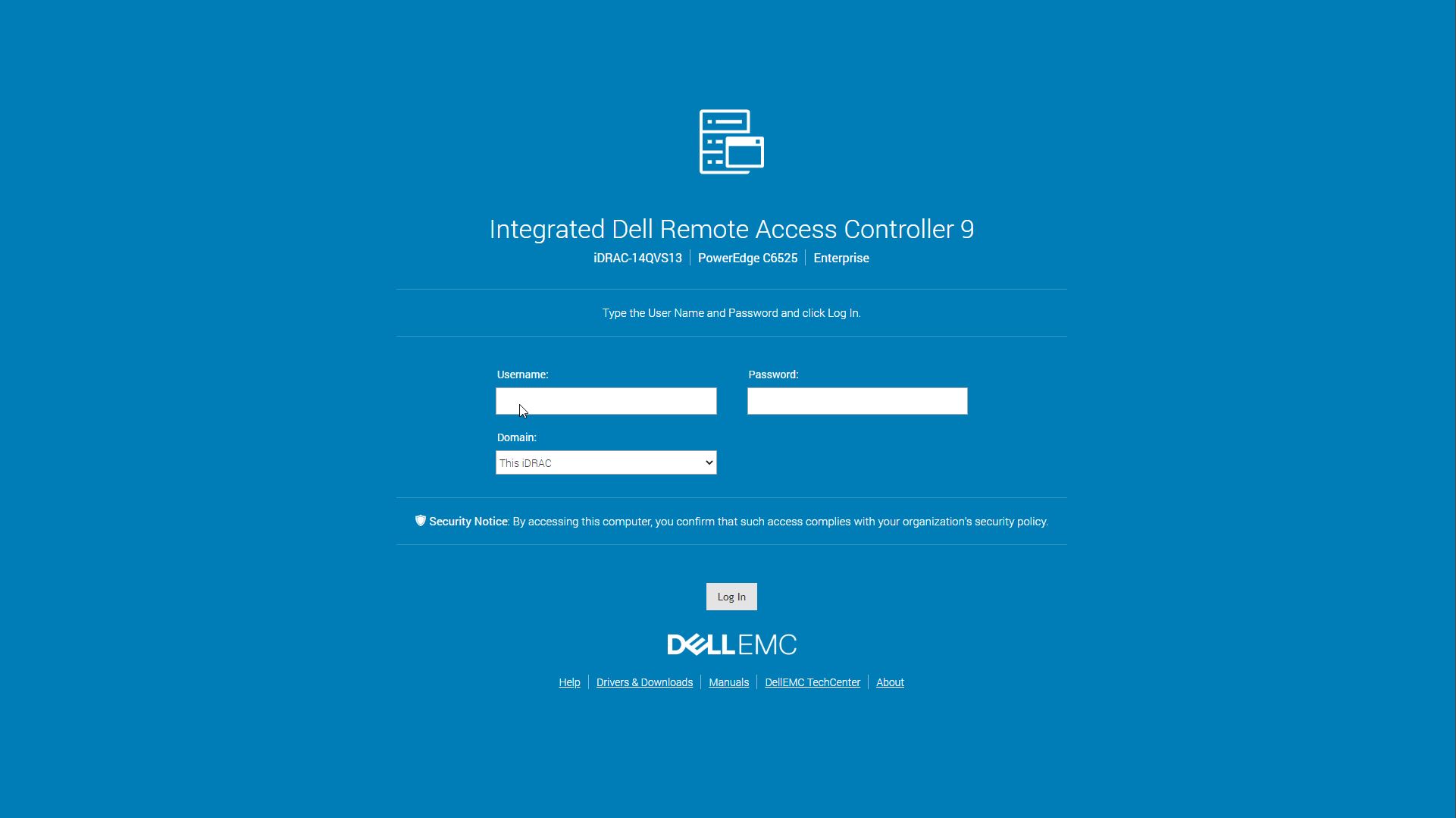

The Dell EMC PowerEdge C6525 offers Dell iDRAC 9. Logging into the web interface, one is greeted with a familiar login screen.

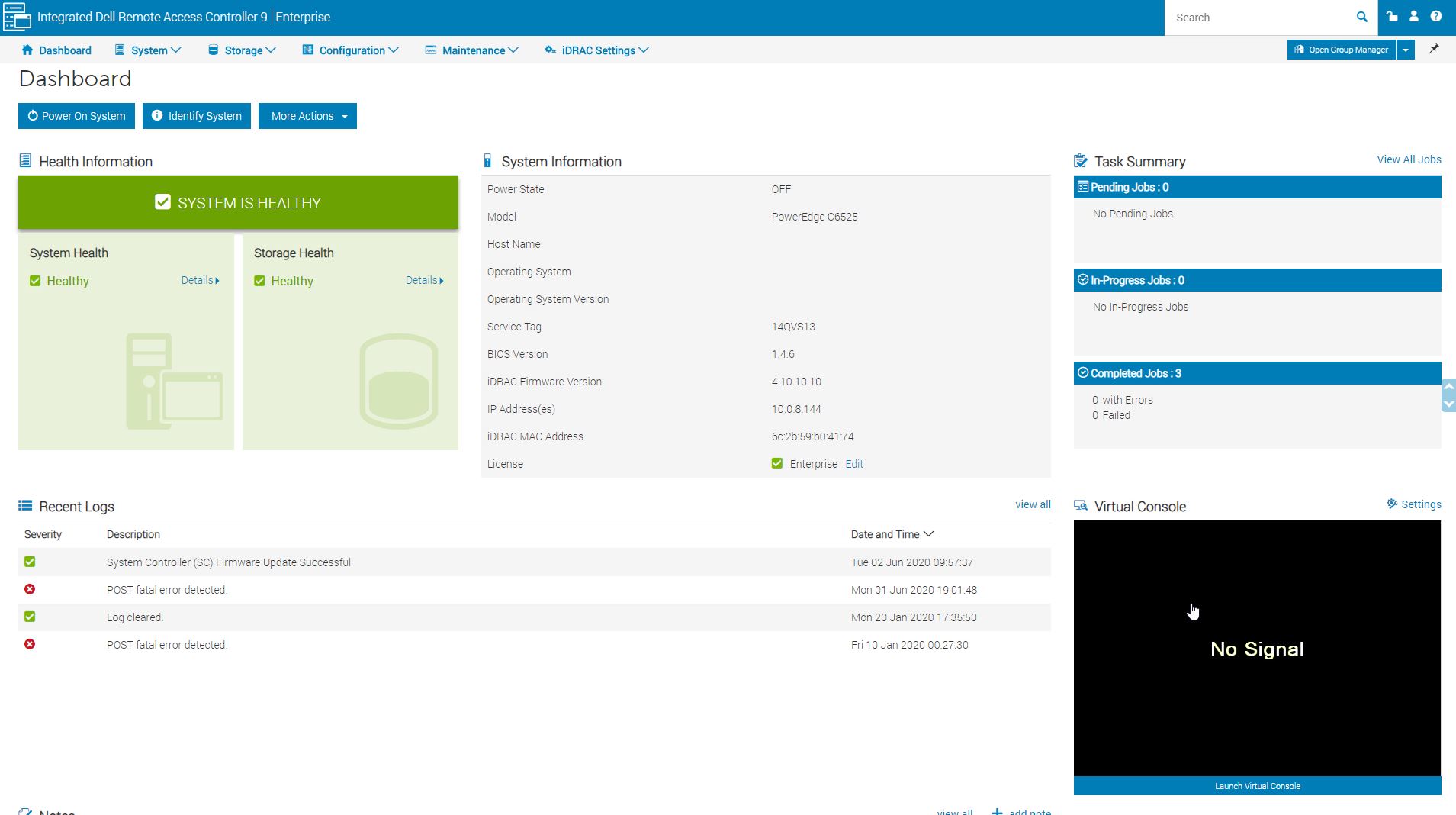

An important aspect of this system that many potential buyers will be interested in is the integration with existing Dell management tools. Since this is iDRAC 9, and Dell has been refining the solution for a few years even with AMD platforms, this works as one would expect from an Intel Xeon server. If you have an existing Xeon infrastructure, Dell makes adding AMD nodes relatively transparent.
Another feature worth noting is the ability to set BIOS settings via the web interface. That is a feature we see in solutions from top-tier vendors like Dell EMC, HPE, and Lenovo, but many vendors in the market do not have.
The iKVM feature is a must-have feature for any server today as it has one of the best ROI’s when it comes to troubleshooting. iDRAC 9 features several iKVM console modes including Java, ActiveX, and HTML5.

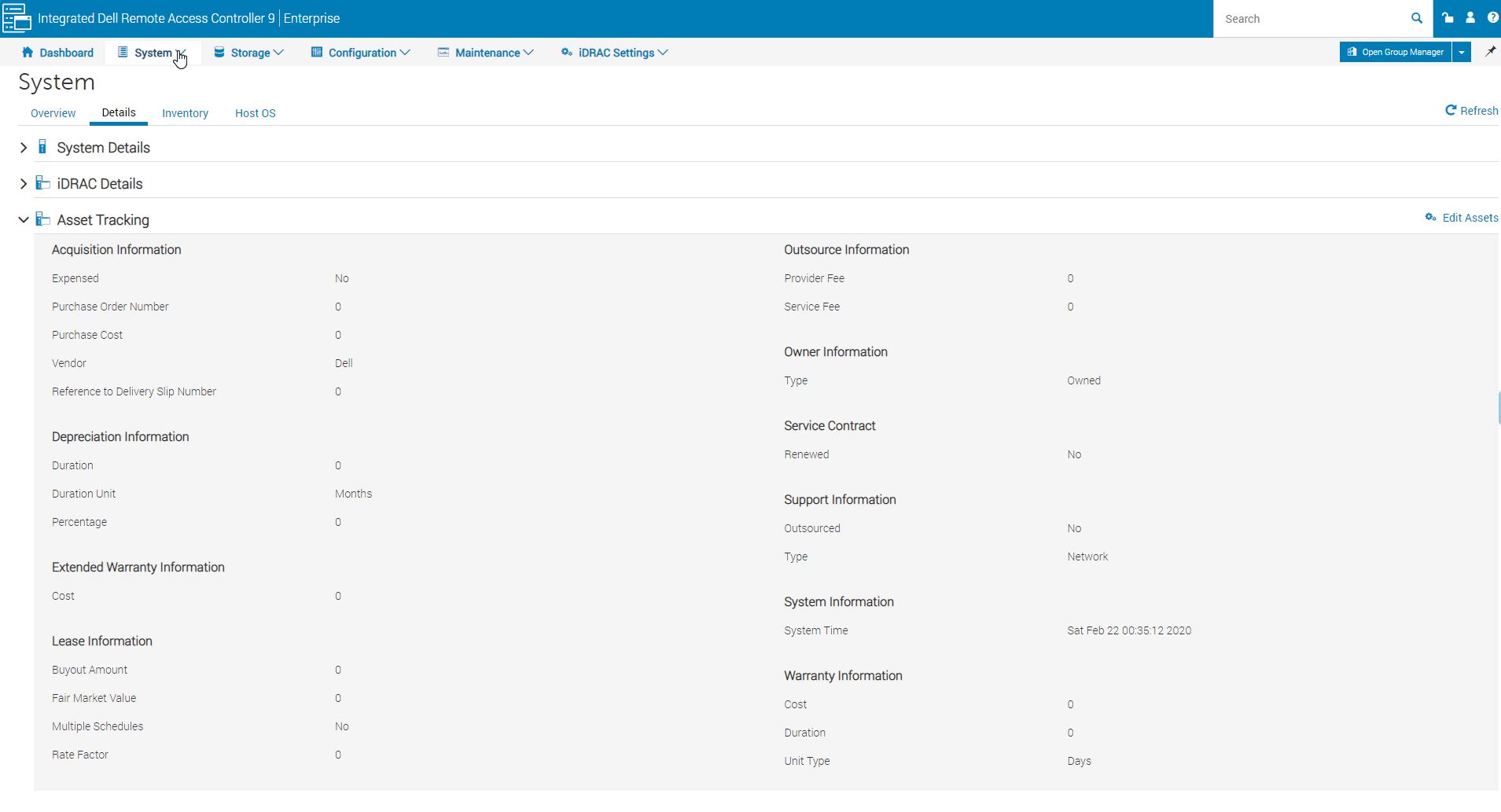

Modern server management solutions such as iDRAC are essentially embedded IoT systems dedicated to managing bigger systems. As such, iDRAC has a number of configuration settings for the service module so you can set up proper networking as an example. This even includes features such as detailed asset tracking to monitor what hardware is in clusters. Over time, servicing clusters often means that configurations can drift, and Dell has solutions to help the business side of IT such as tracking the assets.
We probably do not cover this enough, but there are other small features that Dell has. Examples here are selecting the boot device at next boot, important if you want to boot to iKVM media for service or something like that. Dell has an extremely well-developed solution that is a step above white box providers in terms of a breadth of features. Many providers offer the basic set, but Dell has something that goes beyond this.
As we mentioned earlier, Dell is still monitoring the C6525 at the node level whereas we are seeing an industry trend towards putting BMCs in 2U4N chassis. Since many of the hyper-scalers are moving towards more BMCs, this is something that we expect will be more common.
There is another aspect of iDRAC 9 that impacts our testing. We are going to cover that in the test configuration before getting to performance.
Dell EMC PowerEdge C6525 Test Configuration
For our testing we used the following configuration:
- System: Dell EMC PowerEdge C6525 4-node configuration

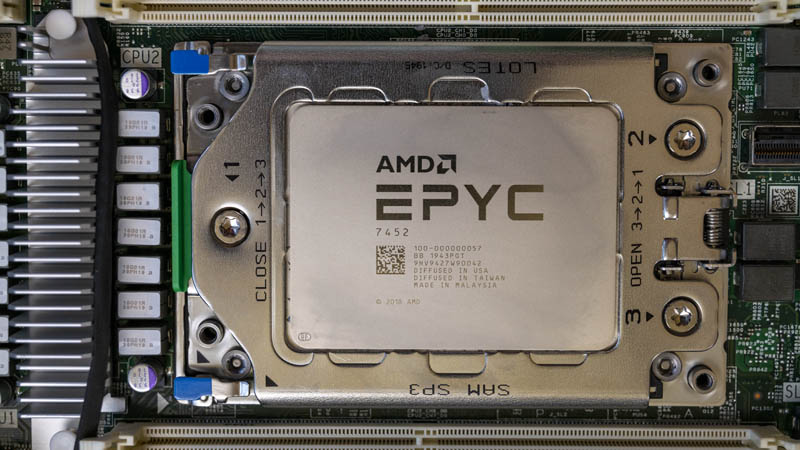

- CPUs (in pairs): 4x Dual AMD EPYC 7452 (32 core/ 64 thread) processors
- Memory: 512GB (16x 32GB) per node
- SSDs: 2x Intel DC S3710 400GB SSDs per node
- OCP LAN: Broadcom 25GbE OCP NIC 3.0
This is a fairly lightweight configuration but these would be typical configurations for this server. We had to augment the configuration Dell sent in order to make it similar to other test configurations we had.
Normally with 2U 4-node systems, we augment the system by adding different processors. We then test higher and lower TDP parts. With the Dell EMC PowerEdge servers, we cannot do this. The PowerEdge C6525. Without a BMC, iDRAC 9 blows field-programmable fuses in the AMD EPYC CPUs in order to bind CPUs to Dell platforms as a security measure. This was actually a feature we first found on the Dell EMC PowerEdge R7415 the hard way, but it took us until after that review to confirm.
Without a PCH, this is used to secure the platform, but it is a big difference. For us, we cannot put our EPYC CPUs in this chassis and risk that they become unusable in platforms from other vendors that we test. We have confirmed that this is expected functionality with both AMD and Dell.
For buyers of these systems, this is a net good feature. Increasing platform security is a primary objective for Dell, AMD, and customers. Where this can be problematic, outside of a lab context, is in the circular economy of IT parts. After a HPC center or enterprise customer removes these systems, the CPUs cannot be used outside of the Dell ecosystem if they have these fuses blown. Take a liquid-cooled C6525 installation. Many purchasing equipment on the used market will not have liquid cooling. The CPUs will likely be removed from these nodes. After they are removed, the node will likely need to be recycled and the CPUs will only be usable in Dell sockets leading to an oversupply of CPUs compared to sockets. To Dell and its customers, this is not necessarily their concern as these are downstream users of this gear, just as we were of the C6100. The concern is simply that this behavior is aligned with security over eco-friendliness as it will produce a lot of waste of assets that could otherwise be utilized by downstream customers.
Next, we are going to look at the PowerEdge C6525 performance before giving our final thoughts.
