ASUS RS700-E11-RS12U Power Consumption
On the power consumption side, we saw something that we were not entirely expecting given the performance. The two 1.6kW 80Plus Titanium power supplies were very efficient with a 247W idle. That was much lower than we saw on the 2U platform we tested recently with the same processors, and is likely a combination of higher-efficiency PSUs and different factory BIOS tuning.
At 70% load, we hit 801W and we saw a maximum of 970W. We will quickly note that there is a lot of room to increase power consumption in this platform by adding more and higher-power devices, so the 1.6kW PSUs from Gospower seem like good choices.
Next, let us get to the STH Server Spider.

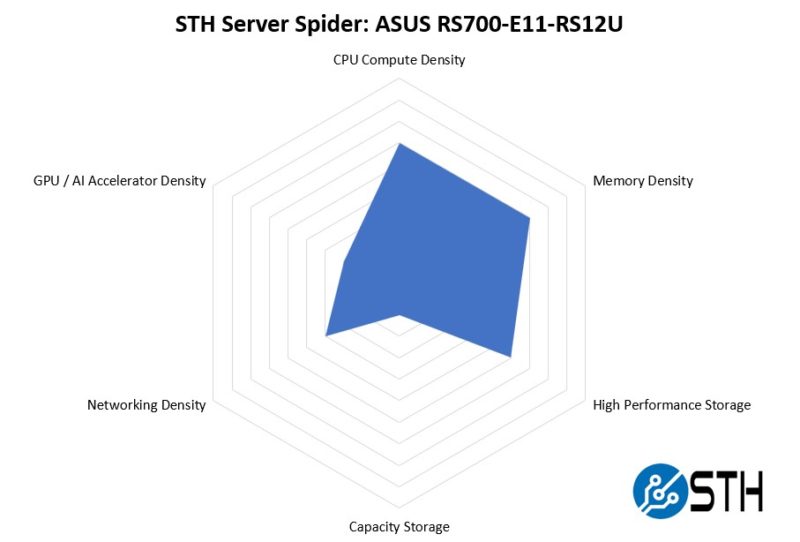

STH Server Spider ASUS RS700-E11-RS12U
In the second half of 2018, we introduced the STH Server Spider as a quick reference to where a server system’s aptitude lies. Our goal is to start giving a quick visual depiction of the types of parameters that a server is targeted at.
This is a 1U platform that offers the full CPU and memory configuration of this Xeon generation making it a balanced and dense platform. Even as a 1U server, there is a lot of NVMe storage in front and PCIe Gen5 expandability in the rear, especially with the internal slot for the PIKE RAID controller/ HBA and on-motherboard M.2 SSD slots.
While this platform can support GPUs, and has an external fan option to add a dual-width GPU to the full-height riser, it is not meant to be the densest GPU/ accelerator platform.
Final Words
Overall, the design with forward heat pipes and heatsink ears performed very well for us. ASUS did a great job here.
Beyond that, the server itself packs a ton of functionality into a 1U server platform. 32 DIMM slots, two 4th Gen Intel Xeon Scalable CPUs, 12x NVMe drives plus two M.2 boot devices, two full height PCIe Gen5 slots, one low profile, and even an internal PIKE card. Plus, we get 10Gbase-T as standard. There is a ton here.
Overall, the ASUS RS700-E11-RS12U was refreshingly surprising as we saw better-than-expected results in this 1U server.
