ROG Zenith II Extreme Motherboard AIDA64 CPU Benchmarks
Benchmark pages of AIDA64 Extreme provide several methods to measure system performance. These benchmarks are synthetic, so their results show only the theoretical (maximum) performance of the system.
CPU and FPU benchmarks of AIDA64 Extreme are built on the multi-threaded AIDA64 Benchmark Engine that supports up to 1280 simultaneous processing threads. It also supports multi-processor, multi-core and Hyper-Threading enabled systems. More information about these benchmarks can be found here.

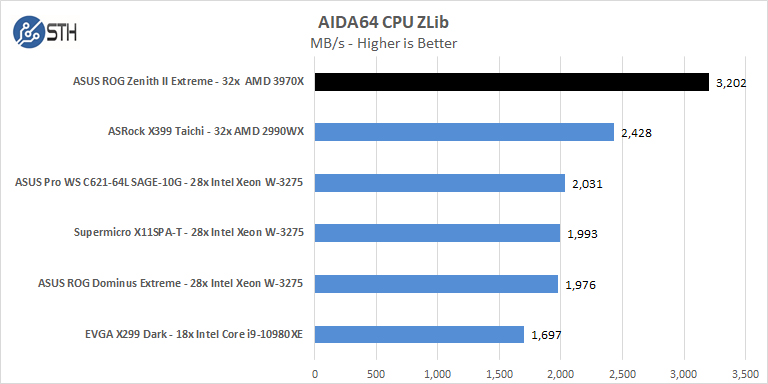

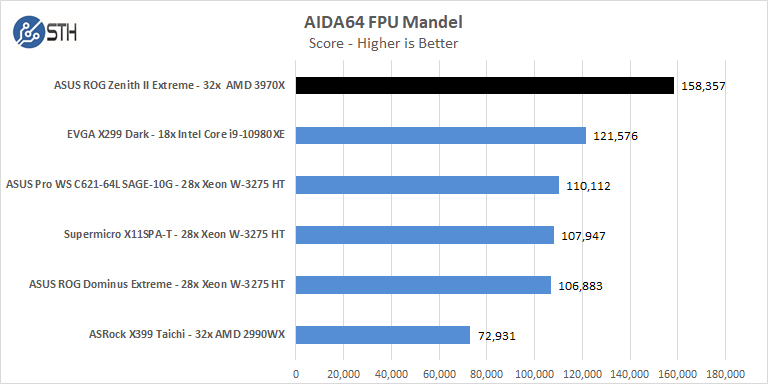

The ROG Zenith II Extreme Motherboard and AMD Ryzen Threadripper 3970X receives the top scores, but sometimes the Intel W-3275 processor had clear advantages. These are fairly synthetic tests, but it helps give some more context and coverage.
Next, we are going to look at the power consumption before getting to our final thoughts.
