ASUS NUC 14 Pro Internal Hardware Overview

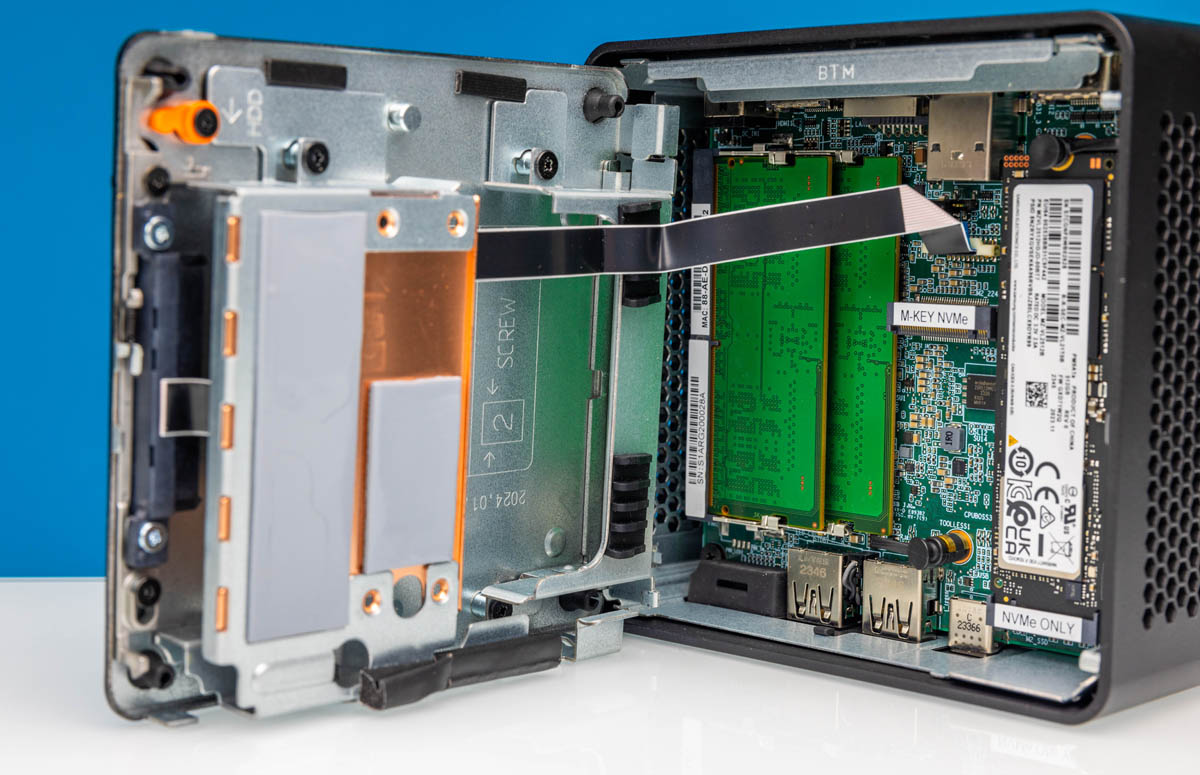

Pulling the bottom cover away, we get features on that bottom cover. There is a 2.5″ SATA hard drive/ SSD slot since we have the tall chassis. That is the reason for the ribbon cable. We then get a little heatsink assembly for the NVMe SSDs.

ASUS NUC 14 Pro Open Bottom Cover SSD
ASUS NUC 14 Pro Open Bottom Cover SSD

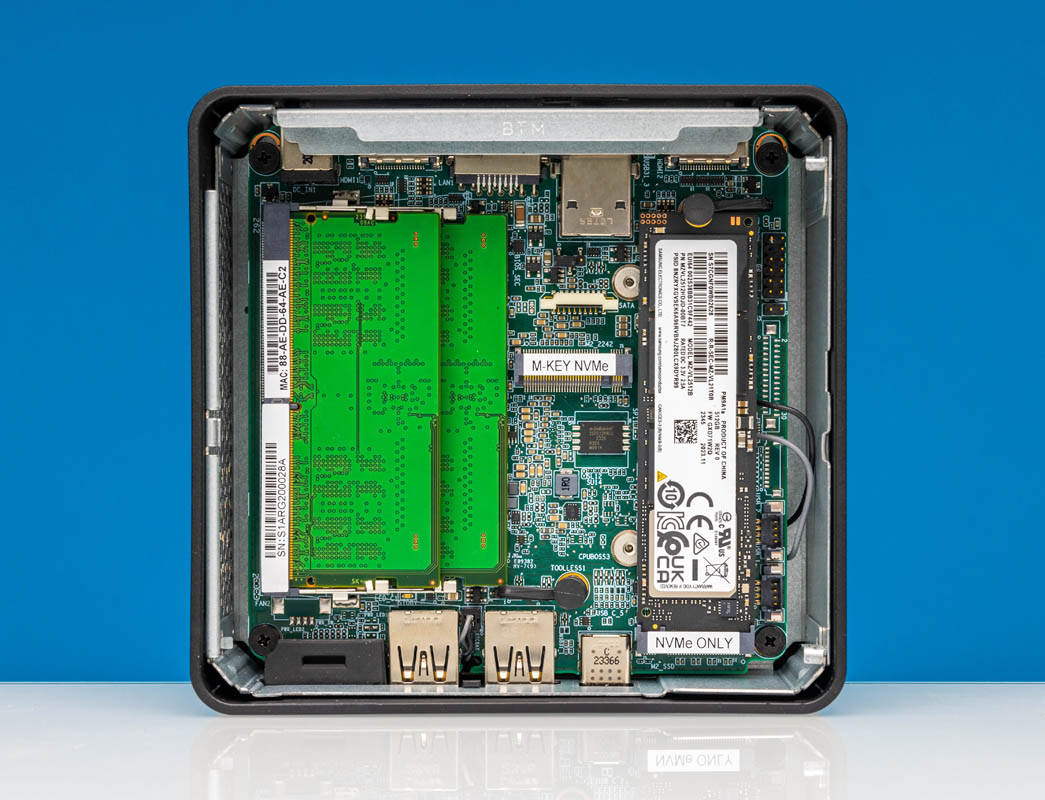

Here is the system with the top off.

ASUS NUC 14 Pro Internal Configured
ASUS NUC 14 Pro Internal Configured

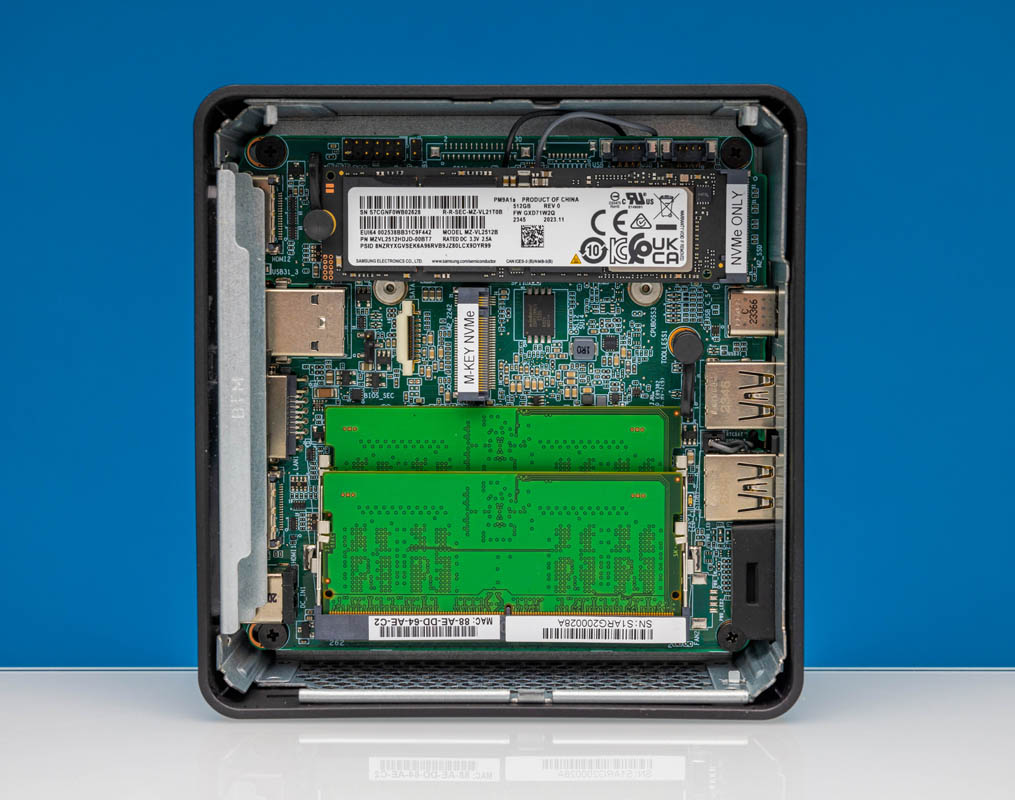

Here it is flipped into our normal orientation.

ASUS NUC 14 Pro Internal Configured 2
ASUS NUC 14 Pro Internal Configured 2

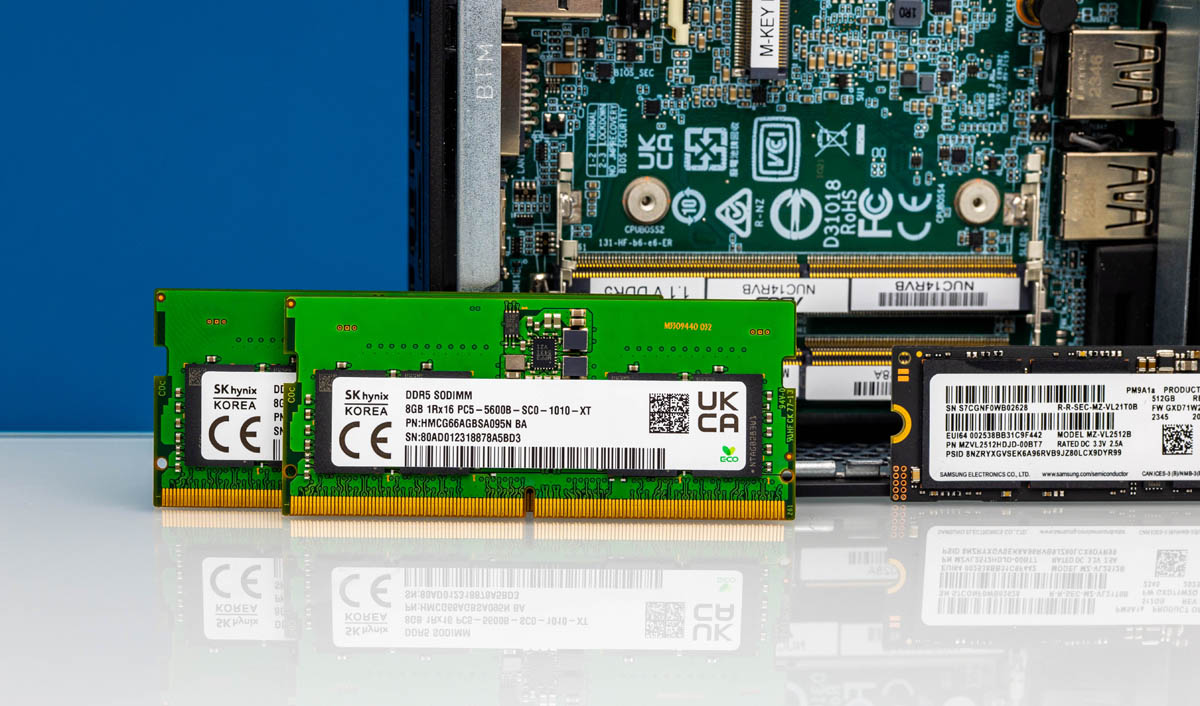

The system takes two DDR5-5600 SODIMMs. We can see on the second SODIMM slot the motherboard name NUC14RVB.

ASUS NUC 14 Pro DDR5 5600 SODIMMs
ASUS NUC 14 Pro DDR5 5600 SODIMMs

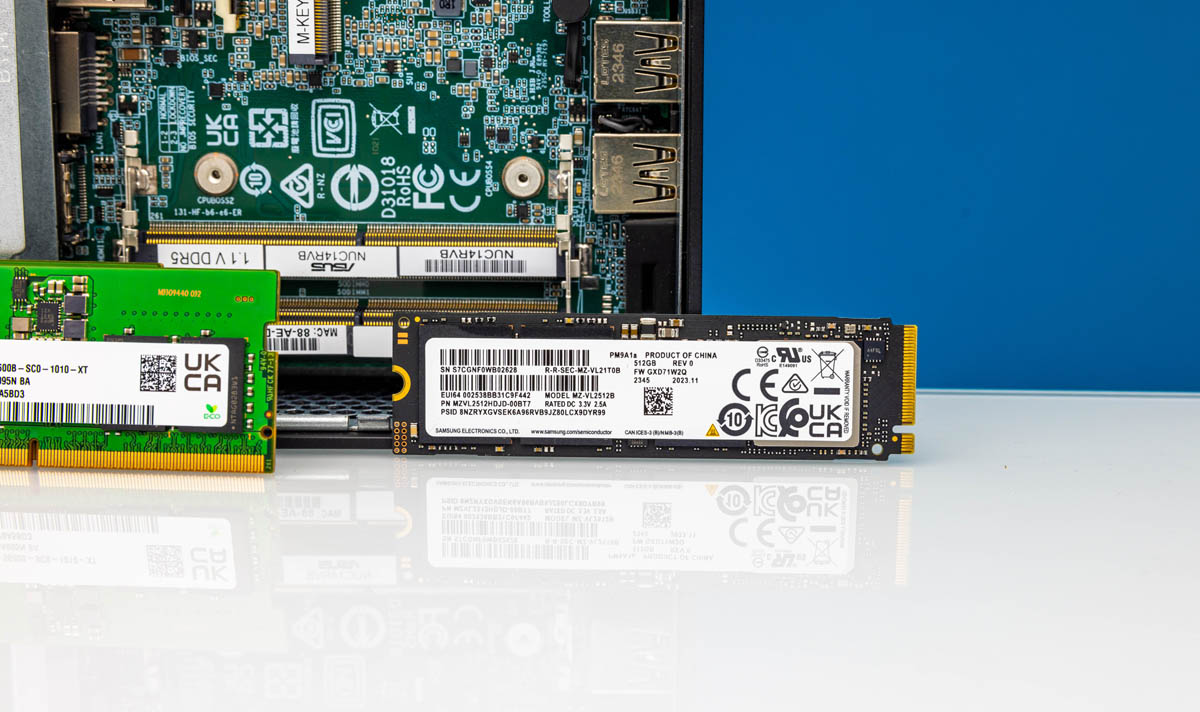

We also had a Samsung PM9A1a 512GB NVMe SSD installed. The primary storage here is a M.2 2280 (80mm) SSD.

ASUS NUC 14 Pro Samsung PM9A1a M.2 NVMe SSD
ASUS NUC 14 Pro Samsung PM9A1a M.2 NVMe SSD

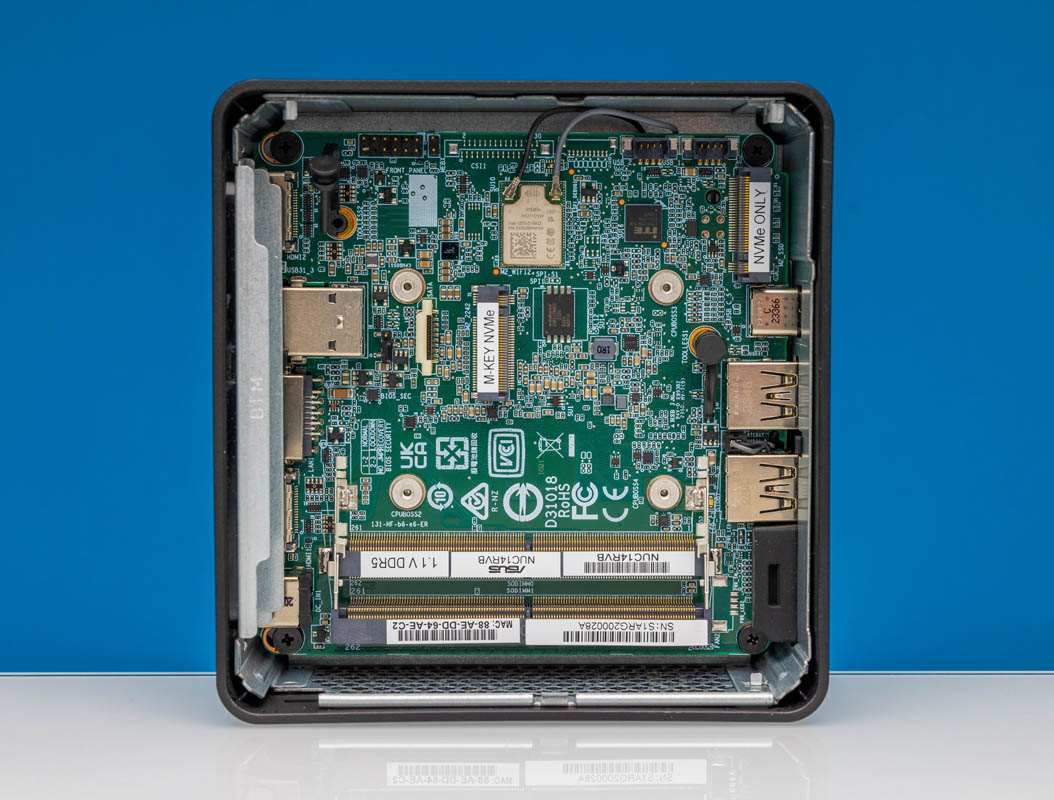

Here is the motherboard without components installed.

ASUS NUC 14 Pro Internal Bare
ASUS NUC 14 Pro Internal Bare

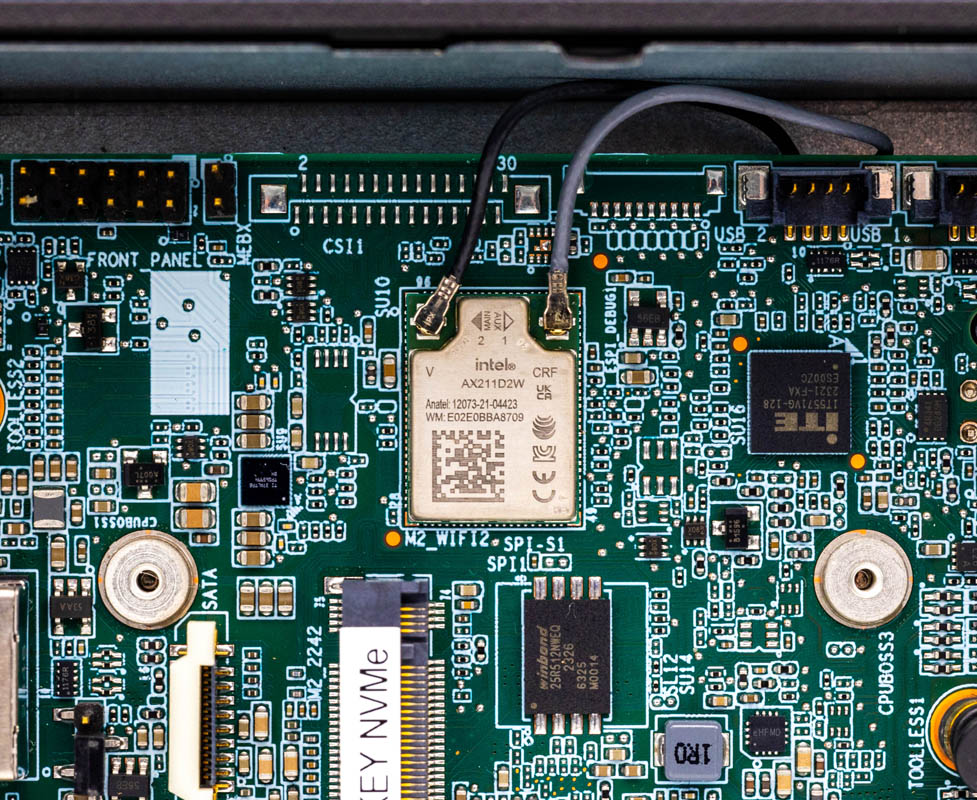

Something quite different here is that we have a soldered Intel AX211 (AX211D2W) on the motherboard. Many mini PCs opt for cards so this is a bit different.

ASUS NUC 14 Pro Built In Intel AX211 WiFi
ASUS NUC 14 Pro Built In Intel AX211 WiFi

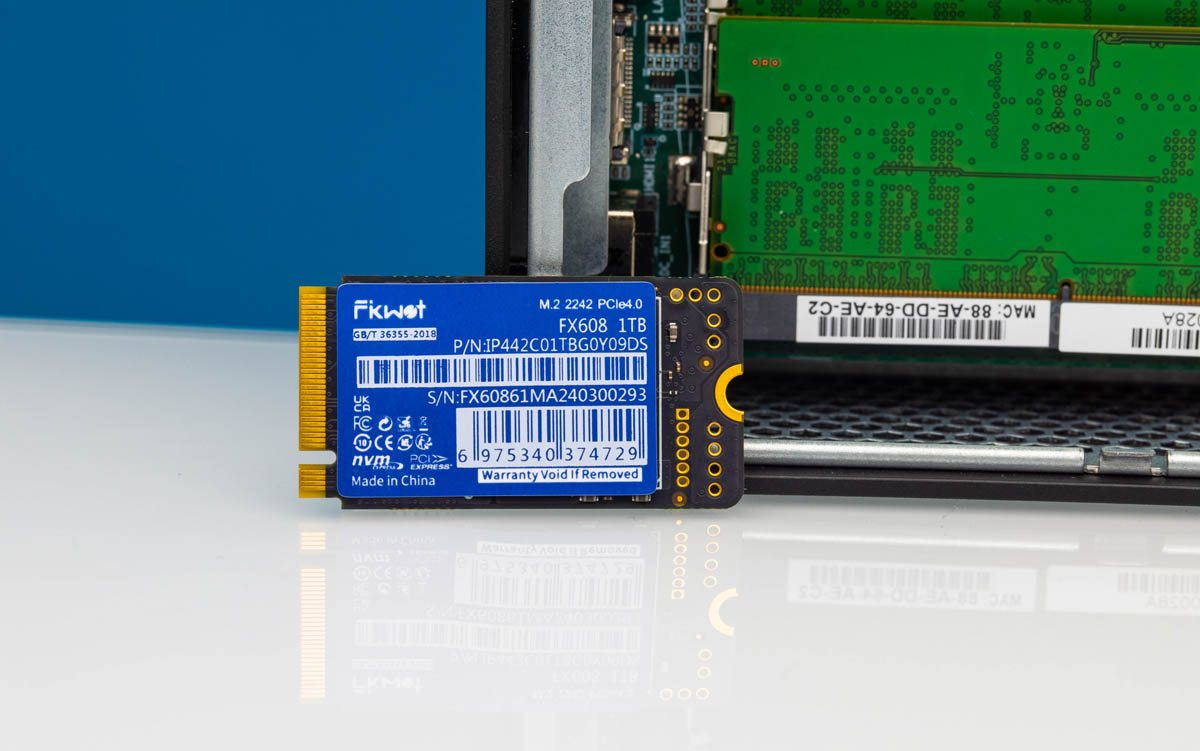

There is a second slot for a M.2 2242 drive. We tried this Fikwot 1TB FX608 SSD. This is a strange little SSD that we have a few of. Sometimes they work in systems, sometimes they do not. Sometimes, different drives of the same model work or do not work in the same system. We purchased these because they were the cheapest we could find.

ASUS NUC 14 Pro Fikwot Did Not Work
ASUS NUC 14 Pro Fikwot 42mm

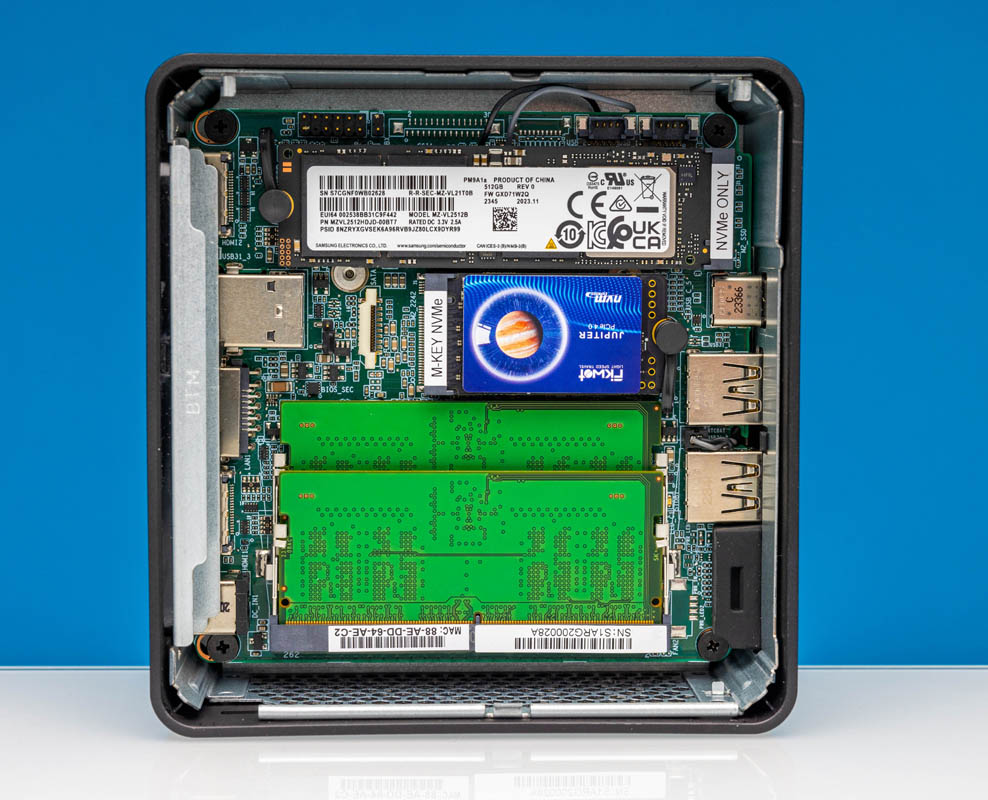

Still, the blue label means it sticks out in the system, so here is a dual SSD setup. There is still room for a SATA 2.5″ drive as well.

ASUS NUC 14 Pro With Extra SSD
ASUS NUC 14 Pro With Extra SSD

Next, let us get to the performance.
