Rounding out our mini-series on the new ASUS NUCs that we started a bit ago, we have our ASUS NUC 14 Pro review. For many, this form factor will be the most familiar of the bunch. After ASUS procured the Intel NUC business, lines like this one are now ASUS brands. As such, let us take a look at what we get in the latest generation.

We had a video with this unit and two NUC platforms that you can find here:

This model is technically the ASUS NUC 14 Pro Tall. There is a short version available that lacks some of the expansion capabilities. We did not have the short version to test.

ASUS NUC 14 Pro External Hardware Overview

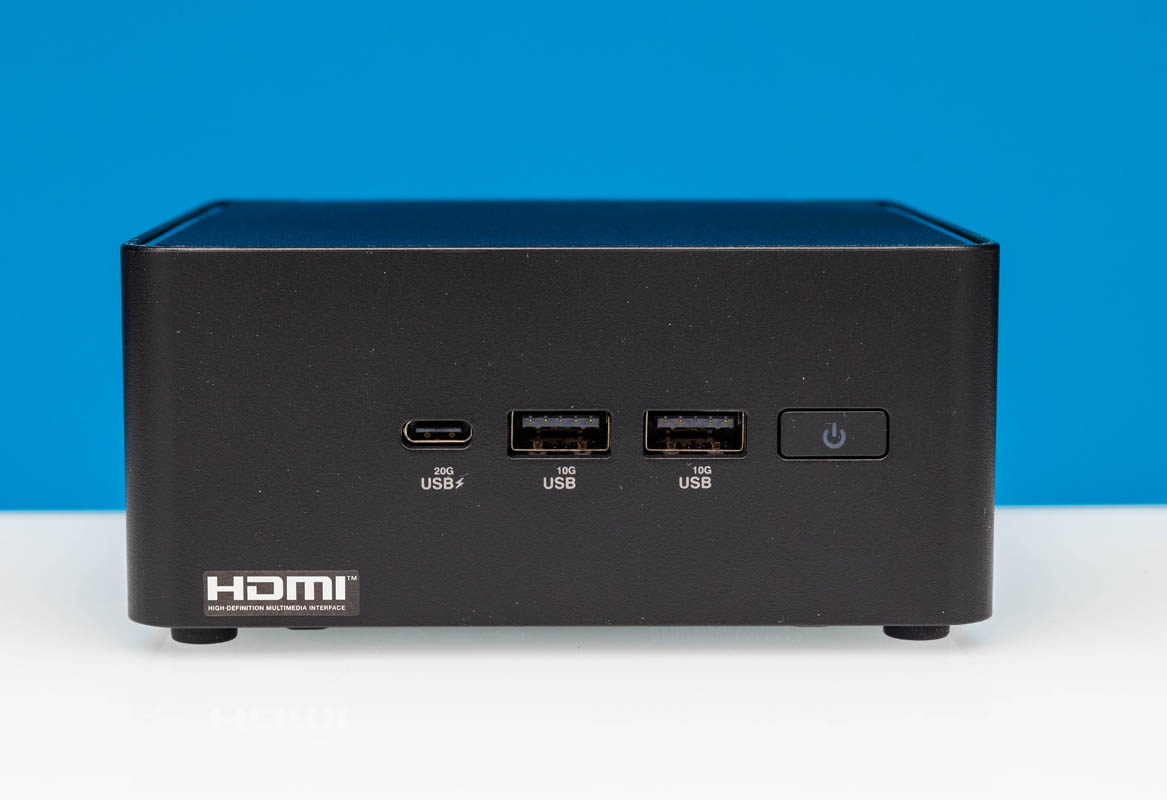

In the front of the system, we get a USB 3.2 Gen 2×2 20Gbps USB Type-C port. There are also a pair of 10Gbps USB 3.2 Gen2 ports and the power button.

ASUS NUC 14 Pro Front
ASUS NUC 14 Pro Front

A small but nice feature is that ASUS labels its USB ports with the speed. We review plenty of mini PCs, and every single one should do this, yet very few do.

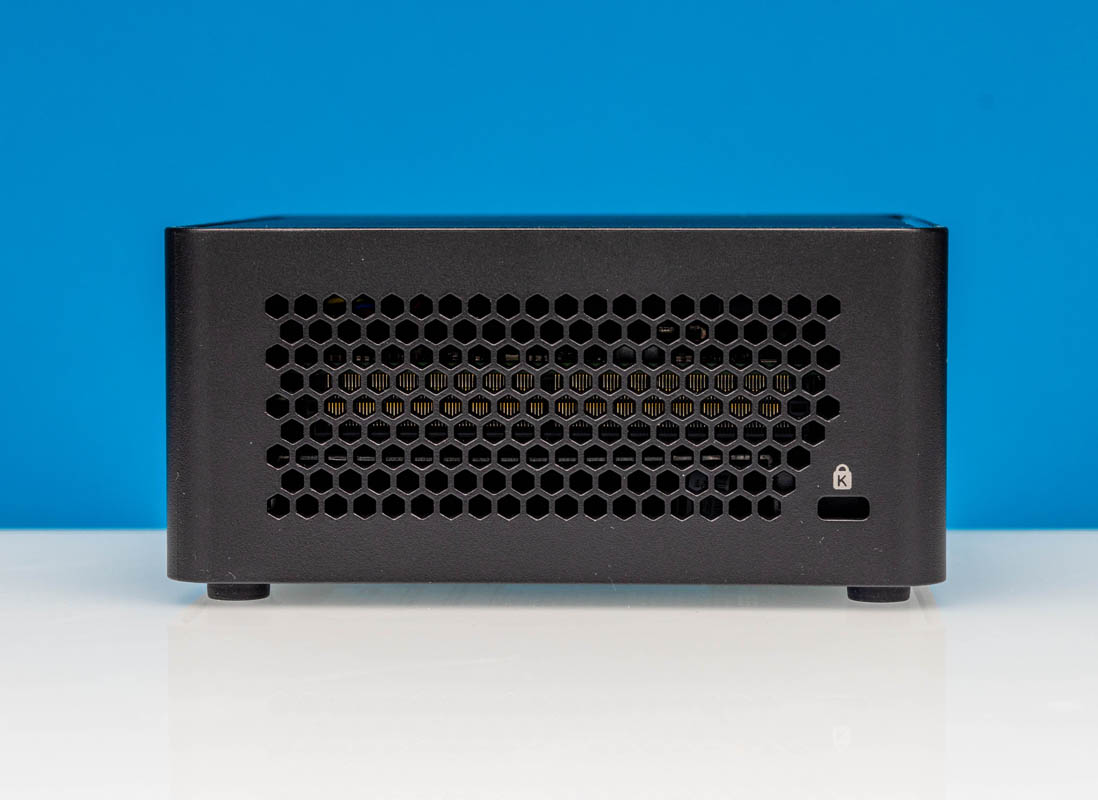

On one side, we get the Kensington lock port.

ASUS NUC 14 Pro Side 1
ASUS NUC 14 Pro Side 1

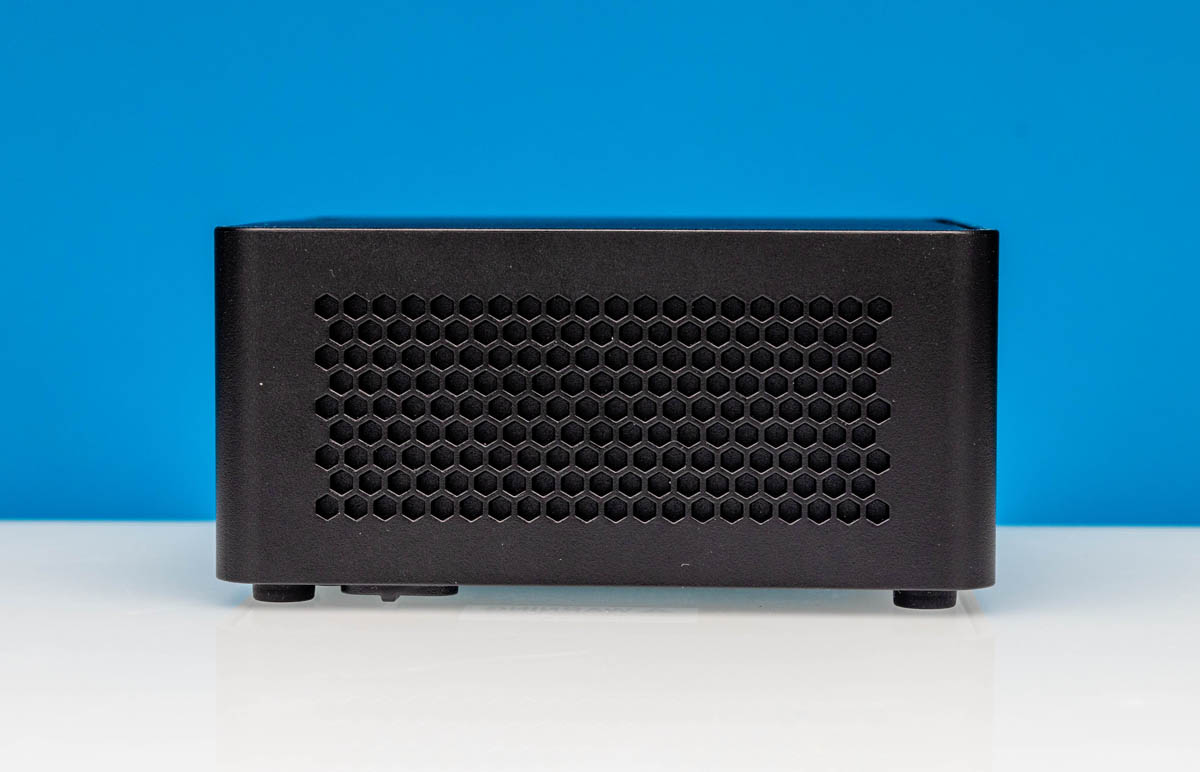

On both sides, we get vents.

ASUS NUC 14 Pro Side 2
ASUS NUC 14 Pro Side 2

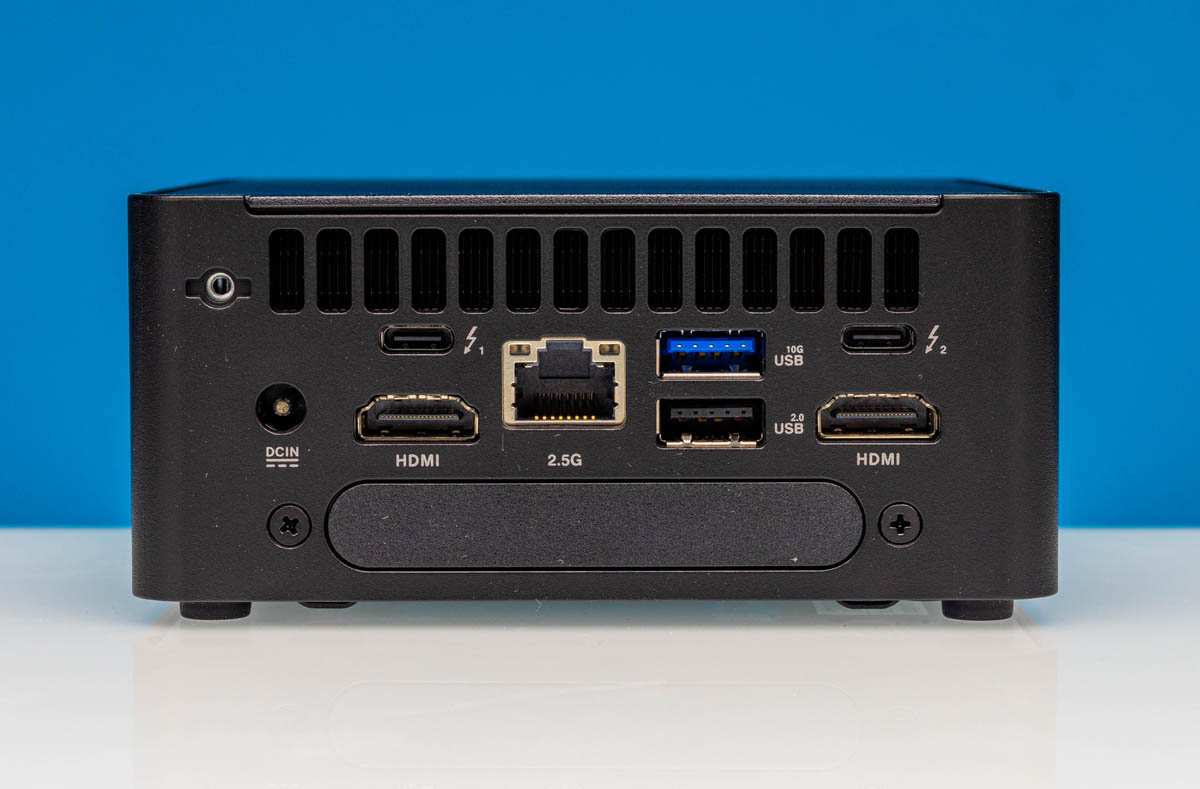

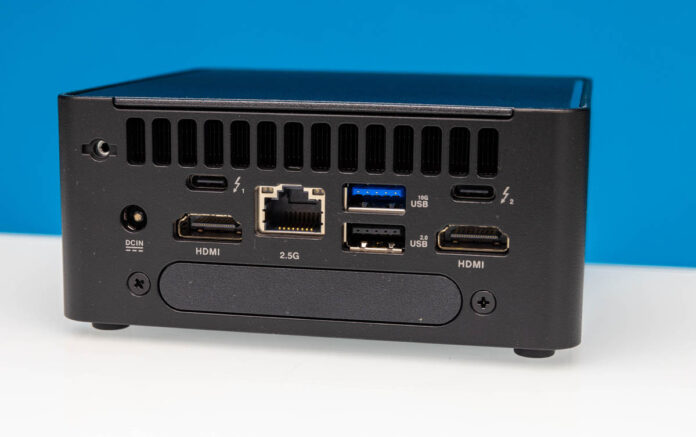

Here is the rear where most of the I/O is. One can see two HDMI ports. There is a 2.5GbE NIC port as well as two USB Type-A ports. One of the Type-A ports is a USB 3.2 Gen2 10Gbps port, while the other is USB 2.0. There are also two Thunderbolt 4 ports that can be used as display outputs as well.

ASUS NUC 14 Pro Rear 2
ASUS NUC 14 Pro Rear 2

Below the ports is an expansion slot. We tried an older USB and NIC expansion from a NUC 12, and it did not work here, so check compatibility. It is a bit of a bummer that these are not more standardized.

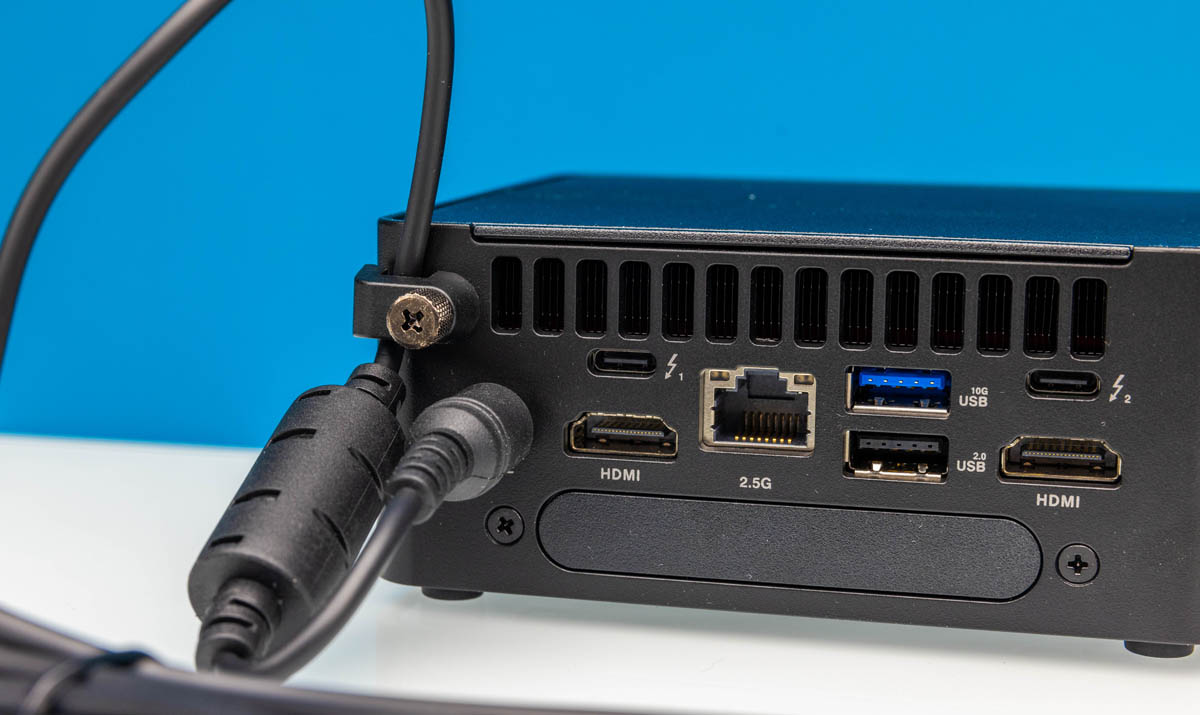

The DC input has a neat little feature. Here, we can see the power cable retention bracket at work to help minimize unwanted power disruptions.

ASUS NUC 14 Pro Power Retention
ASUS NUC 14 Pro Power Retention

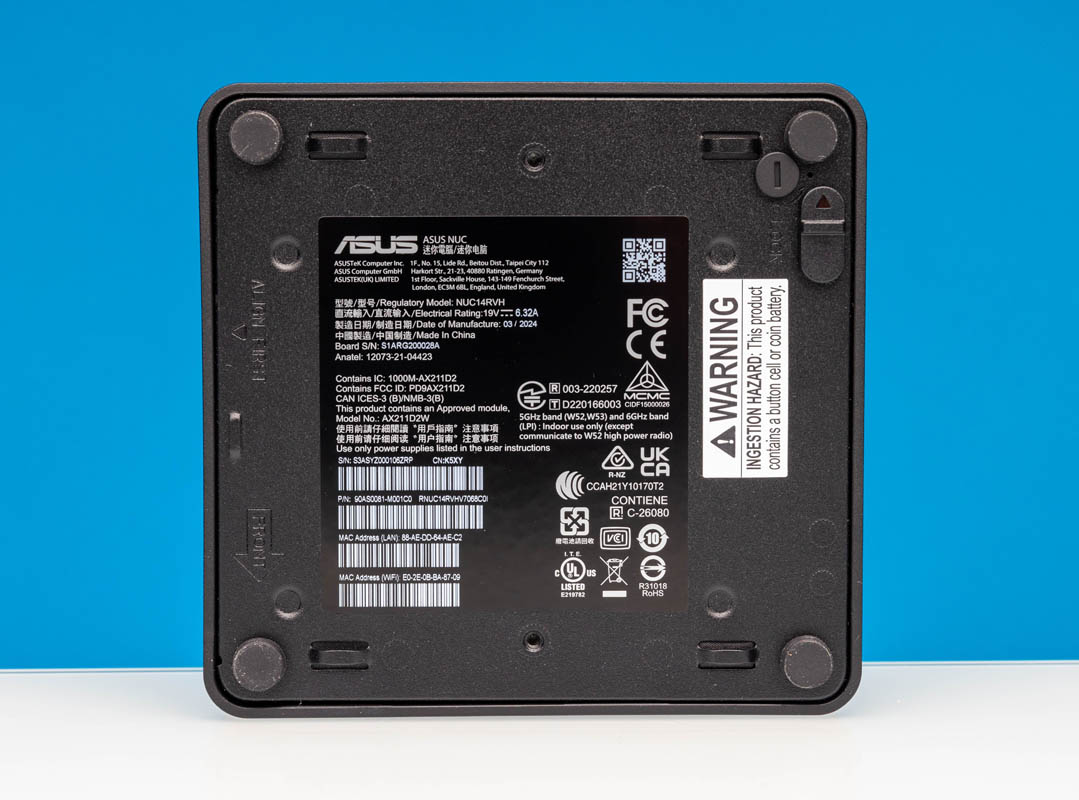

On the bottom, we get various mounting options as well as a nice label with things like barcodes for the MAC addresses.

ASUS NUC 14 Pro Bottom
ASUS NUC 14 Pro Bottom

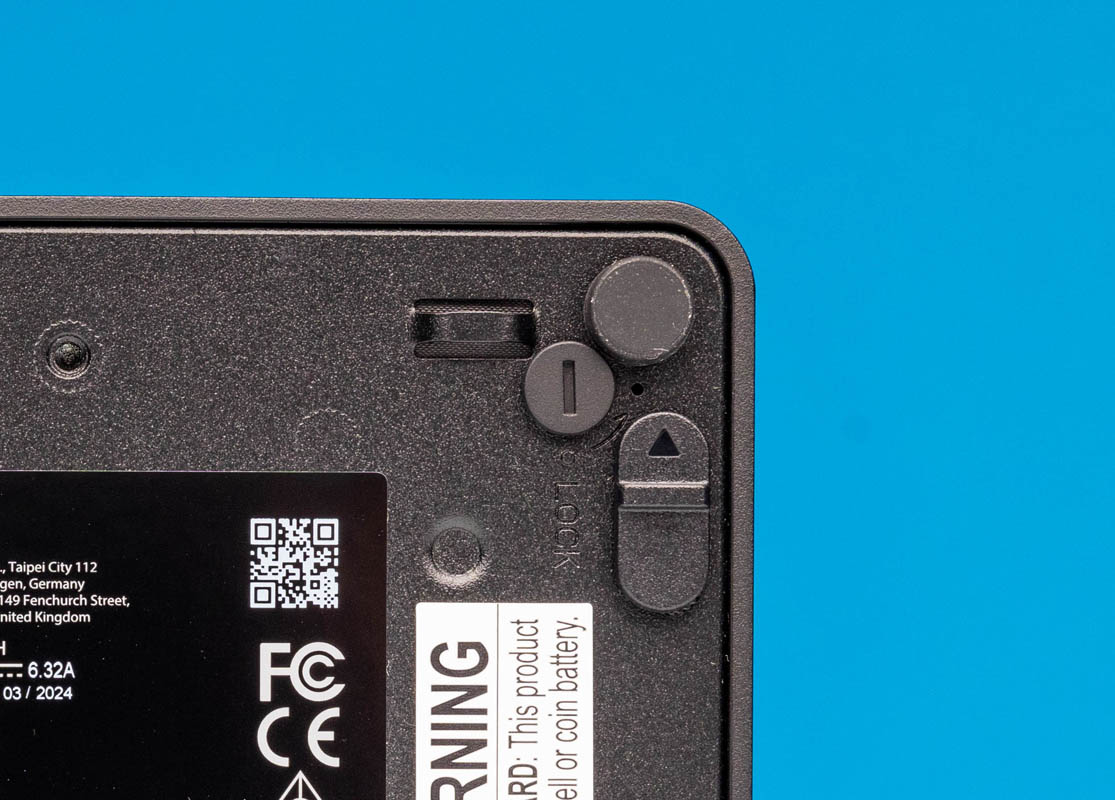

Probably the best feature is also the tool-less latching and locking mechanism for removing the bottom cover. This is super easy to use. We wish more mini PCs used tool-less chassis.

ASUS NUC 14 Pro Tool Less Bottom Cover
ASUS NUC 14 Pro Tool Less Bottom Cover

Next, let us open that cover and get inside the system.
