ASRock NUC BOX-1260P Internal Hardware Overview

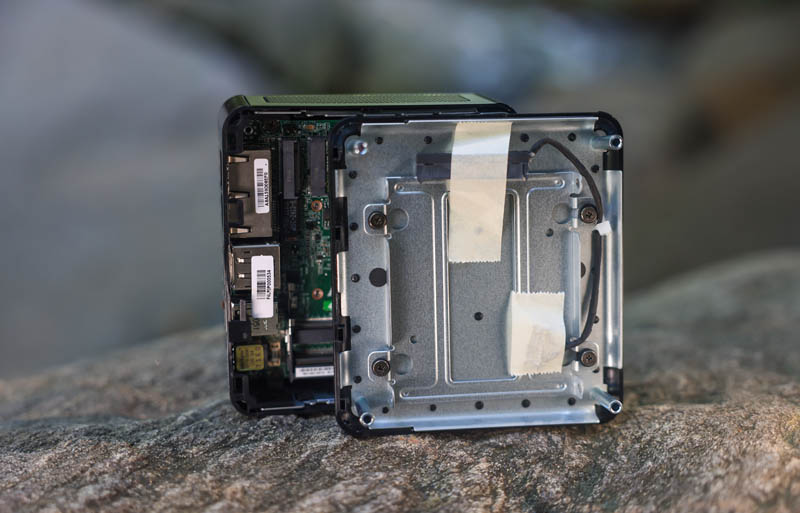

The inside of the bottom cover has a 2.5″ HDD/SSD mounting point, and a power/ data cable taped to it. We do not recommend using this slot as having a drive here can prevent air from flowing nicely inside the case. We generally want to limit the heat-generating components within these small systems. This 2.5″ mount is identical to the one in the 5800U unit, and is pictured below.
Once the bottom cover is removed, you can see a very compact unit. One can also immediately see that the NUC-1260P-1U motherboard is made by ASRock Industrial. Many vendors simply re-box Intel NUC motherboards so this is different.
The top has the Intel AX211 WiFi 6E and Bluetooth 5.2 NIC for wireless communications. This is an M.2 Key E, 2230 PCIe x1 interface.
We populated the SODIMM slots with two G.Skill Ripjaws 32GB SODIMMs for a total of 64GB. This is more ram than necessary for this use case, but we had these on hand and already validated them. The M.2 SSD slot above the WiFi module is where we put our 1TB WD Blue M.2 SSD. No particular reason for this part aside from the low power consumption and that we had this on hand. This M.2 SSD slot is a PCIe Gen4 x4 slot.
One other small item we noticed is that the SSD bowed a bit when it was fixed to the mounting point. This worked OK, but it would also not be one we would try to over-tighten.
Now, let us get to the performance.
