Market Impact and Our Guide
Perhaps the most interesting part then is simply trying to describe the AMD EPYC market these days. The EPYC 3000 series is a different segment, and the EPYC 7001 series is at its replacement cycle. On the other hand, we have Milan-X, Milan, frequency optimized Milan, and still some EPYC 7002 series “Rome” in the market. We actually purchased Rome Lenovo and HPE servers about three months ago so Rome is certainly still out there.

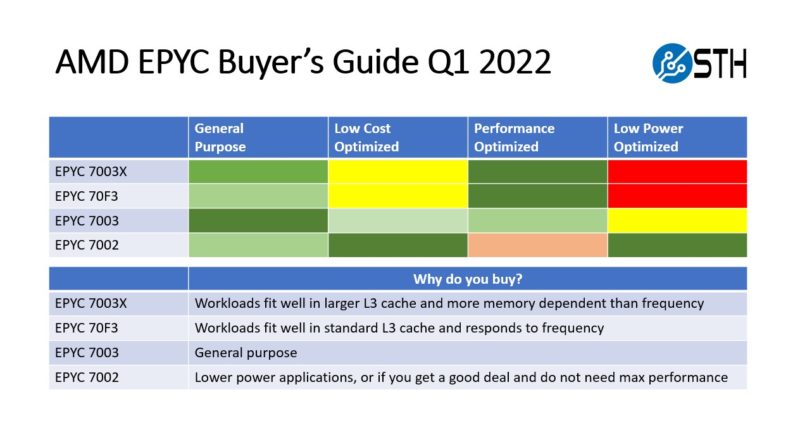

Above, we have our recommendations. Rome will be the lower-cost and lower-power options that we see used in some applications. Milan is faster, but sometimes that is not the optimization point. The mainstream EPYC 7003 parts are likely to be the big volume parts spanning many core count, power, and price points. The frequency optimized F-SKUs and cache-optimized Milan-X SKUs cost more, and use more power, but they are optimized for performance, especially when one can derive software license savings through higher performance cores. The task is then to match these specialized SKUs to their workloads. For that, AMD has some tools:

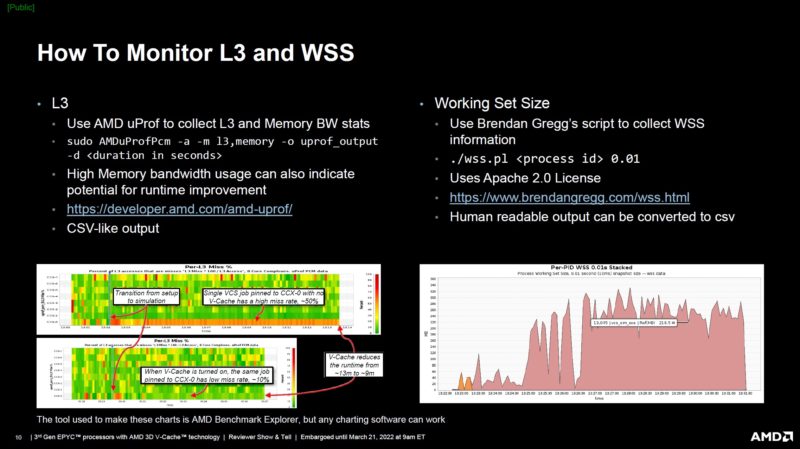

We asked AMD and they said that the uProf tool (pronounced “Micro Prof”) is designed to be AMD-only at this point. So it will not help you profile a system running on an Intel machine in your environment. The WSS (working set size) pearl scripts are designed to help understand how big an application is. This is important to gauge how much can be cached by larger L3 caches.
We will likely have more on these tools in the future, but for now, there is some direction and a challenge. It seems like many of the engineering applications we looked at run well on Milan-X, as we would expect from vendors AMD wanted to highlight at its event. There is certainly a trade-off in terms of clocks and cache. As a result, the challenge is the application, the data, and how they are used in actual workloads all matter for which CPU to recommend. One could say Milan-X with the worst case likely being losing 10-15% performance due to clock speeds. The real work is figuring out if you can benefit from additional cache today, and perhaps more importantly, in the future years of a server’s hardware lifecycle.
Final Words
AMD is doing something really interesting with Milan-X. It is essentially kicking off the mainstream GB-era of server chips at 0.75GB per chip, and 1.5GB of L3 cache in a dual-socket server, it feels that way. With many new technologies, the question is whether software will take advantage of the new capabilities. This is actually a question that AMD has a very different answer for.
We have tested a number of CPUs with things like AI accelerators for inferencing that companies like Intel are utilizing, or video codecs on Apple Silicon chips. Accelerators require code changes to utilize. Bigger caches are, well, bigger caches. Systems can already utilize them with no explicit code changes. Usage requires the right type of application and data to really pay off, but when it does, the gains can be enormous. Scale-wise, these gains are enough to have a major cloud provider rip out current-generation EPYC 7003 Milan parts for Milan-X variants. As larger cache sizes become the norm, perhaps software is written to better utilize the caches, but there is no manual intervention needed today.
Milan-X is a jolt for the entire AMD EPYC 7003 series. In some or many cases, the standard or frequency optimized parts are going to be better fitted. For HPC workloads that have high software costs, and can utilize the cache effectively, Milan-X can be a game-changer. There are other workloads out there that will be the same, and Milan-X will be a tool to find those workloads. Most servers deployed in data centers today have tens of megabytes of L3 cache, so discussing servers with 1.5GB of cache seems almost unfathomable. The future is bright for the GB-era of server CPUs.
In 2022, AMD has already promised Genoa at 96 Cores so Milan-X is a mid-cycle expansion of the current line that makes it that much more interesting between now and Genoa. For the record, in this article, we never explicitly said there would be a Genoa-X, but it would be exciting to see AMD continue using its 3D V-Cache technology beyond Zen 3.
