AMD Milan-X: Performance and Power Consumption
Here we are going to take a look at two different aspects. First, what the technical computing/ simulation/ HPC community thinks about this. Second, what we have found testing the chips ourselves. Then, we are going to bring it together and simply discuss how you can think about Milan-X for your organization. To me, that is actually the more impactful exercise having seen our data and third-party data.

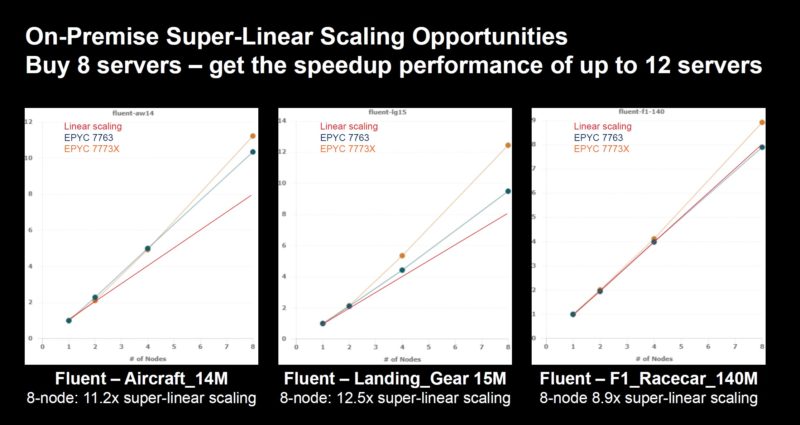

AMD was pushing the concept of Super-Linear scaling. The basic idea is that if you can scale-out and keep data warm and on cache next to cores, you can get application speedups that exceed just by adding additional CPUs.
This is something several ISV’s have shown, but it is not necessarily something that all applications will show, and not even close.
Normally we do not go into partner benchmarks, but the target market for Milan-X is one where we do not do a lot of benchmarking, and the applications are very expensive also require expertise to set up. Since the software vendors are experts in their applications, and these are big applications, we are going to show their thoughts on Milan-X.
Microsoft Azure HPC with AMD Milan-X
Microsoft Azure has a special HPC cloud. Perhaps the most shocking part when we covered AMD Milan-X previously was that Microsoft is taking the existing HBv3 instance hardware and swapping in Milan-X CPUs without changing the instance type. Microsoft saw such huge gains that it is doing a rip-and-replace upgrade of current-generation EPYC 7003 CPUs. That is perhaps the best testimonial to the impact Microsoft and its cloud HPC customers see from the new chips. Also, the F1_racecar_140m model you are going to see a lot of.
Here is Azure’s super-linear scaling due to a higher portion of hot data being cached in L3. This is using that racecar Ansys Fluent simulation.
Here is what the new chips will do to the Azure HBv3 instances. I think Microsoft upgraded its west coast site, then Europe, then east cost and it should all be complete for this launch or soon from what we have heard.
Again, up to 1.5GB of L3 cache (across two sockets) per system is awesome. We are in the Gigabyte Era of CPUs.
Siemens Simcenter STAR CCM+ with AMD Milan X

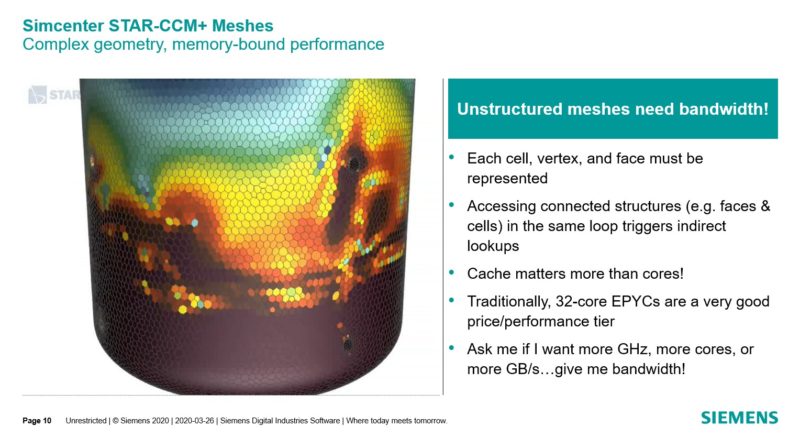

Siemens Simcenter STAR CCM+ is a multi-physics platform that is used in many engineering shops.
Engineers use it to see how systems will work without having to build physical prototypes.

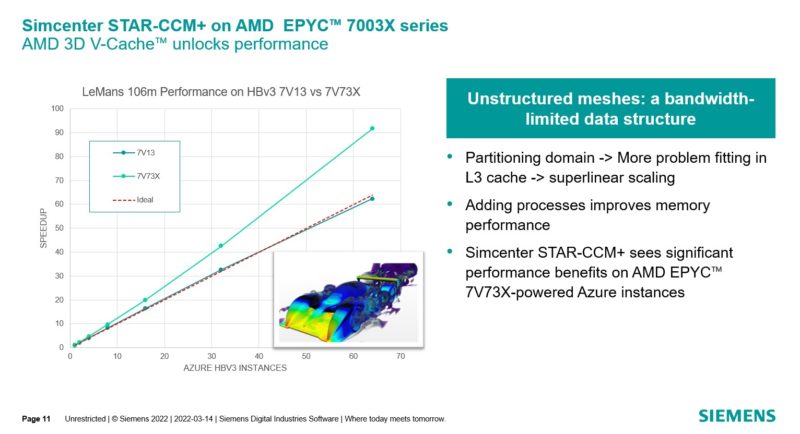

Here, on Microsoft Azure, Siemens is seeing super-linear scaling. We will quickly note that this is not an example on Microsoft’s slide above, nor on AMD’s, this is net-new.
We are going to see more of these, but Siemens is talking about the AMD EPYC 7V73X here. That is Microsoft Azure’s custom Milan-X SKU and that is why it is not one of the four SKUs we listed above.
Altair AcuSolve and Radioss with AMD Milan X
Altair application provider in the simulation space. AcuSolve is for problems like simulating airflow.

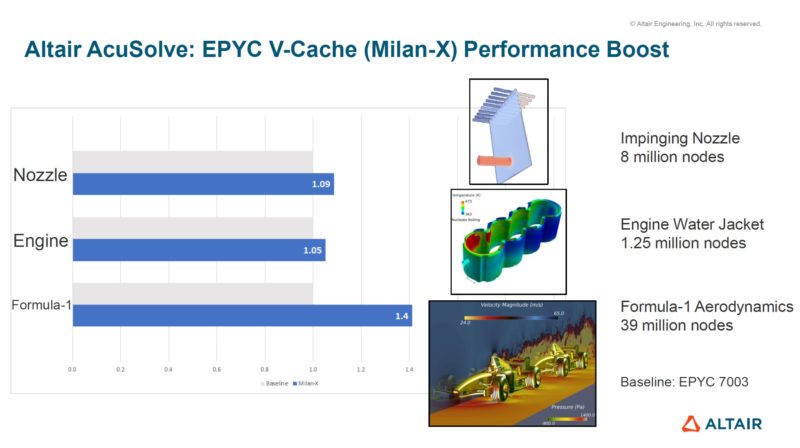

Altair shows that simply flipping the switch to enable 3D V-Cache (it can be disabled in BIOS) adds 5-40% more performance with AcuSolve.

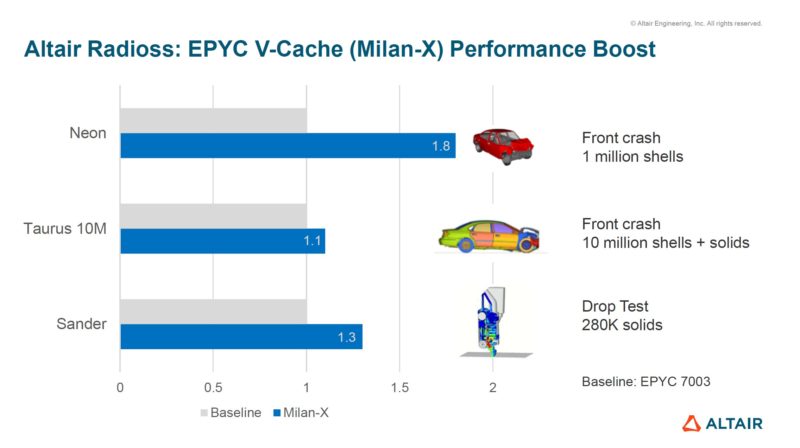

Bigger gains are with Altair Radioss for crash simulation.
Altair claims 10-80% increased performance.
For those wondering “Neon” is a lower complexity model of a Dodge Neon automobile. As a smaller model, more fits into the cache so there is an 80% speedup there. The Ford Taurus example is much larger, so less is being cached which is why that is a 10% speedup with the additional cache.
