AMD Milan-X: Impact on the SKU Stack

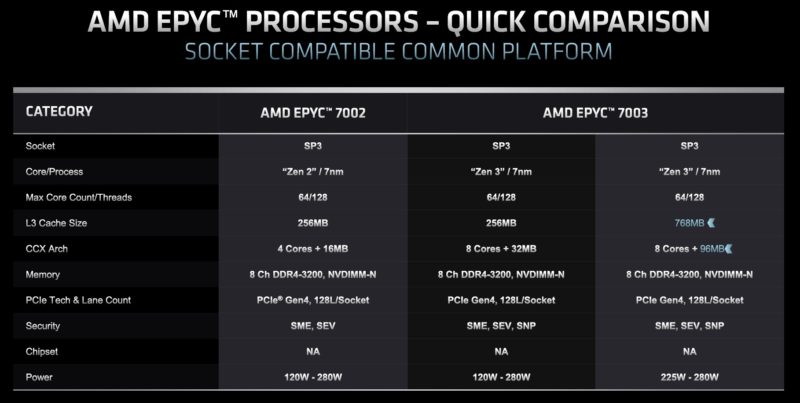

The key here is that the AMD EPYC 7003 family will have both standard Milan and Milan-X parts. Milan-X is not a replacement for Milan. We get higher-bin power consumption, but the big change is really just adding 8x 64MB 3D V-cache dies for 512MB of additional L3 cache versus standard Milan. These work in the same servers with a BIOS update. The servers just need to handle CPUs that are at the higher end of the EPYC 7003 series TDP range. AMD is using MB here, but one could easily say this is 0.5GB of additional L3 cache for 0.75GB total.

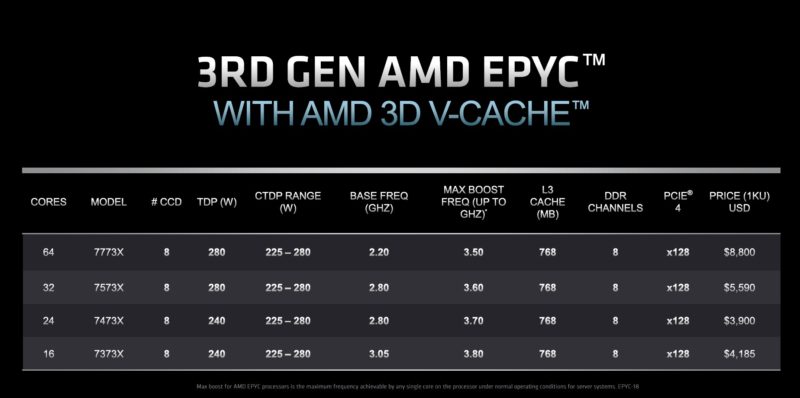

With Milan-X, we get four new chips ranging from 16 to 64 cores. It was slightly interesting that we did not get an 8-core part, but perhaps a chart in this section will show why. Also, these are not astronomically priced parts. We see relatively modest price increases, especially compared to what the price increase would be adding HBM to the package, although that is a different power/ performance/ capacity trade-off.

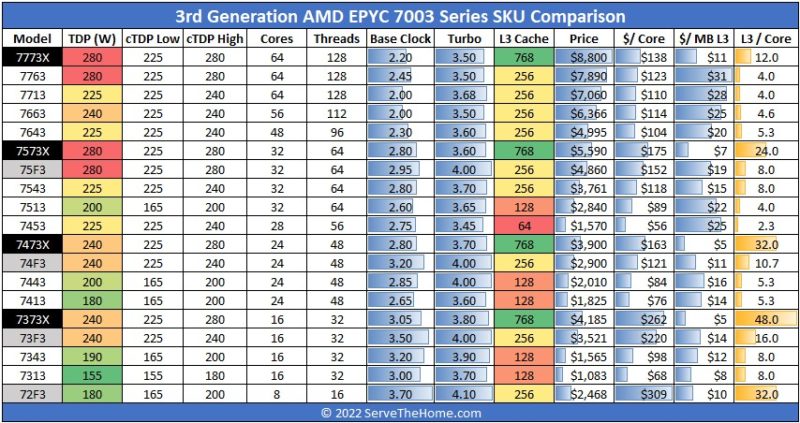

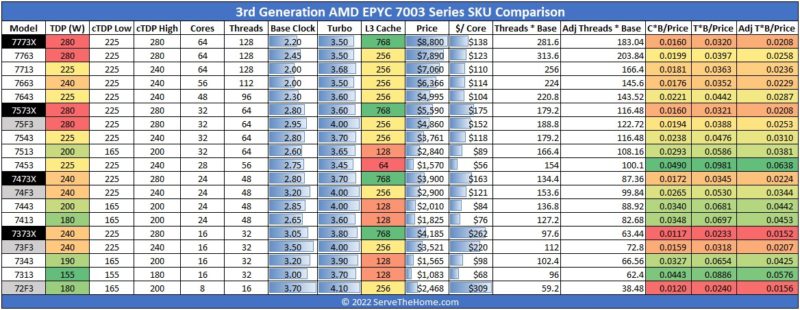

Taking a quick look at the basics, we can see the lineup, excluding single-socket “P” series parts. There are the mainstream parts, then the frequency optimized “F” SKUs, and now the Milan-X “X” SKUs. The F is one of the four digits while the X adds a character for some reason.

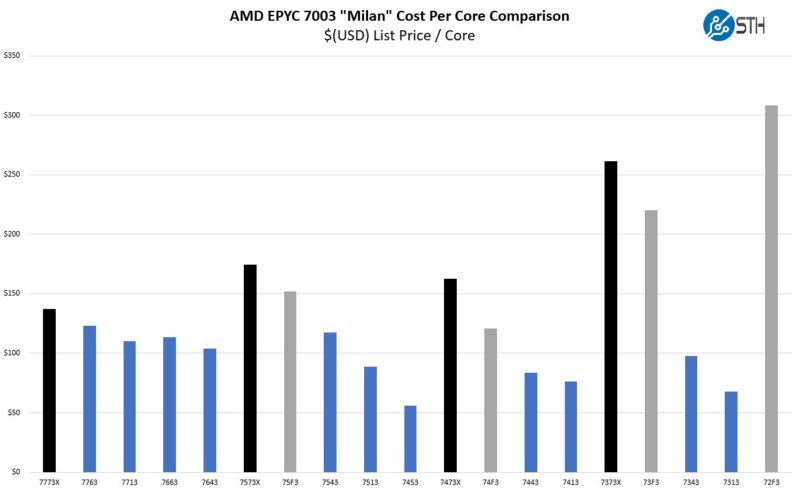

Taking a look at the pricing methodology, we can see that, save for the EPYC 72F3, the Milan-X family actually costs the most per core at each SKUs respective core count.
Not only do the cores end up costing more on Milan-X, but they also lose some clock speed for the power/ thermal headroom needed to accommodate the additional 3D V-Cache dies.

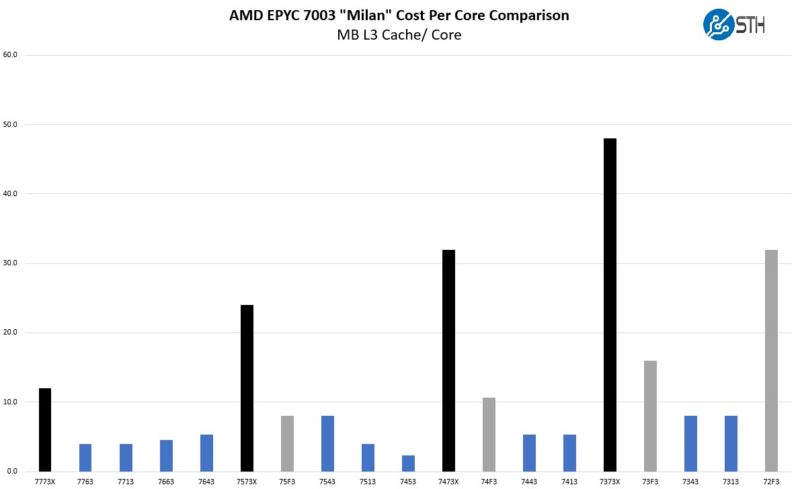

Things change when we look at cache metrics though. As we can see, we get a massive increase in the amount of cache per core. The EPYC 7373X is a 16-core part with 0.75GB of cache so it has 48MB of L3 cache per core. For some context, that is the same amount of cache as a 32-core Intel Xeon Platinum 8362. The 60MB top line in this chart is the total amount of cache on an Intel Xeon Platinum 8380 with its 40 cores. It is strange to think that AMD can have 32x the amount of L3 cache as Intel Xeon Ice Lake contemporaries.
We mentioned the 8-core EPYC 72F3 earlier. That chip has 256MB of L3 cache for eight cores so it has 32MB of L3 cache per core. Perhaps the reason we do not have a 3D V-Cache 8-core part is that the EPYC 72F3 was already in that range.

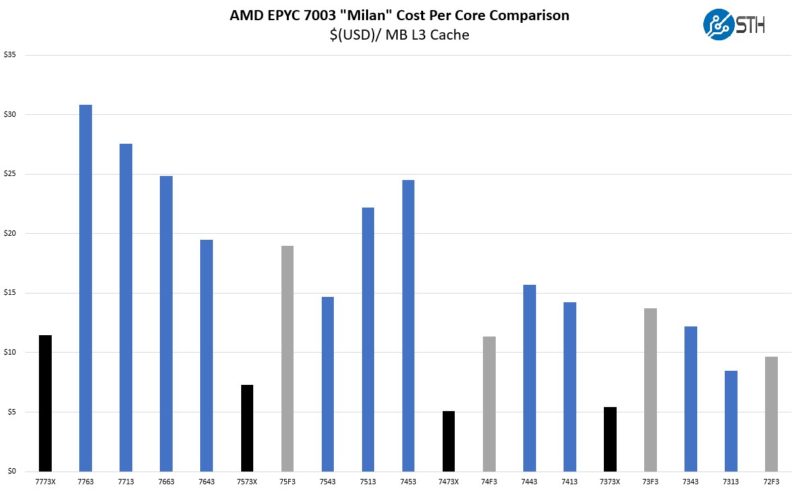

This additional quantity, means we effectively are getting a volume discount on cache (but again, paying more for cores.) Here is what a $/ MB of L3 cache chart looks like.
Again, the key to remember is that we get the same Zen 3 cores with Milan-X. We just trade ~10% clock speed and somewhat higher costs for 3x more L3 cache. That is a good mental model to use for these.
Next, let us get the performance and power consumption.
