Aivres KR6288 Internal Overview NVIDIA HGX H200 8 GPU
To many, this will look like a server. Instead, this houses the NVIDIA assembly inside the KR6288 on a slide-out subsystem.

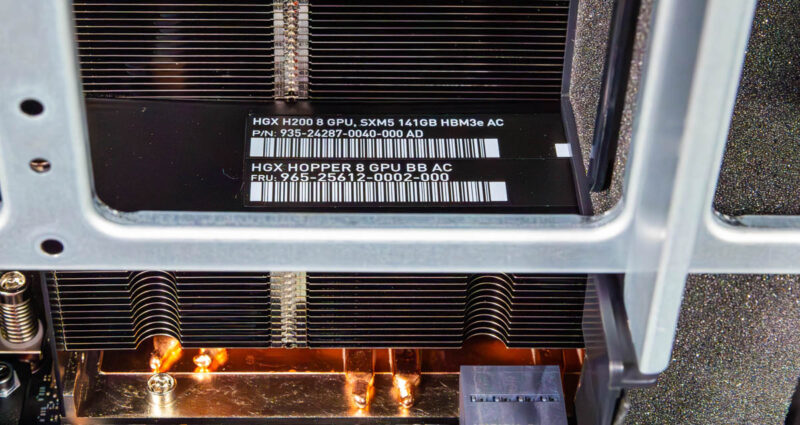

For part number aficionados, here is the NVIDIA HGX 8 GPU SXM5 141GB HBM3e AC (air-cooled) label.

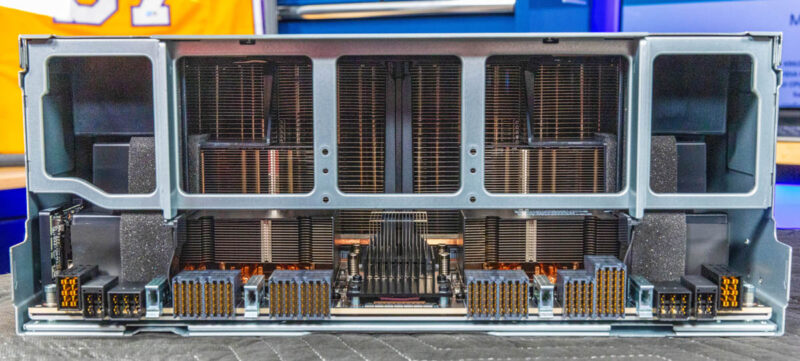

On the system-facing side, we see the high-density power and data connectors and a dense jungle of heatsinks.

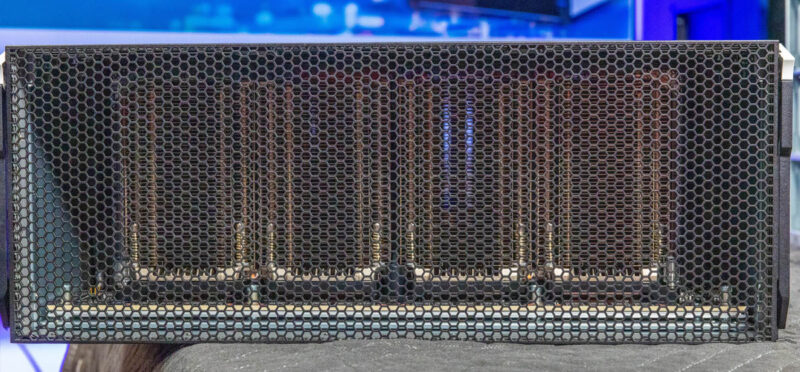

On the front side, we can see the huge heatsinks, which are free to accept cool airflow from the cold aisle.

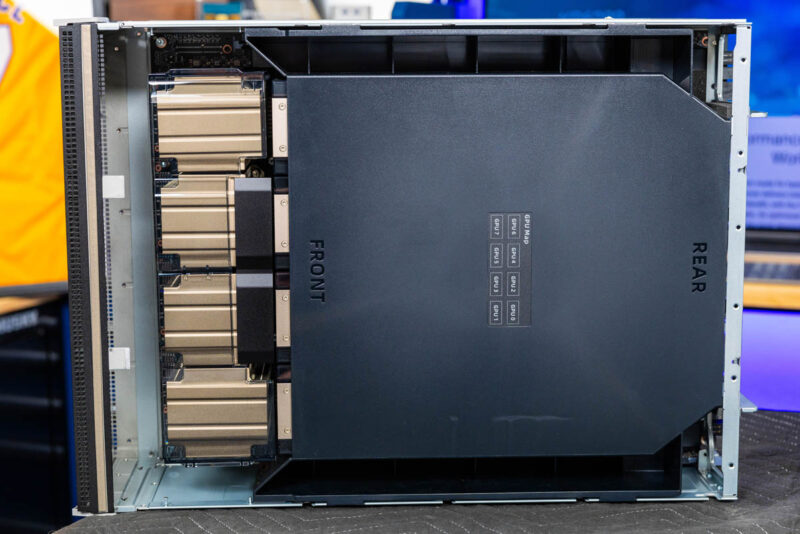

Taking off the metal top cover, there is an airflow guide.

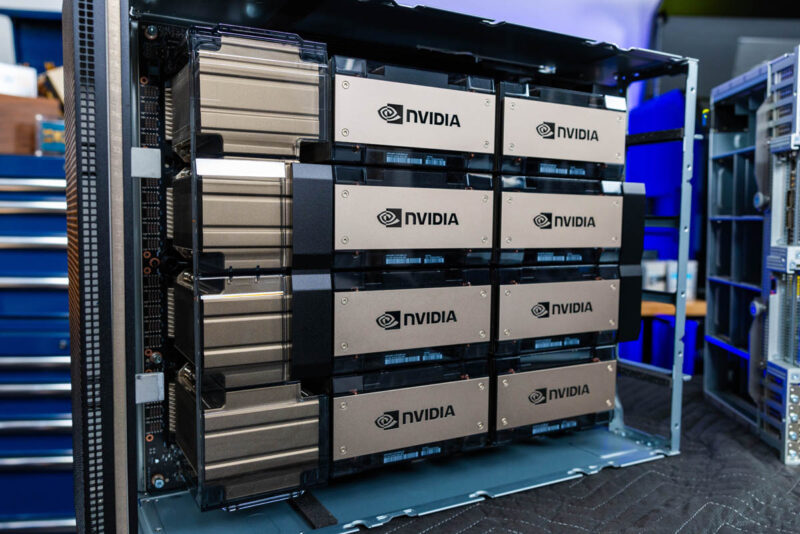

Once we take that off, we can see the eight NVIDIA GPUs.
If you are wondering about those four heatsinks that are not marked, they are for each of the NVLink Switches onboard. In this and previous generations of NVLink Switch HGX baseboards, the switches are on one side of the baseboard. With the NVIDIA HGX B200 generation, the number will reduce from four to two, and the switches will move to the center of the GPUs. That helps shorten the high-speed traces through the baseboard.

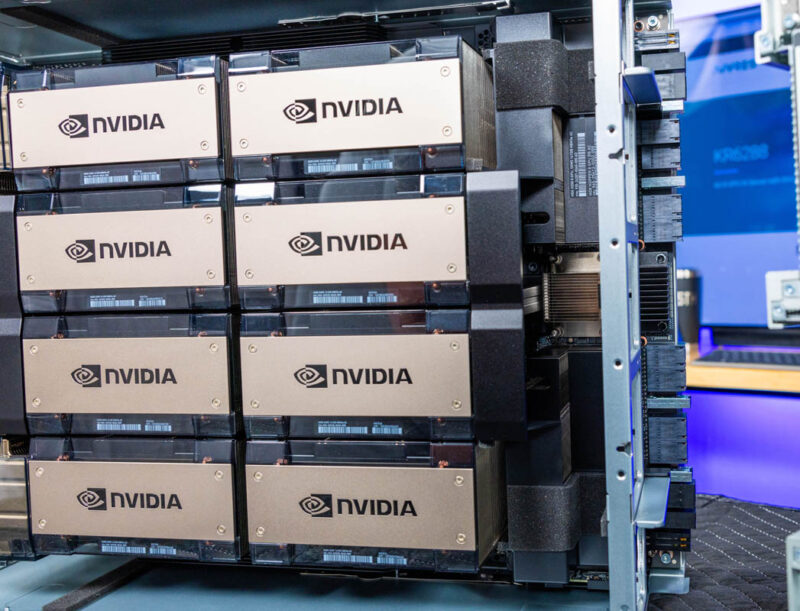

There are some other heatsinks on the connector side. These are usually for things like the Astera Labs PCIe retimers used on the board.
Next, let us get inside the system to see how it works.
